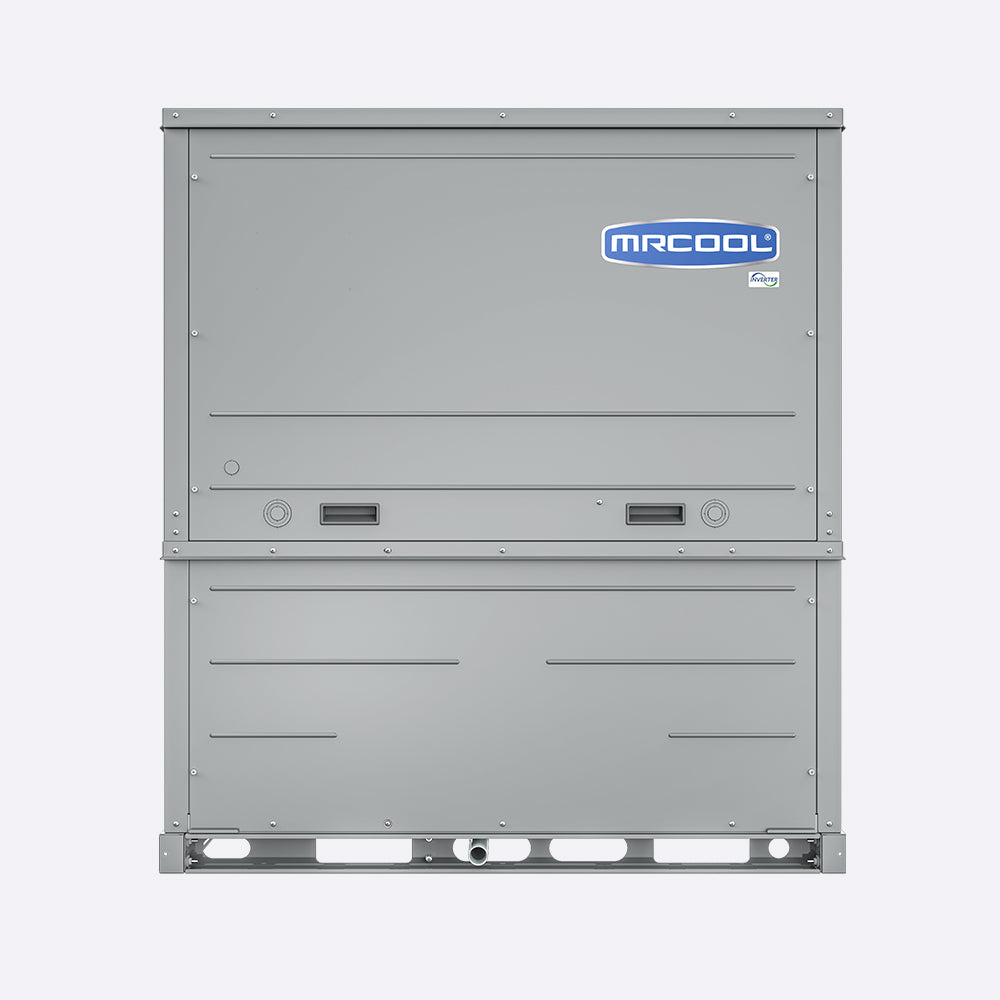

MRCOOL® 24k BTU 18 SEER2 DC Inverter Packaged Heat Pump-R410A
2 Ton | SEER2 17.8 | R410A | 208-230V
- 24000 BTU cooling capacity
- Up to 17.8 SEER2 rated efficiency
- Inverter Rotary compressor
- Uses R410A refrigerant
Key Specifications
Product Overview
Experience superior heating and cooling along with reduced utility costs and less environmental impact with the MRCOOL® DC Inverter Package Heat Pump. Without relying on fossil fuels to heat or cool your home, this energy-efficient ducted system provides comfort in one conveniently packaged outdoor unit. The variable speed DC compressor aids in the efficiency by generating less power loss, and since the motor doesn’t turn on and off regularly, the unit operates at a much lower noise level. This results in the room temperature being continuously regulated and adjusted to meet individual preferences. The adjustable speeds of the compressor and DC motor create a wide range of cooling and heating operation between -22°F to 125°F. The unit offers a flexible air return from either the side or the bottom. This allows customers to install the system with a traditional installation method or on a rooftop. There are also optional heat kits available if needed. Not only does the package unit quickly detect indoor and outdoor temperatures to adapt to load demands faster, but it is also equipped with intelligent defrosting technology that can judge frost conditions and improve heating performance during the winter. Feel confident in your investment of the MRCOOL® DC Inverter Package Heat Pump thanks to its 10 year warranties on labor, parts, and the compressor–all of which require no tedious registration process.
Features
- Wired thermostat included
- Inverter Technology
- Energy Efficient
- Flexible air return
- Fast heating & cooling
- Intelligent defrosting
- 10 year labor warranty included
- Conforms to UL Std. 60335-1, 60335-2-40
- Certified to CSA Std. C22.2 No. 60335-1, 60335-2-40
- Intertek #3097844
Additional specifications
| UPC | 840255582308 |
|---|---|
| Series | Universal Series Inverter Packaged Heat Pump |
| Refrigerant charge (oz) | 176.4 |
| Heating capacity (BTU/h) | 24000 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 35 |
| Max fuse / breaker (A) | 40 |
| Inverter | DC |
| Filter type | Washable Aluminum |
| Filter size | 28x9x3/5 in |
| Sound level high (dBA) | 73 |
| Min ambient cooling (F) | 23 ~ 125 |
| Min ambient heating (F) | -22~75.2 |
| Aux heater included | no |
| Aux heater available | yes |
| Wi-Fi capable | no |
| AHRI certified | yes |
| ENERGY STAR certified | yes |
| ETL listed | yes |
| Parts warranty (years) | 10 years |
| Compressor warranty (yrs) | 10 years |
| Shipping W x H x D (in) | 35.94 x 50.81 x 44.63 |
| Shipping weight (lbs) | 545 |
Documents
Technical Specifications
Performance
| System Type | Package Heat Pump |
|---|---|
| Capacity | 24000 BTU |
| Tonnage | 2 Ton |
| Compressor / Stages | Inverter Rotary |
| SEER2 | 17.8 |
| EER2 | 11 |
| HSPF2 | 8.8 |
| Sound Level | 63 dBA |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R410A |
Physical & Certifications
| Dimensions (W x H x D) | 44 x 49.25 x 35.43 |
|---|---|
| Weight | 523 lb |
