MRCOOL

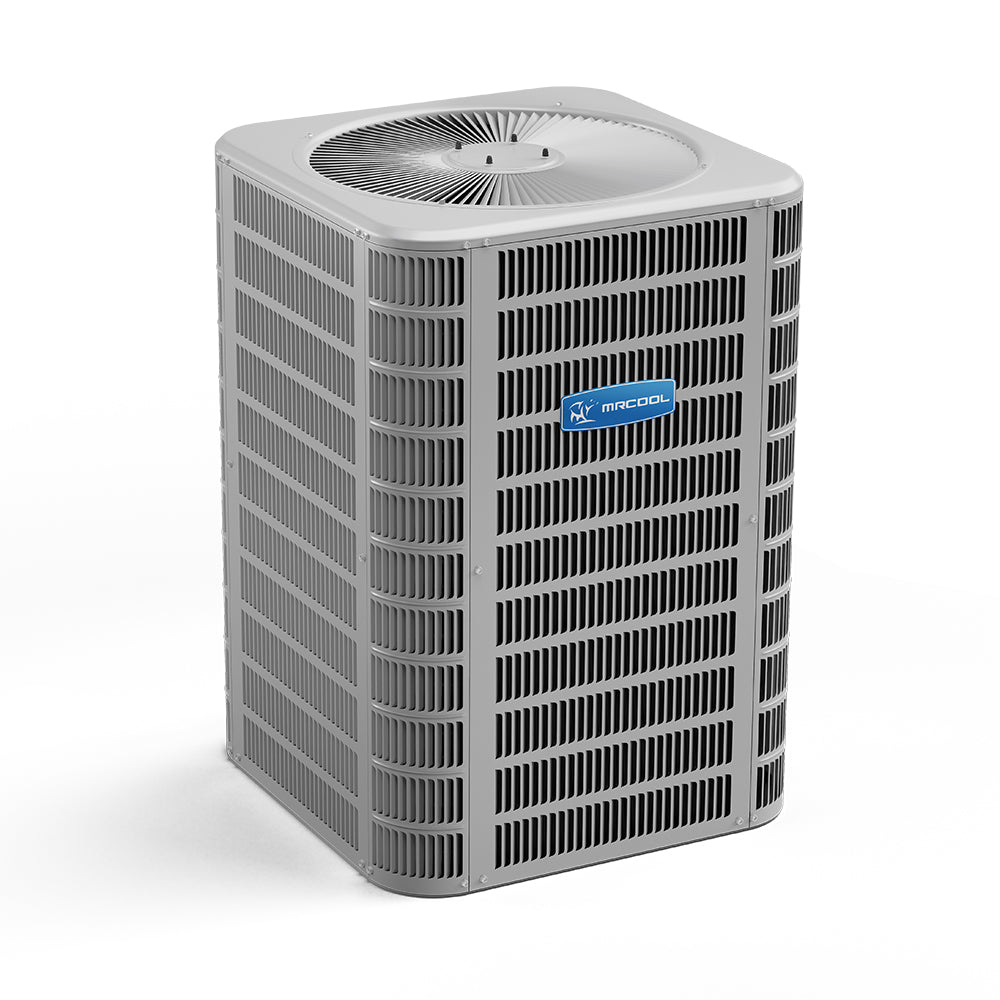

MRCOOL 2 Ton up to 17 SEER Split System A/C Condenser
2 Ton | R-410A | 208-230V
- 2 Ton capacity
- Uses R-410A refrigerant
- Runs on 208-230V power
Key Specifications
Product Overview
Looking for an efficient way to cool your home and lower your energy bills? MRCOOL's Split System A/C Condensers offer a solution. This 2 ton condenser, which operates on 208-230 volt and uses R410-A refrigerant, can achieve a seasonal energy efficiency rating of up to 17 SEER when paired with other MRCOOL products. Keep in mind that this unit is designed for cooling only and does not function as a heat pump. Invest in a MRCOOL condenser to experience maximum comfort and energy savings.
Features
- CoolGuard total corrosion protection technology designed coil
- Corner-mounted controls for easy service
- Full metal louvered construction to protect the coil/ hail protection
- Factory installed high pressure switch
- Thread-on pressure switches for simple, quick replacement
- 10 year limited warranty on compressor
- Charged for 15 feet of line set
- Fan orifice for smoother airflow and sound level reduction
- Lanced fins for maximum heat transfer
- Every coil factory tested for leak proof construction
- All units ETL and ETLC approved and AHRI Certified
- Internally protected against high temperature motor overload conditions
Additional specifications
| UPC | 840255553155 |
|---|---|
| Series | Signature Split Air Conditioner |
| Refrigerant charge (oz) | 82 |
| SEER | Up to 17 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 15.4 |
| Max fuse / breaker (A) | 20 |
| AHRI certified | Yes |
| ENERGY STAR certified | Yes |
| Shipping weight (lbs) | 170 |
Documents
Technical Specifications
Performance
| System Type | Split System AC Condensers |
|---|---|
| Tonnage | 2 Ton |
| Sound Level | 75 dBA |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-410A |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 28.25 x 37.25 x 28.25 |
|---|
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
