MRCOOL

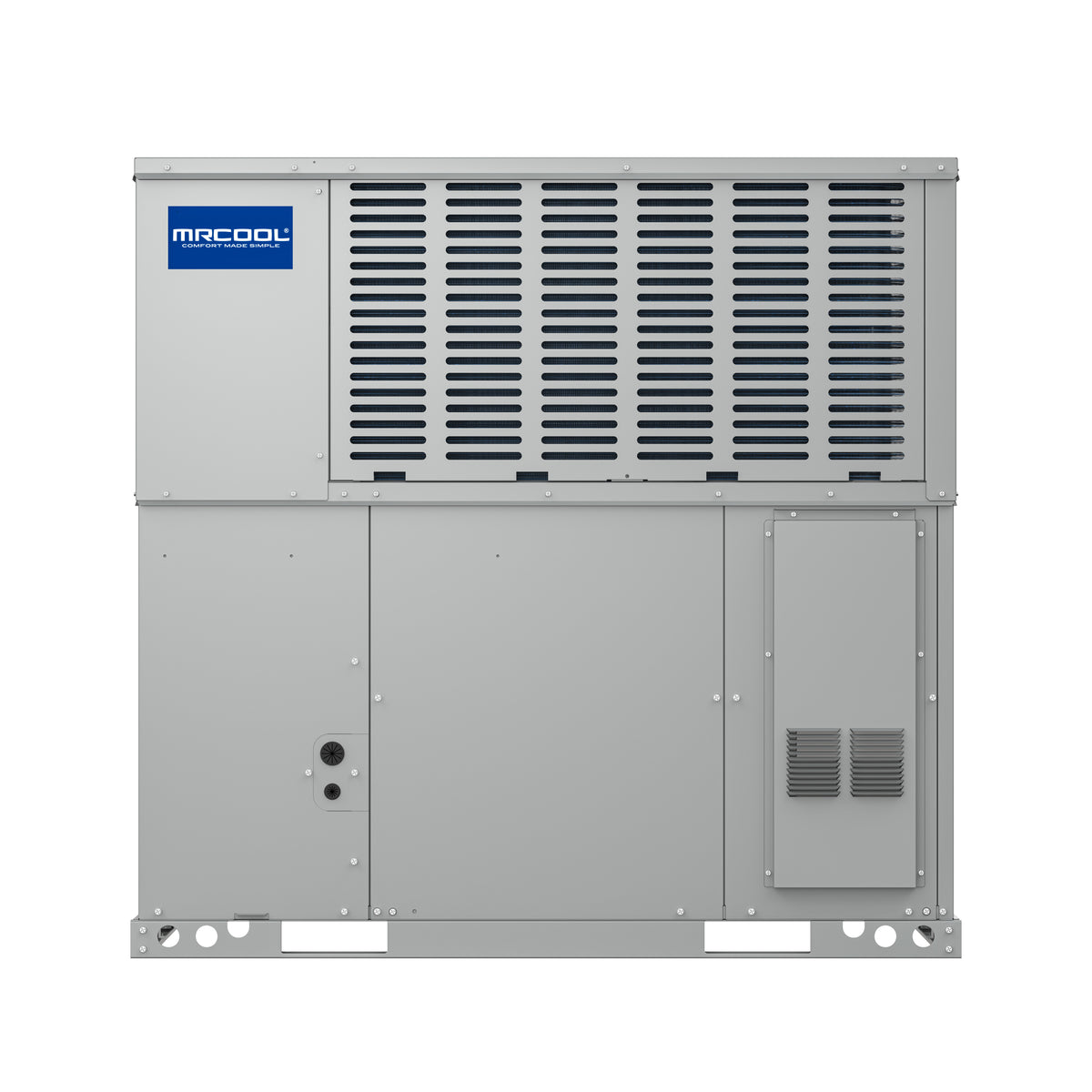

MRCOOL 2 Ton 60K BTU Downflow/Horizontal VersaPro® Packaged A/C & Gas - R454B
2 Ton | SEER2 13.4 | R-454B | 208/230V
- 22800 BTU cooling capacity
- Up to 13.4 SEER2 rated efficiency
- 81 AFUE heating efficiency
- 1 compressor
Key Specifications
Product Overview
The MRCOOL® VersaPro® Series 24K 60,000 BTU Gas Package Unit is a versatile all-in-one HVAC solution built to deliver dependable climate control. Combining a high-efficiency 13.4 SEER2 air conditioner with an 81% AFUE gas furnace, this hybrid system ensures powerful cooling in summer and reliable heating in winter, offering homeowners a cost-effective upgrade that improves comfort while reducing energy costs.
This model uses R-454B refrigerant, a next-generation formula with a significantly lower global warming potential than previous refrigerants, making it an environmentally responsible choice without compromising performance.
Durability is a key feature of the VersaPro® 24K 60,000 BTU. A power-painted galvanized steel cabinet protects the system from weather damage, rust, and wear, while a horizontal discharge design ensures quieter operation. Inside, aluminum tubing with microchannel coils provides excellent heat transfer and corrosion resistance, reducing maintenance and extending system life.
High-efficiency compressors work in tandem with an ECM blower motor for smooth, consistent performance. This pairing enhances temperature regulation, optimizes airflow, lowers energy usage, and minimizes wear. Integrated safety controls monitor high/low pressure and coil temperature variations, preventing damage and maintaining optimal performance even in extreme weather.
Designed for flexible installation, the unit supports both horizontal and downflow configurations. Its compact footprint is perfect for limited spaces, while a convenient access panel simplifies maintenance. An included LP conversion kit makes switching to propane easy.
Backed by a 10-year limited parts warranty and a lifetime heat exchanger warranty, the VersaPro® 24K 60,000 BTU is a smart investment in comfort, efficiency, and long-term reliability.
Additional specifications
| UPC | 840255588713 |
|---|---|
| Series | VersaPro® R-454B Package Gas |
| Refrigerant charge (oz) | 42 |
| Input (BTU/h) | 60,000 |
| Output (BTU/h) | 48,000 |
| Airflow (CFM) | 800 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 18.8 |
| Max fuse / breaker (A) | 25 |
| Inverter | No |
| Blower motor type | ECM |
| Blower motor HP | 1/2 |
| Blower speeds | 4 |
| Metering device | Piston |
| Drain connection (in) | 3/4 |
| Gas connection (in) | 1/2 |
| Min ambient cooling (F) | 64.4 |
| AHRI certified | Yes |
| UL listed | Yes |
| ETL listed | Yes |
| Parts warranty (years) | 10 Year |
| Heat exchanger warranty | Lifetime |
| Shipping W x H x D (in) | 51.44 x 37 x 48.625 |
| Shipping weight (lbs) | 443 |
Documents
- Specification sheet (PDF)
- Installation manual (PDF)
- Service manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Packaged Gas |
|---|---|
| Capacity | 22800 BTU |
| Tonnage | 2 Ton |
| Compressor / Stages | 1 |
| SEER2 | 13.4 |
| EER2 | 11 |
| AFUE | 81 |
| Sound Level | 79 dBA |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
| Fuel Type | Natrual Gas / Propane |
Physical & Certifications
| Dimensions (W x H x D) | 50.69 x 35.06 x 46.44 |
|---|---|
| Weight | 422 lb |
| Color / Finish | Grey |
