Ameristar by Trane

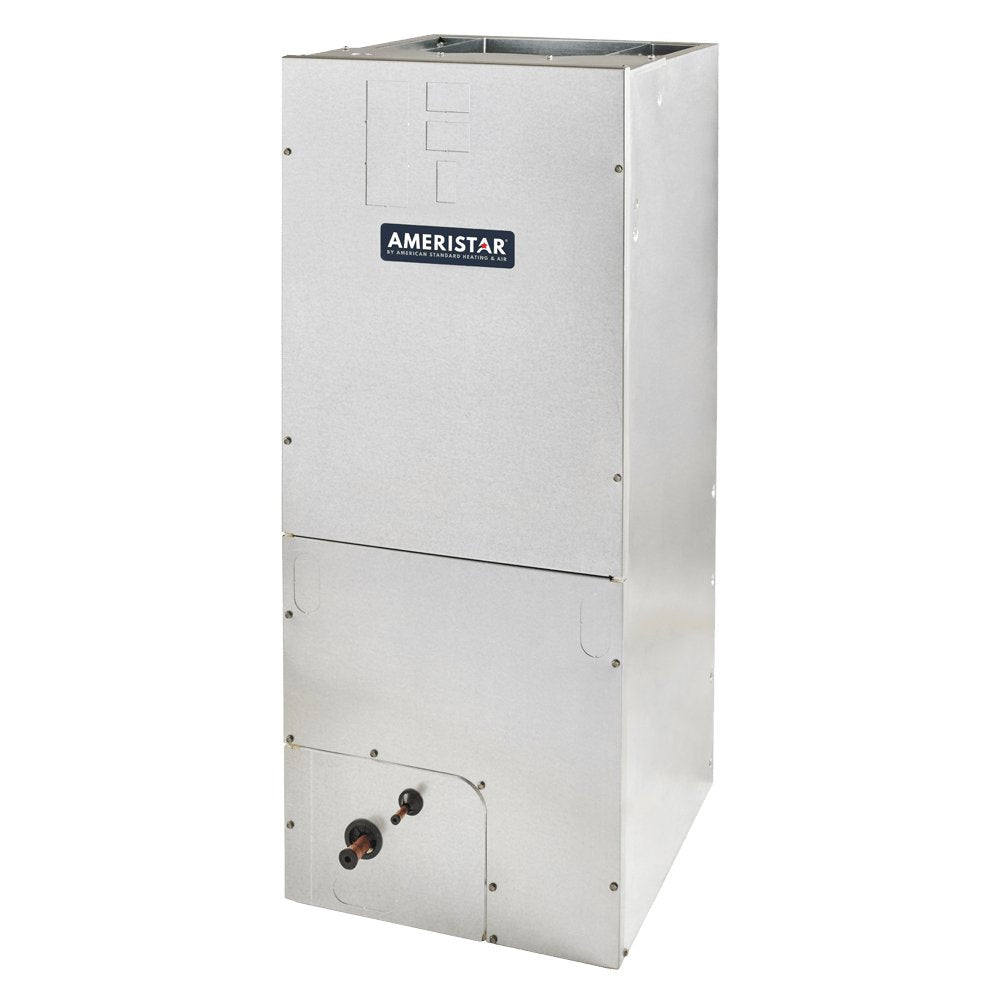

3.0 Ton Convertible Air Handler, 14.3 SEER, A4AH4E36A1C30A
3.0 Ton | R-410A | 208-230V
- 3.0 Ton capacity
- Single-Speed compressor
- Uses R-410A refrigerant
- Runs on 208-230V power
Key Specifications
Product Overview
Model: A4AH4E36A1C30A
A4AH4E24A Specification Manual
Product Description
Ameristar heat pumps are designed with high-quality, durable components, and tested all-aluminum coils to ensure long-lasting performance and reliability. Air Conditioners and Heat Pumps: When the mercury is soaring, Ameristar performs like a champ. Our air conditioners are equipped with high-quality components and come in a full array of cooling capacities, suitable for any size space. Even on the hottest, stickiest days, you can be confident that you’ll be cool, dry, and comfortable throughout your home.
Warranty
- Standard warranties apply.
- Standard parts, residential: ALL PARTS - 5 YEARS PARTS
- Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
- Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
- Registered parts, residential: ALL PARTS - 10 YEARS PARTS
- Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS
- Registered parts, commercial: ALL PARTS - 5 YEARS PARTS
Product information
Technical Details
| Model | A4AH4E36A1C30 |
|---|---|
| UPC | 647535893556 |
| Product Height (in) | 51.4 |
| Configuration | Floor Mounted |
| Product Length (in) | 21.13 |
| Air Flow Direction | Downflow, Horizontal, Upflow |
| Product Width (in) | 23.5 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 3 Ton |
| Electrical Phase | 1-Phase |
| Heat Strip Compatibility | Up to 15 kW |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 155.000000 |
| Refrigerant | R-410a |
| Suction Line Size | 7/8 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
DOCUMENTS
Technical Specifications
Performance
| System Type | Convertible Air Handler |
|---|---|
| Application | Residential |
| Tonnage | 3.0 Ton |
| Compressor / Stages | Single-Speed |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-410A |
| Fuel Type | Electric |
Shipping & Delivery
Manufacturer Warranty
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
