MRCOOL® DIY 4th Gen Multi-Zone 12k Ceiling Cassette with 25ft DIYPro Cable
208-230V
- 12000 BTU cooling capacity
- Runs on 208-230V power
Key Specifications
Product Overview

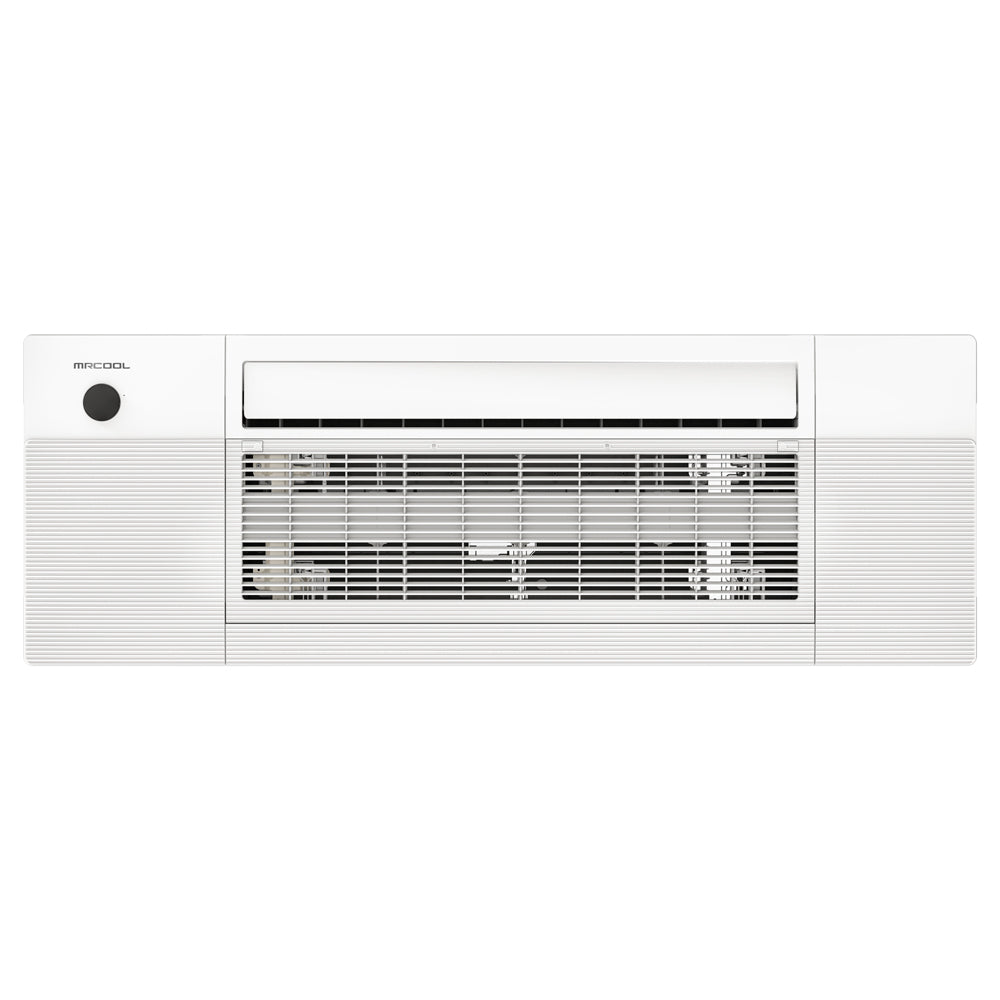

With an easy, low profile installation, the MRCOOL® DIY® Series OuttaSight® 12k BTU Ceiling Cassette provides efficient heating and cooling that is perfect for any space, making it one of the most versatile ceiling units ever. The OuttaSight® cassette is offered in multi-zone options. Unlike other ceiling cassettes, the MRCOOL® DIY® Series OuttaSight® 12k BTU Ceiling Cassette doesn’t have strict installation requirements in less than ideal locations and can be recessed between all types of joists on 16 inch center, including pre-manufactured I-joists. Since it doesn’t require ductwork or wall space, it is perfect for both new construction or retrofits. The OuttaSight® works with the MRCOOL® DIY® Quick Connect® line set which comes precharged with R-410A refrigerant. In addition to the many operational modes and quiet operation, the cassette features swing technology and an Elevation function that lowers the filter panel for easy maintenance of the air filter. All of these features can be controlled with the included remote. For peace of mind, the cassette offers a 7-year compressor warranty and 5-year parts warranty.
Features
- Fits between 16" Ceiling Joists
- Featuring our easy access, elevating filter that can be lowered to a maximum of 4.9ft from the cassette.
- Low Profile Installation
- Pair with your DIY 4th gen Multi-Zone system
- Designed to work with current and future joist standards, it can be recessed between all types of joists on 16 inch center - including pre-manufactured I-joists.
Additional specifications
| UPC | 840255522205 |
|---|---|
| Series | DIY OuttaSight |
| Heating capacity (BTU/h) | 12000 |
| SEER | Up to 20.75 |
| EER | Up to 12.5 |
| HSPF (region IV) | 11 |
| HSPF (region V) | 8.6 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 3 |
| Max fuse / breaker (A) | 15 |
| Blower motor HP | 620/560/450/350 |
| Blower speeds | 4 |
| Filter type | Reusable |
| Sound level low (dBA) | 26 |
| Sound level high (dBA) | 43 |
| Wi-Fi capable | Yes |
| Remote included | Yes |
| Parts warranty (years) | 5-year Parts |
| Compressor warranty (yrs) | 7-year Compressor |
| Shipping W x H x D (in) | 57.60 x 22.64 x 22.48 |
| Shipping weight (lbs) | 89 |
Documents
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Mini-Split |
|---|---|
| Capacity | 12000 BTU |
| Sound Level | 41/35 dBA |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
Physical & Certifications
| Dimensions (W x H x D) | 50.31 x 8.98 x 13.19 |
|---|---|
| Weight | 45.42 lb |
Shipping & Delivery
Installation video
Published by MRCOOL. Watch the full walkthrough before you start, and follow the installation manual for this model — the video is a guide, not a substitute for it.
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
