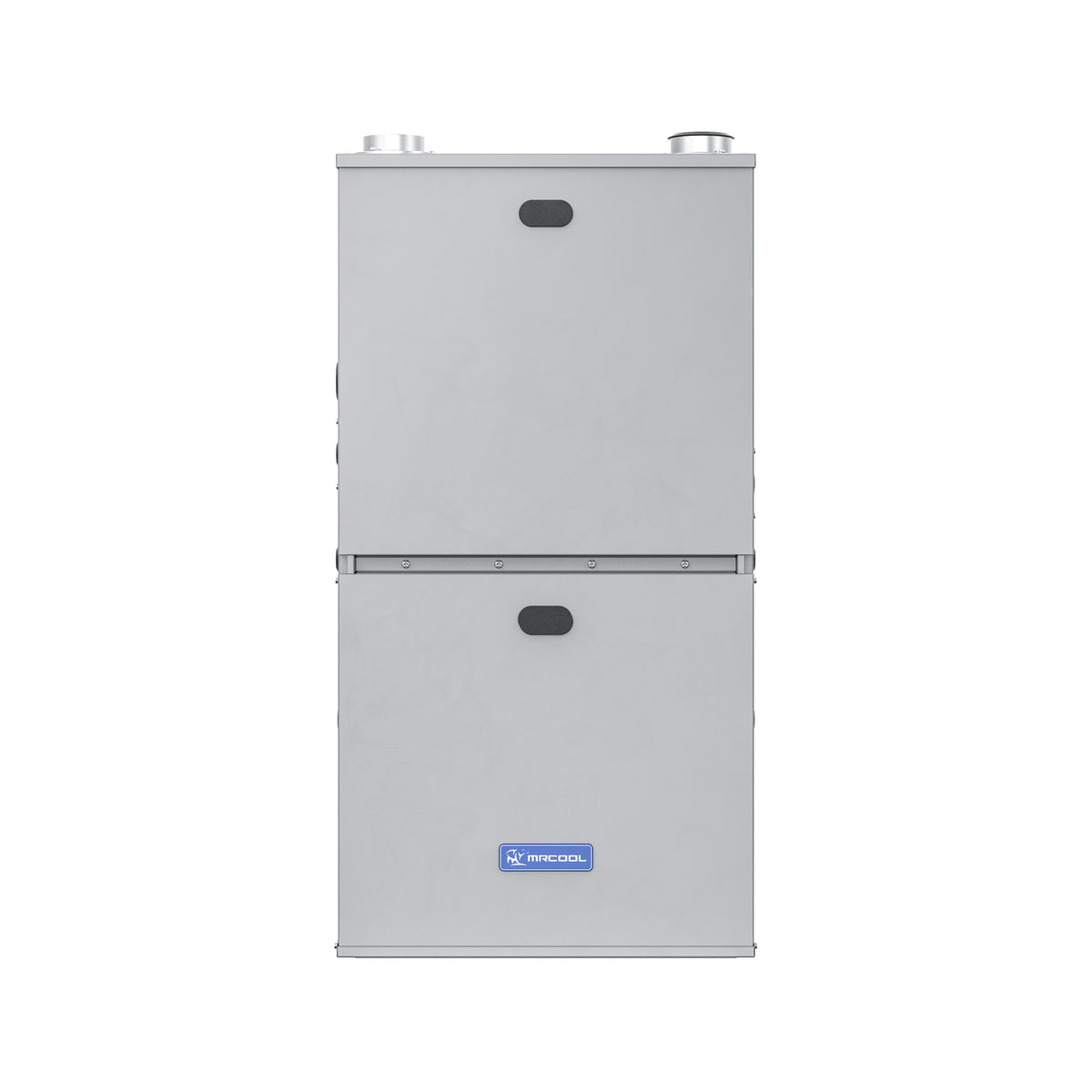

MRCOOL® VersaPro® 80k BTU 96% AFUE Gas Furnace
115V
- 96 AFUE heating efficiency
- Two compressor
- Runs on 115V power
Key Specifications
Product Overview
Even the harshest winters stand no chance against the efficient and quiet-running MRCOOL® VersaPro® 80k BTU 96% AFUE Gas Furnace. Thanks to its two-stage, consistent torque DC motor and 96% AFUE rating, you can relax knowing it's cutting down on your utility bills. Built with an aluminized steel tubular heat exchanger and stainless steel secondary heat exchanger, this furnace ensures both durability and reliability. Its compact design allows for easy installation, even in tight spaces. The furnace is designed for multi-position installation in upflow or horizontal configurations, with convenient left or right connections for gas or electric service. It also features a removable bottom panel for side or bottom return applications, simplifying both maintenance and installation processes. Additionally, it can be easily converted to propane with an optional LP kit. Being AHRI certified and ETL listed ensures the furnace meets rigorous quality and performance standards. This furnace comes with a 10-year parts warranty and a lifetime warranty on the heat exchanger, providing added peace of mind.
Features
- Intertek Cert: 3124627
- Filter Size: Side Return: 16x25x1 Bottom Return: varies on furnace casing width 14x25 16x25 20x25 24x25
- Quiet Operation
- Superior Performance
- Durable Build & Finish
- Optional LP Kit
- Multi-Position Application
- 96% AFUE
- Two Stage
- Energy Efficient
- Compact Design
Additional specifications
| UPC | 840255582643 |
|---|---|
| Series | VersaPro 96% Gas Furnace |
| Configuration | Upflow or Horizontal |
| Input (BTU/h) | 80000 |
| Output (BTU/h) | 76000 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 8 |
| Max fuse / breaker (A) | 15 |
| Blower motor type | ECM |
| Blower motor HP | 3/4 |
| Filter type | replaceable |
| AHRI certified | Yes |
| ETL listed | Yes |
| Parts warranty (years) | 10 Years |
| Heat exchanger warranty | Lifetime |
| Shipping W x H x D (in) | 20.00 x 40.35 x 31.02 |
| Shipping weight (lbs) | 152 |
Documents
- Specification sheet (PDF)
- Installation manual (PDF)
- Service manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Gas Furnace |
|---|---|
| Compressor / Stages | Two |
| AFUE | 96 |
Electrical & Fuel
| Voltage | 115V |
|---|---|
| Phase | Single Phase |
| Fuel Type | Natural/Propane Gas |
Physical & Certifications
| Dimensions (W x H x D) | 17.52 x 33.74 x 28.74 |
|---|---|
| Weight | 139.5 lb |
| Color / Finish | Gray |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
