MRCOOL

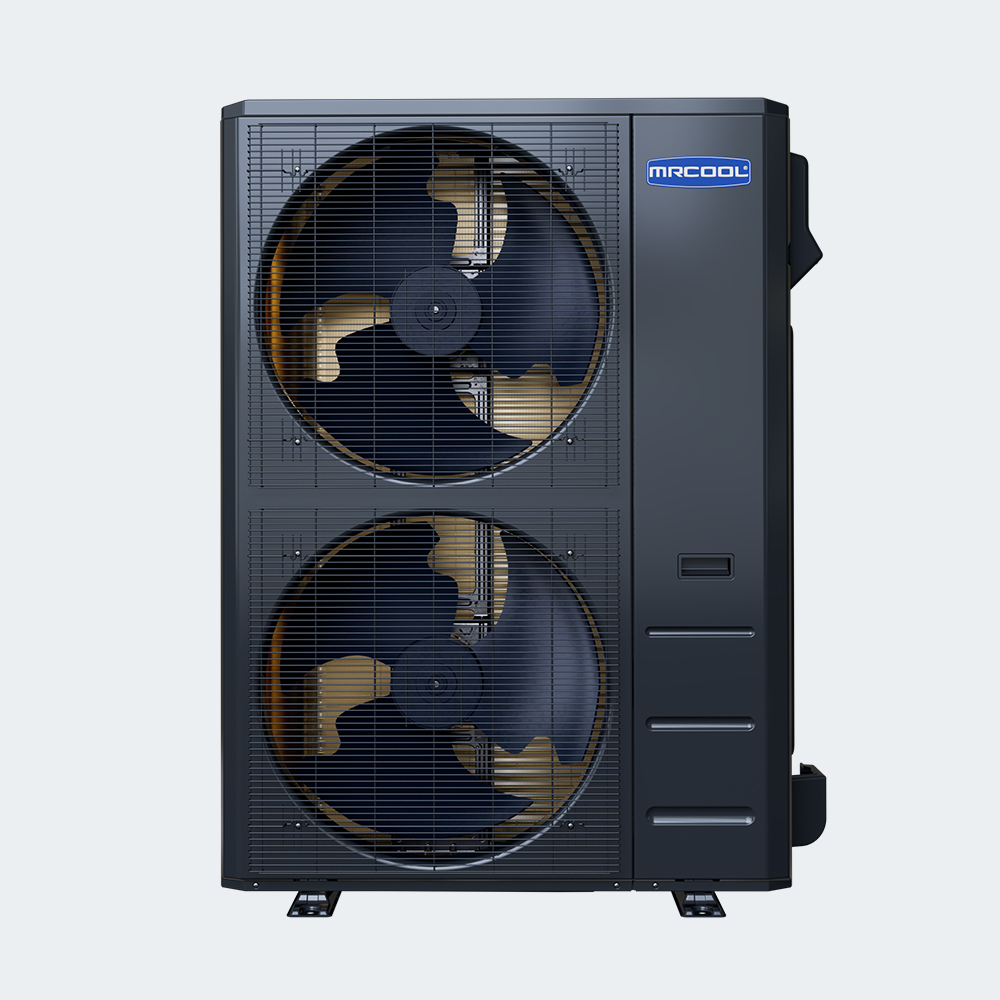

MRCOOL Universal Series Heat Pump Inverter Condenser
5 Ton | SEER2 Up to 17.5 | R-454B | 208/230V
- 54000 BTU cooling capacity
- Up to Up to 17.5 SEER2 rated efficiency
- Twin-Rotary compressor
- Uses R-454B refrigerant
Key Specifications
Product Overview
The MRCOOL® Universal® Series 60K DC Inverter Heat Pump Condenser delivers powerful, energy-efficient performance in all climates. Whether you’re facing sub-zero winter temperatures or peak summer heat, this high-capacity unit maintains strong, consistent airflow and dependable comfort throughout the year. With an impressive 17.5 SEER2 efficiency rating, it’s designed to reduce energy usage without sacrificing performance—making it an excellent choice for large residential spaces or demanding HVAC applications.
Designed with flexibility and ease in mind, installation is fast and streamlined—especially when paired with the optional MRCOOL® NO-VAC® Quick Connect® line set (sold separately). This pre-charged, sealed line set eliminates the need for vacuuming or flaring, cutting installation time, labor costs, and the risk of error. Its compact footprint also allows for flexible placement in areas with limited outdoor clearance, making it ideal for both new builds and retrofit projects.
At the core of this system is advanced DC inverter technology, which enables the condenser to adjust its output continuously based on your home’s heating or cooling needs. This eliminates the frequent cycling common with traditional systems, resulting in quieter operation, greater energy efficiency, and less wear on components—helping extend the lifespan of the unit.
Whether you’re upgrading from an outdated system or planning a new installation, the MRCOOL® Universal® Series 60K Condenser offers exceptional performance, energy savings, and dependable comfort. It’s backed by a 10-year parts warranty and a 2-year limited labor warranty for added peace of mind.
Additional specifications
| UPC | 840255587914 |
|---|---|
| Series | Universal R-454B |
| Refrigerant charge (oz) | 183.42 |
| Heating capacity (BTU/h) | 55000 |
| HSPF2 (region V) | 7.7 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 40 |
| Max fuse / breaker (A) | 40 |
| Inverter | DC |
| Metering device | EXV |
| Max line set length (ft) | 246 |
| UL listed | Yes |
| ETL listed | Yes |
| Parts warranty (years) | 10 Years |
| Shipping W x H x D (in) | 43.11 x 58.27 x 19.49 |
| Shipping weight (lbs) | 275.13 |
Documents
- Installation manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Universal Series Heat Pump |
|---|---|
| Capacity | 54000 BTU |
| Tonnage | 5 Ton |
| Compressor / Stages | Twin-Rotary |
| SEER2 | Up to 17.5 |
| EER2 | Up to 12 |
| HSPF2 | 9.5 |
| Sound Level | 64.5 dBA |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 37.48 x 52.48 x 16.34 |
|---|---|
| Weight | 242.95 lb |
| Color / Finish | Dark Grey |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
