MRCOOL
MRCOOL® Advantage series 24K BTU Heat Pump Condenser 230 volt
SEER2 18 | R-410A | 208-230V
- 24000 BTU cooling capacity
- Up to 18 SEER2 rated efficiency
- Uses R-410A refrigerant
- Runs on 208-230V power
Key Specifications
Product Overview

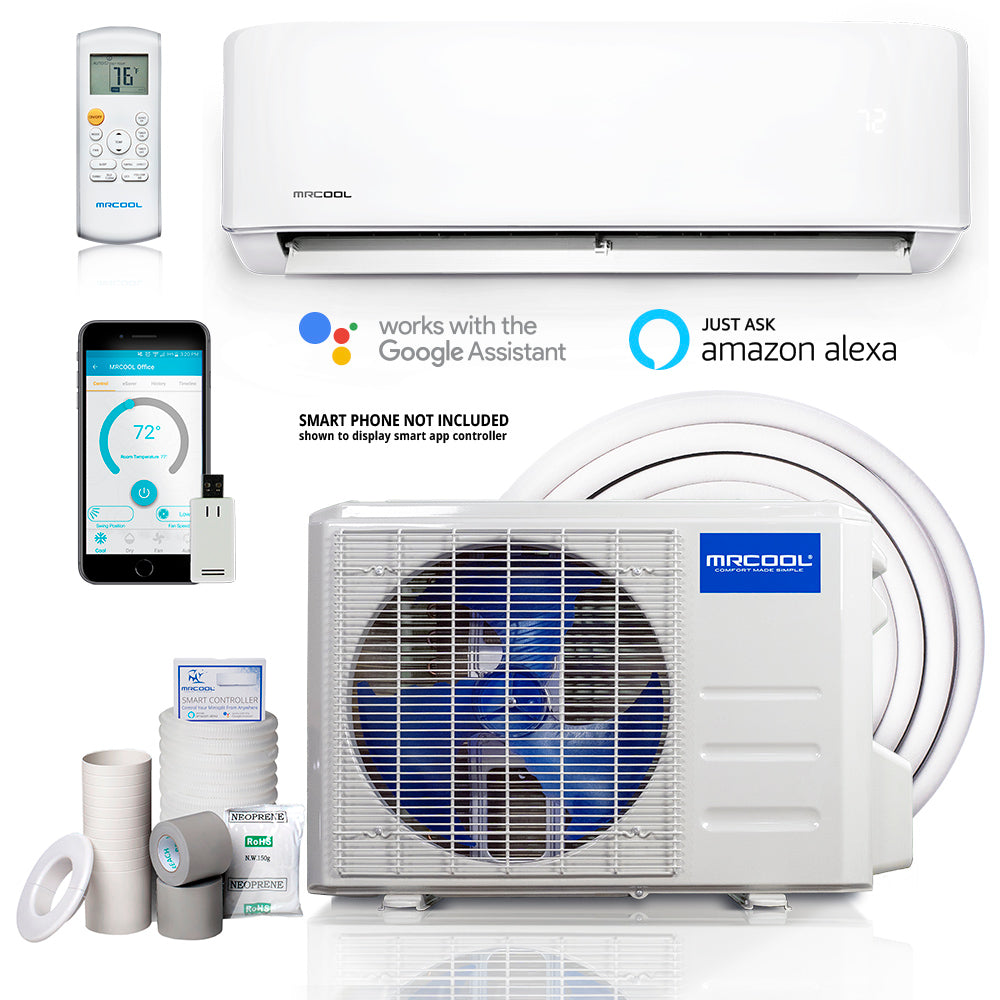

This new 4th generation MRCOOL Advantage series now features an improved SEER of 17.5 while providing quality comfort immediately upon installation by an HVAC technician. The competitive price makes this combination an excellent choice for those searching for quality, efficiency, quiet operation, and affordability. Staying environmentally-friendly, the condenser features the chlorine-free refrigerant R-410A. This is an excellent option for those looking for comfort and innovative technology. Using WiFi enabled control, this system is easy to set up and can be controlled with the SmartHVAC app or your Amazon Alexa or Google Assistant.
Features
- Installation kit included
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- The new 4th generation Advantage systems include our SmartHVAC WiFi Control Module with improved setup and enhanced functionality for Apple and Android smart devices. Works with Amazon Alexa. Works with Google Assistant.
- Installation by a licensed professional required where applicable
- 1-Year Compressor, 2-Year Parts and 1-Year Remote Warranty when registered and when installed by a licensed professional
- R-410A environmentally friendly refrigerant
- Sleep mode, louver position memory, and auto restart functions
- Convenient for installation and maintenance, compact design of outdoor unit, totally enclosed, permanently lubricated condenser fan motor
Additional specifications
| UPC | 840255521659 |
|---|---|
| Series | Advantage Series 4th Gen Condenser |
| Refrigerant charge (oz) | 62.8 |
| Heating capacity (BTU/h) | 24000 |
| HSPF2 (region V) | 6.6 |
| SEER | 18 |
| EER | 9 |
| HSPF (region IV) | 9.8 |
| HSPF (region V) | 8 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 19 |
| Max fuse / breaker (A) | 30 |
| AHRI certified | Yes |
| ENERGY STAR certified | No |
| UL listed | Yes |
| ETL listed | Yes |
| Parts warranty (years) | None |
| Compressor warranty (yrs) | None |
| Shipping W x H x D (in) | 39.17 x 29.13 x 15.67 |
| Shipping weight (lbs) | 105 |
Documents
- Installation manual (PDF)
- Service manual (PDF)
- Remote manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Mini-Split |
|---|---|
| Capacity | 24000 BTU |
| SEER2 | 18 |
| EER2 | 9 |
| HSPF2 | 8.6 |
| Sound Level | 60 dBA |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-410A |
| Connection Size | Liquid 3/8" / Suction 5/8" |
Physical & Certifications
| Dimensions (W x H x D) | 35.04 x 26.50 x 13.46 |
|---|---|
| Weight | 97.88 lb |
| Color / Finish | White |
