MRCOOL® DIY 4th Gen Multi-Zone 9k Ceiling Cassette with 25ft DIYPro Cable
208-230V
- 9000 BTU cooling capacity
- Runs on 208-230V power
Key Specifications
Product Overview

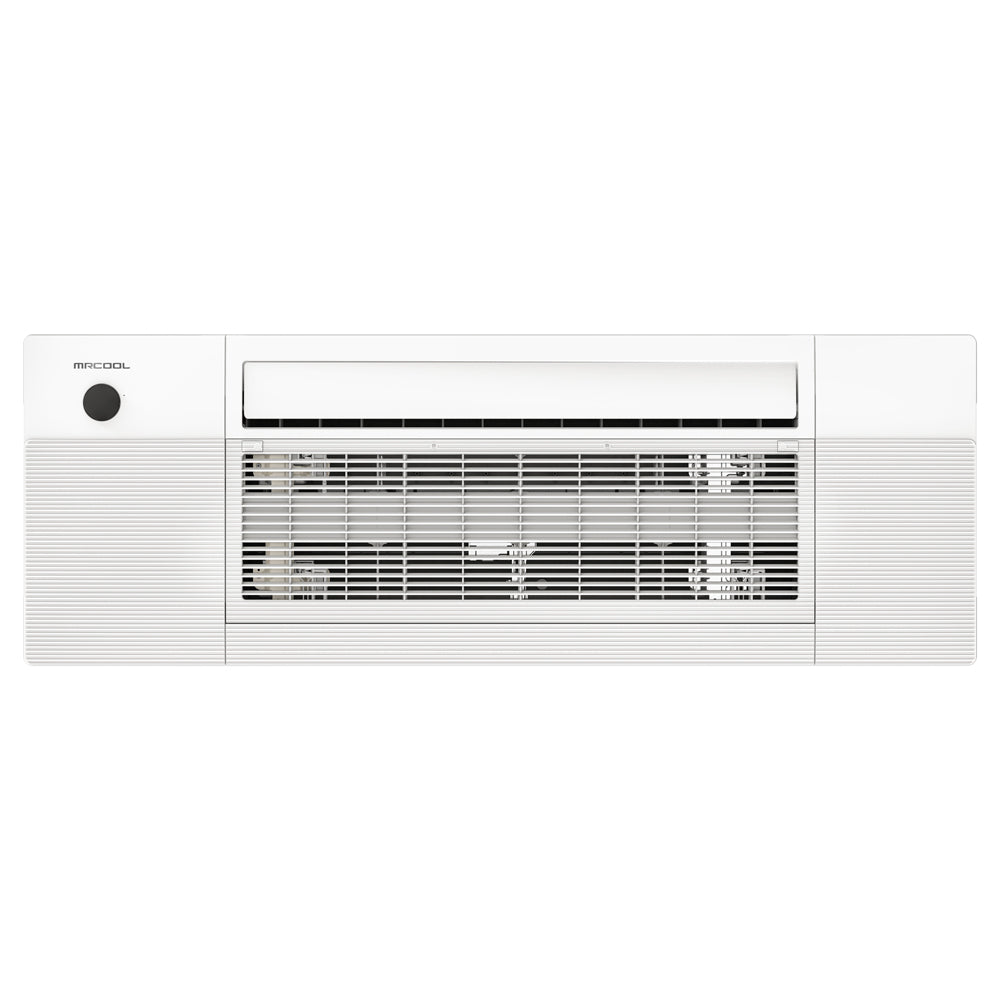

The MRCOOL® DIY® Series OuttaSight® 9k BTU Ceiling Cassette is perfect for any space and provide discreet and out of sight heating and cooling. It is available in multi-zone options and is easy to install, fitting between 16” ceiling joists. The OuttaSight® cassette is designed to work with both current and future joist standards and can be recessed between all types of joists on 16 inch center, including pre-manufactured I-joists. Other ceiling cassettes have strict installation requirements in less ideal locations, but the MRCOOL® OuttaSight® doesn't require ductwork or wall space and is perfect for new constructions or retrofits. The cassette works with the MRCOOL® DIY® Quick Connect® line set which makes installation even easier since it is precharged with refrigerant, eliminating the need for vacuuming. With advanced filtration, each cassette offers an Elevation function that lowers the filter panel for easy filter maintenance. Not only does this cassette feature quiet operation and multiple operating modes, but also provided is a 7-year compressor warranty and 5-year parts warranty, so you can feel confident in your investment.
Features
- Fits between 16" Ceiling Joists
- Featuring our easy access, elevating filter that can be lowered to a maximum of 4.9ft from the cassette.
- Low Profile Installation
- Pair with your DIY 4th gen Multi-Zone system
- Designed to work with current and future joist standards, it can be recessed between all types of joists on 16 inch center - including pre-manufactured I-joists.
Additional specifications
| UPC | 840255522199 |
|---|---|
| Series | DIY OuttaSight |
| Heating capacity (BTU/h) | 9000 |
| SEER | Up to 20.75 |
| EER | Up to 12.5 |
| HSPF (region IV) | 11 |
| HSPF (region V) | 8.6 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 3 |
| Max fuse / breaker (A) | 15 |
| Blower motor HP | 570/537/488/350 |
| Blower speeds | 4 |
| Filter type | Reusable |
| Sound level low (dBA) | 24.5 |
| Sound level high (dBA) | 42 |
| Wi-Fi capable | Yes |
| Remote included | Yes |
| Parts warranty (years) | 5-year Parts |
| Compressor warranty (yrs) | 7-year Compressor |
| Shipping W x H x D (in) | 57.60 x 22.64 x 22.48 |
| Shipping weight (lbs) | 88 |
Documents
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Mini-Split |
|---|---|
| Capacity | 9000 BTU |
| Sound Level | 40/35.5 dBA |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
Physical & Certifications
| Dimensions (W x H x D) | 50.31 x 8.98 x 13.19 |
|---|---|
| Weight | 44.31 lb |
Shipping & Delivery
Installation video
Published by MRCOOL. Watch the full walkthrough before you start, and follow the installation manual for this model — the video is a guide, not a substitute for it.
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
