MRCOOL
MRCOOL® DIY 4th Gen Multi-Zone 18k Ceiling Cassette with 25ft DIYPro Cable
208-230V
- 17000 BTU cooling capacity
- Runs on 208-230V power
Key Specifications
Product Overview

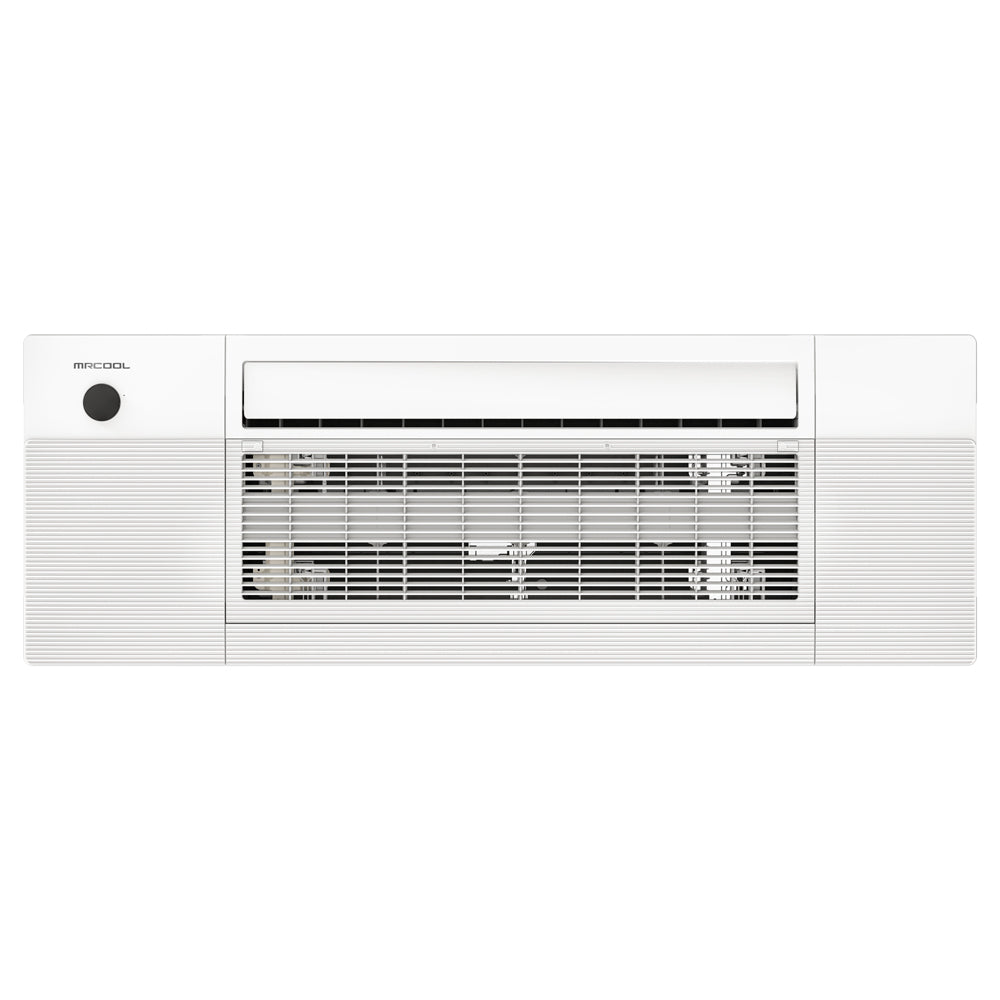

The MRCOOL® DIY® Series OuttaSight® 18k BTU Ceiling Cassette provides efficient heating and cooling while remaining out of sight and discreet, making it a perfect fit for any space. This easy to install and easy to maintain unit is offered in both single-zone and multi-zone options and can provide coverage for large and small spaces. The OuttaSight® cassette features an easy, low profile installation and can be recessed between all types of joists on 16 inch center including pre-manufactured I-joists. This makes it a perfect option for both new construction or retrofits. It doesn’t have strict installation requirements like other ceiling cassettes, so you’re able to install it in the location that suits you best, without using ductwork or wall space. The OuttaSight® works with the MRCOOL® DIY® Quick Connect® line set. Not only does the unit offer quiet operation and multiple operating modes, but it also features the Elevation function that lowers the filter panel for easy air filter maintenance. Purchases of the MRCOOL® DIY® Series OuttaSight® 18k BTU Ceiling Cassette are protected by a 7-year compressor warranty and 5-year parts warranty.
Features
- Fits between 16" Ceiling Joists
- Featuring our easy access, elevating filter that can be lowered to a maximum of 4.9ft from the cassette.
- Low Profile Installation
- Pair with DIY 4th gen Multi and Single Zone Systems
- Designed to work with current and future joist standards, it can be recessed between all types of joists on 16 inch center - including pre-manufactured I-joists.
- Compatible with the DIY 4th gen 18k single-zone condenser as well as our DIY 4th gen multi-zone systems
Additional specifications
| UPC | 840255522212 |
|---|---|
| Series | DIY OuttaSight |
| Heating capacity (BTU/h) | 19000 |
| SEER | Up to 21.8 |
| EER | Up to 12.5 |
| HSPF (region IV) | 11.6 |
| HSPF (region V) | 9.7 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 3 |
| Max fuse / breaker (A) | 15 |
| Blower motor HP | 598/510/352 |
| Blower speeds | 4 |
| Filter type | Reusable |
| Sound level low (dBA) | 21 |
| Sound level high (dBA) | 44 |
| Min ambient cooling (F) | 60 ~ 90 |
| Min ambient heating (F) | 32 ~ 86 |
| Wi-Fi capable | Yes |
| Remote included | Yes |
| Parts warranty (years) | 5-year Parts |
| Compressor warranty (yrs) | 7-year Compressor |
| Shipping W x H x D (in) | 57.60 x 22.64 x 22.48 |
| Shipping weight (lbs) | 89 |
Documents
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Mini-Split |
|---|---|
| Capacity | 17000 BTU |
| Sound Level | 40/28 dBA |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Connection Size | Liquid 1/4" / Suction 1/2" |
Physical & Certifications
| Dimensions (W x H x D) | 50.31 x 8.98 x 13.19 |
|---|---|
| Weight | 44.97 lb |
Shipping & Delivery
Installation video
Published by MRCOOL. Watch the full walkthrough before you start, and follow the installation manual for this model — the video is a guide, not a substitute for it.
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
