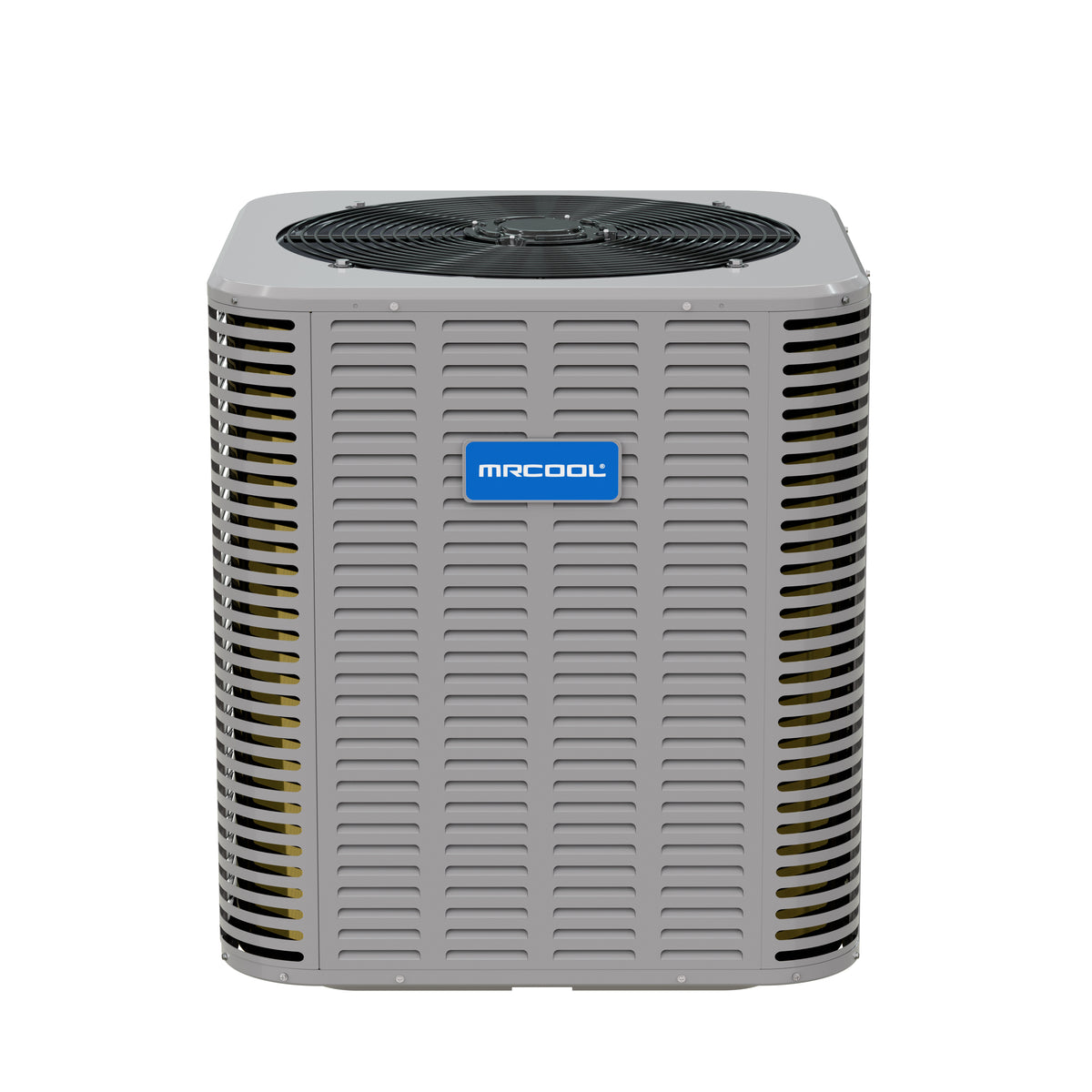

MRCOOL Signature 3 Ton up to 14.3 SEER2 36,000 BTU Split System Heat Pump
3 Ton | SEER2 14.3 | R-454B | 208/230V
- 33000 BTU cooling capacity
- Up to 14.3 SEER2 rated efficiency
- Scroll compressor
- Uses R-454B refrigerant
Key Specifications
Product Overview
The MRCOOL® Signature Series 36k Heat Pump Condenser is a dependable, high-efficiency solution designed to provide reliable year-round comfort. With energy performance ratings of 14.3 SEER2 and 11.7 EER2, it delivers consistent heating and cooling while helping reduce energy consumption and utility bills. Whether battling summer heat or winter cold, this unit ensures your home stays comfortable in every season.
Factory pre-charged with R-454B refrigerant, this system supports eco-conscious upgrades, while the pre-charged design simplifies installation to save you on time and labor costs.
At its core, a single-speed scroll compressor provides dependable operation. Inner-groove copper tubing improves heat transfer, enhancing system responsiveness and efficiency. Built-in temperature and pressure sensors monitor conditions to help prevent system strain, while an intelligent defrost function ensures continued performance in colder climates.
Despite its large capacity, the unit operates quietly, just 63 decibels, thanks to a precision-engineered sound-dampening top that minimizes noise without compromising airflow. It’s an ideal solution for noise-sensitive environments.
Durability is built in with a steel louver coil guard and wire fan discharge grille designed to provide added protection for internal components, and extend the longevity of the unit.
Installation and maintenance are hassle-free with features like sweat connection service valves and an accessible gauge port. Backed by a 10-year limited parts warranty and a limited lifetime compressor warranty, the MRCOOL® Signature Series 36k Heat Pump Condenser offers reliable comfort and long-term value.
Additional specifications
| UPC | 840255595803 |
|---|---|
| Series | Signature Series Heat Pump Condenser |
| Refrigerant charge (oz) | 102.3 |
| Heating capacity (BTU/h) | 33000 |
| Airflow (CFM) | 2750 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 22.2 |
| Max fuse / breaker (A) | 30 |
| Inverter | No |
| Max line set length (ft) | 150 |
| Min ambient cooling (F) | 59 |
| Min ambient heating (F) | 5 |
| AHRI certified | Yes |
| ENERGY STAR certified | No |
| UL listed | Yes |
| ETL listed | Yes |
| Parts warranty (years) | 10 Year |
| Compressor warranty (yrs) | Limited Lifetime |
| Shipping W x H x D (in) | 30.3 x 26.2 x 30.3 |
| Shipping weight (lbs) | 182 |
Documents
- Installation manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Split System Heat Pump Condenser |
|---|---|
| Capacity | 33000 BTU |
| Tonnage | 3 Ton |
| Compressor / Stages | Scroll |
| SEER2 | 14.3 |
| EER2 | 11.7 |
| HSPF2 | 7.5 |
| Sound Level | 63 dBA |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 29.14 x 25 x 29.14 |
|---|---|
| Weight | 173 lb |
| Color / Finish | Grey |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
