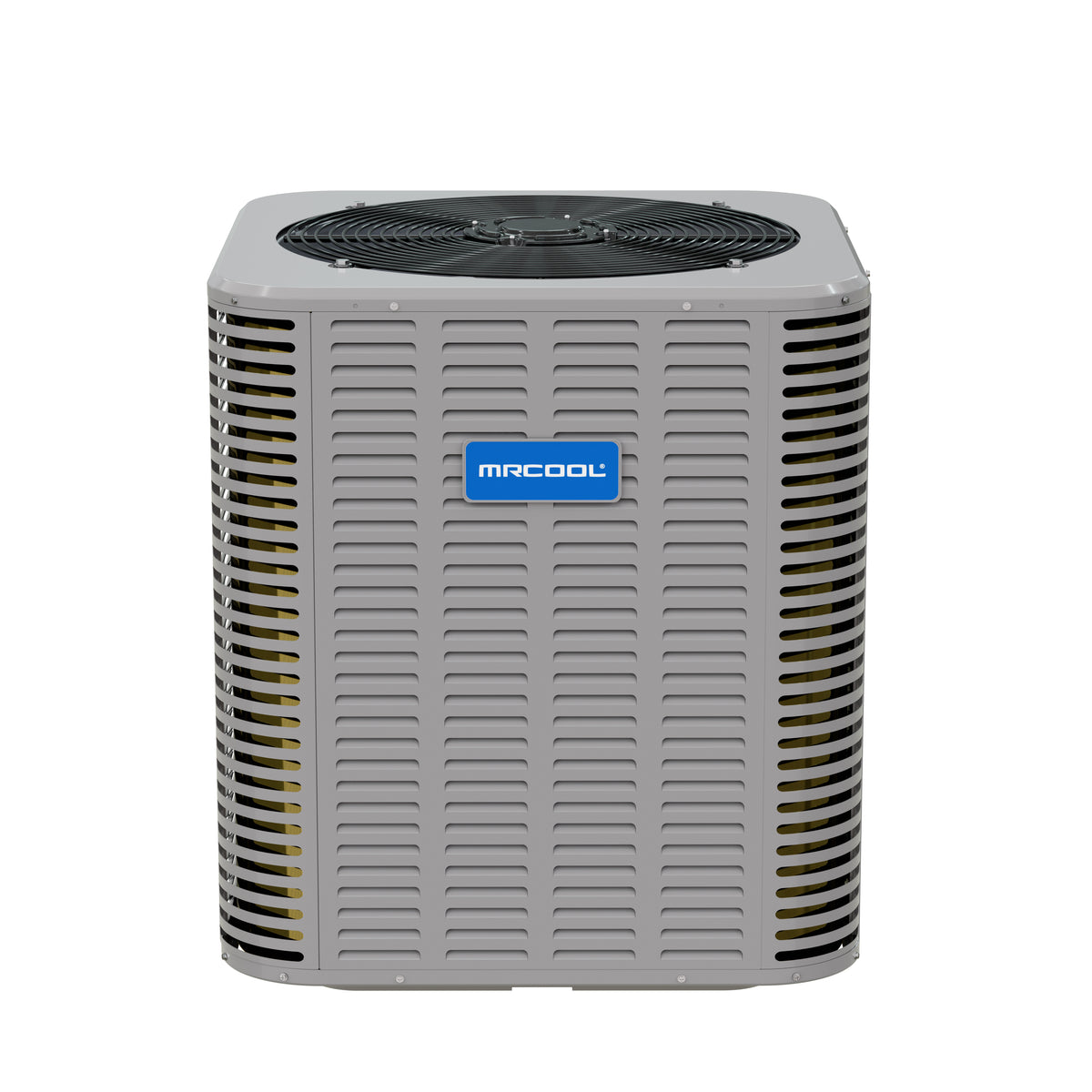

MRCOOL Signature 2 Ton up to 14.3 SEER2 24,000 BTU Split System Heat Pump
2 Ton | SEER2 14.3 | R-454B | 208/230V
- 22000 BTU cooling capacity
- Up to 14.3 SEER2 rated efficiency
- Scroll compressor
- Uses R-454B refrigerant
Key Specifications
Product Overview
The MRCOOL® Signature Series 24k Heat Pump Condenser is a high-efficiency, all-season solution designed to keep your home comfortable year-round. With a 14.3 SEER2 and 11.7 EER2 rating, it offers dependable climate control and energy savings, making it a smart replacement or upgrade for any home.
Pre-charged with R-454B refrigerant, this unit meets today’s environmental standards while delivering reliable performance. Its pre-charged design also speeds up installation and lowers labor costs. At the heart of the system is a durable single-speed scroll compressor, supported by inner-groove copper tubing for improved heat transfer and fast response.
This unit includes temperature and pressure sensors and an intelligent defrost function for reliable performance in extreme weather. It operates quietly at just 60 decibels, with a sound-dampening top ideal for use in residential settings.
Built to last, it features a louvered coil guard and wire fan discharge grille for extra protection. Service-friendly features include sweat connection valves and an accessible gauge port, while its compact frame allows for flexible placement.
Homeowners also benefit from a 10-year limited parts warranty and a limited lifetime compressor warranty. For comfort, efficiency, and durability, the MRCOOL® Signature Series 24k Heat Pump delivers long-term value.
Additional specifications
| UPC | 840255595780 |
|---|---|
| Series | Signature Series Heat Pump Condenser |
| Refrigerant charge (oz) | 91.7 |
| Heating capacity (BTU/h) | 22000 |
| Airflow (CFM) | 1950 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 15.2 |
| Max fuse / breaker (A) | 20 |
| Inverter | No |
| Max line set length (ft) | 100 |
| Min ambient cooling (F) | 59 |
| Min ambient heating (F) | 5 |
| AHRI certified | Yes |
| ENERGY STAR certified | No |
| UL listed | Yes |
| ETL listed | Yes |
| Parts warranty (years) | 10 Year |
| Compressor warranty (yrs) | Limited Lifetime |
| Shipping W x H x D (in) | 24.8 x 26.2 x 24.8 |
| Shipping weight (lbs) | 151 |
Documents
- Installation manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Split System Heat Pump Condenser |
|---|---|
| Capacity | 22000 BTU |
| Tonnage | 2 Ton |
| Compressor / Stages | Scroll |
| SEER2 | 14.3 |
| EER2 | 11.7 |
| HSPF2 | 7.5 |
| Sound Level | 60 dBA |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 23.6 x 25 x 23.6 |
|---|---|
| Weight | 144 lb |
| Color / Finish | Grey |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
