MRCOOL

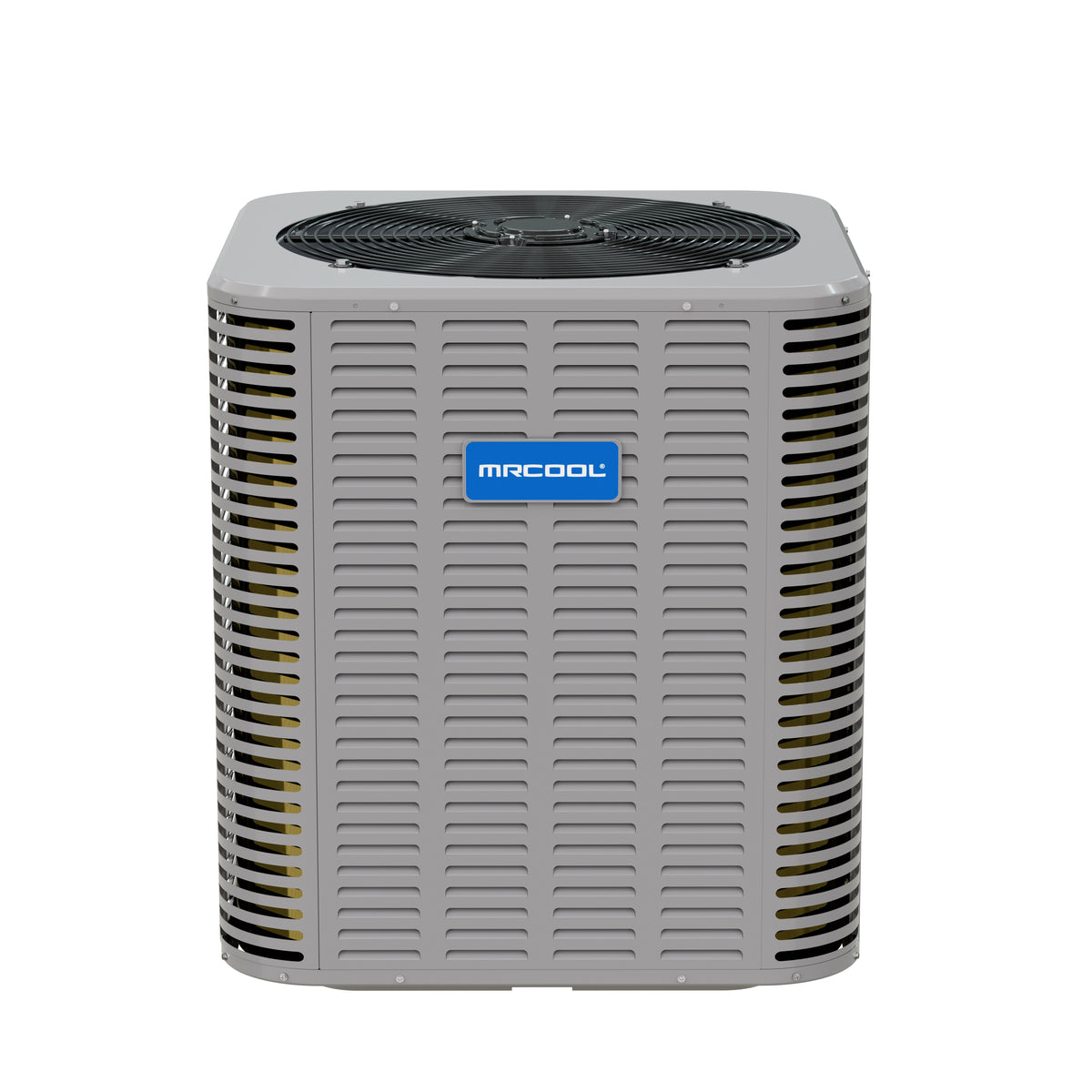

MRCOOL Signature 1.5 Ton up to 14.3 SEER2 18,000 BTU Split System Heat Pump
1.5 Ton | SEER2 14.3 | R-454B | 208/230V
- 17000 BTU cooling capacity
- Up to 14.3 SEER2 rated efficiency
- Scroll compressor
- Uses R-454B refrigerant
Key Specifications
Product Overview
The MRCOOL® Signature Series 18k Heat Pump Condenser offers efficient, reliable comfort all year long. Rated at 14.3 SEER2 and 11.7 EER2, it delivers dependable heating and cooling while helping lower monthly energy bills. Whether upgrading an old system or installing new, this unit balances performance, efficiency, and value.
Pre-charged with eco-friendly R-454B refrigerant, this unit supports reduced environmental impact while maintaining strong performance. The pre-charged design streamlines installation and cuts labor time, making it ideal for both contractors and homeowners.
At the heart of the system is a single-speed scroll compressor, engineered for stable, efficient operation. Inner-groove copper tubing enhances heat transfer, boosting responsiveness and energy efficiency. Built-in sensors monitor internal temperature and pressure, helping protect against extreme conditions. An intelligent defrost function keeps the unit running smoothly in cold weather.
Despite its power, the unit runs quietly at just 60 decibels, about as loud as the average dishwasher, with a specially-engineered sound-dampening top to reduce noise.
Compact and lightweight, the unit installs easily in tight spaces. And maintenance is simple with accessible service valves and gauge ports. A 10-year limited parts warranty and a limited lifetime compressor warranty offers added peace of mind. The MRCOOL® Signature Series 18k Heat Pump Condenser is a durable, efficient, and smart investment in home comfort.
Additional specifications
| UPC | 840255595773 |
|---|---|
| Series | Signature Series Heat Pump Condenser |
| Refrigerant charge (oz) | 81.1 |
| Heating capacity (BTU/h) | 17000 |
| Airflow (CFM) | 1950 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 12.2 |
| Max fuse / breaker (A) | 20 |
| Inverter | No |
| Max line set length (ft) | 100 |
| Min ambient cooling (F) | 59 |
| Min ambient heating (F) | 5 |
| AHRI certified | Yes |
| ENERGY STAR certified | No |
| UL listed | Yes |
| ETL listed | Yes |
| Parts warranty (years) | 10 Year |
| Compressor warranty (yrs) | Limited Lifetime |
| Shipping W x H x D (in) | 24.8 x 26.2 x 24.8 |
| Shipping weight (lbs) | 150 |
Documents
- Installation manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Split System Heat Pump Condenser |
|---|---|
| Capacity | 17000 BTU |
| Tonnage | 1.5 Ton |
| Compressor / Stages | Scroll |
| SEER2 | 14.3 |
| EER2 | 11.7 |
| HSPF2 | 7.5 |
| Sound Level | 60 dBA |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 23.6 x 25 x 23.6 |
|---|---|
| Weight | 144 lb |
| Color / Finish | Grey |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
