MRCOOL

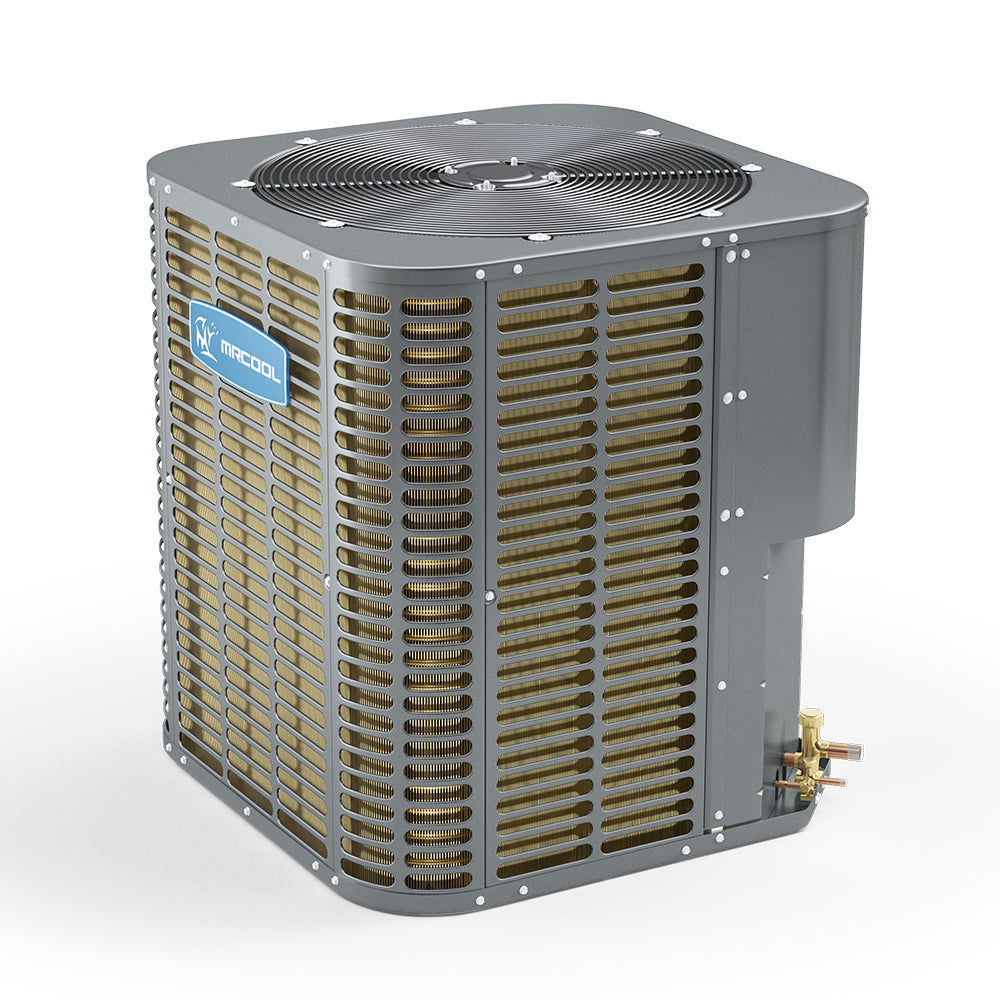

MRCOOL ProDirect 3 Ton up to 15 SEER2 36,000BTU Split System Heat Pump
3 Ton | SEER2 14.3 | 230V
- 33300 BTU cooling capacity
- Up to 14.3 SEER2 rated efficiency
- scroll compressor
- Runs on 230V power
Key Specifications
Product Overview
Take your comfort to the next level by replacing your current faulty comfort system with the MRCOOL ProDirect 3 Ton 15 SEER Split System Heat Pump Condenser. This condenser uses a rotary compressor, which efficiently gets the R-410A refrigerant ready to help bring you comfort, as well as a piston flow control device to heighten efficiency levels. Get ready to experience cost-effective comfort all year long. This unit has many protective features, like the galvanized steel cabinet and the Gold Fin® coil coating. This attractive, environmentally-friendly, non-toxic coating is great for keeping corrosion and rust far from your unit by making the fins waterproof. It also coats the unit in another layer of insulation, making this system far more efficient than any other you’ve seen. Protect yourself from future stress by registering this unit online so you can benefit from MRCOOL's superior warranty support. To make your household feel as comfortable as you deserve, put the MRCOOL ProDirect 3 ton split system heat pump condenser to work in your home to give you comfort for years to come.
Features
- Equipment should be installed by a qualified professional
- 10 Year Registered Warranty
- 15 SEER
- R-410A environmentally friendly refrigerant
- AHRI Certified & ETL listed
- Pressure and Temperature protection sensors help prevent damage
- A shape coils, constructed with copper tubing and enhanced aluminum fins.
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
Additional specifications
| UPC | 840255553858 |
|---|---|
| Series | PRODIRECT Heat Pump Condenser |
| Refrigerant charge (oz) | 123.46 |
| Heating capacity (BTU/h) | 32700 |
| Airflow (CFM) | 3350 |
| Cycle (Hz) | 60 |
| AHRI certified | Yes |
| ETL listed | Yes |
| Shipping W x H x D (in) | 29.90 x 25.90 x 29.90 |
| Shipping weight (lbs) | 156 |
Documents
- Installation manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Split System Heat Pump |
|---|---|
| Capacity | 33300 BTU |
| Tonnage | 3 Ton |
| Compressor / Stages | scroll |
| SEER2 | 14.3 |
| EER2 | 11.7 |
| HSPF2 | 7.5 |
| Sound Level | 61 dBA |
Electrical & Fuel
| Voltage | 230V |
|---|---|
| Phase | Single Phase |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 29.14 x 25.00 x 29.14 |
|---|---|
| Weight | 156.00 lb |
