MRCOOL

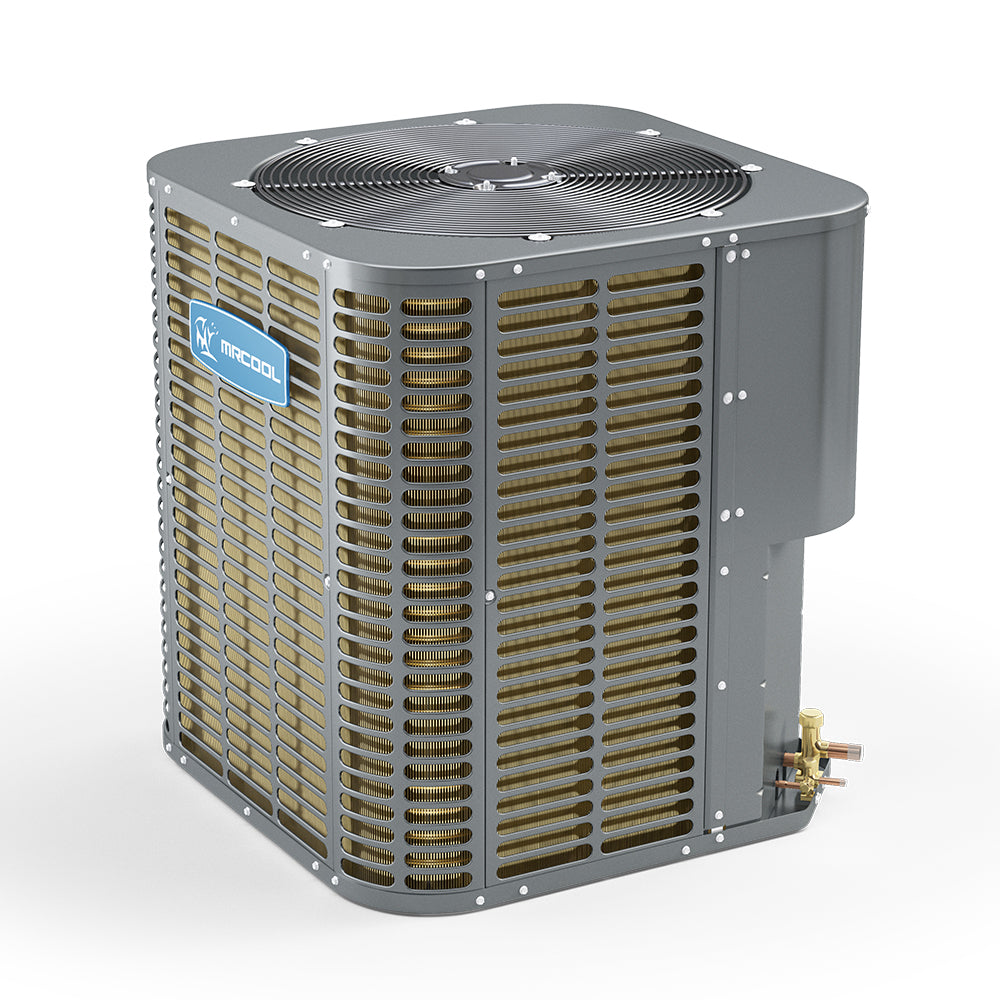

MRCOOL ProDirect 1.5 Ton up to 15 SEER2 18,000 BTU Split System Heat Pump
1.5 Ton | SEER2 14.3 | 230V
- 18000 BTU cooling capacity
- Up to 14.3 SEER2 rated efficiency
- scroll compressor
- Runs on 230V power
Key Specifications
Product Overview
You deserve the best year-round comfort for the longest amount of time, which is why you should switch out your old, faulty condenser with the MRCOOL ProDirect 1.5 Ton 15 SEER Split System Heat Pump Condenser. This unit has a rotary compressor that pressurizes the refrigerant to get it ready to absorb more heat from your home. The piston flow control device that it runs through is great for increasing efficiency, because it regulates the speed and the volume of the refrigerant. This unit is equipped to take care of you for years to come, thanks in part to the galvanized steel cabinet and the Gold Fin® condenser coating. This coating, which is environmentally friendly, completely non-toxic, and improves insulation, stops rust and corrosion from forming by keeping water from sticking to the coils. When you register your unit online, you’ll be able to enjoy an industry-leading warranty. Admitting you need a new heating and cooling system is a big step, so make sure you get the best with the MRCOOL ProDirect 1.5 Ton 15 SEER Split System Heat Pump Condenser.
Features
- Equipment should be installed by a qualified professional
- 10 Year Registered Warranty
- 15 SEER
- R-410A environmentally friendly refrigerant
- AHRI Certified & ETL listed
- Pressure and Temperature protection sensors help prevent damage
- A shape coils, constructed with copper tubing and enhanced aluminum fins.
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
Additional specifications
| UPC | 840255553827 |
|---|---|
| Series | PRODIRECT Heat Pump Condenser |
| Refrigerant charge (oz) | 91.71 |
| Heating capacity (BTU/h) | 17700 |
| Airflow (CFM) | 1780 |
| Cycle (Hz) | 60 |
| AHRI certified | Yes |
| ETL listed | Yes |
| Shipping W x H x D (in) | 22.60 x 25.90 x 22.60 |
| Shipping weight (lbs) | 108 |
Documents
- Installation manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Split System Heat Pump |
|---|---|
| Capacity | 18000 BTU |
| Tonnage | 1.5 Ton |
| Compressor / Stages | scroll |
| SEER2 | 14.3 |
| EER2 | 11.7 |
| HSPF2 | 7.5 |
| Sound Level | 60 dBA |
Electrical & Fuel
| Voltage | 230V |
|---|---|
| Phase | Single Phase |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 21-4/5 x 25.00 x 21-4/5 |
|---|---|
| Weight | 104.00 lb |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
Make sure it is the right size, and that you have the rest of it
Most outdoor units ship alone. If you are not certain of the capacity, or of what has to go with this unit, these two will work it out with you.
Still deciding on the right equipment?
Our HVAC specialists can help you confirm sizing and compatibility before you buy.
