MRCOOL

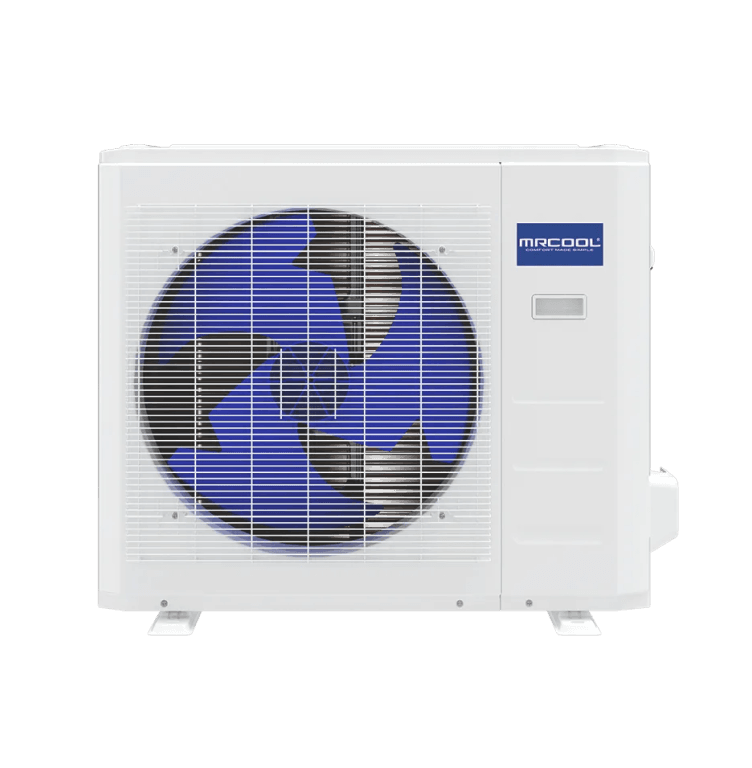

MRCOOL Olympus ENERGY STAR 24,000 BTU 2 Ton Mini-Split Heat Pump Condenser - 230V/60Hz
2 Ton | SEER2 Up to 21 | R-454B | 208/230V
- 24000 BTU cooling capacity
- Up to Up to 21 SEER2 rated efficiency
- Rotary compressor
- Uses R-454B refrigerant
Key Specifications
Product Overview
The MRCOOL® OLYMPUS E-STAR® 24k Series condenser is a powerful and efficient solution for heating and cooling areas up to 1,050 square feet, making it perfect for medium to large rooms, home offices, garages, and more. Its compact size simplifies installation, even in limited or unique spaces.
Equipped with Wi-Fi and the MRCOOL® Smart HVAC app, you can control your system from anywhere using your smartphone or tablet. For those who prefer more direct control, the included remote control provides quick access to all settings.
This air handler is designed with energy efficiency in mind, offering excellent SEER2 and EER2 ratings of 23 and 14, respectively, along with a HSPF2-4 rating of 11.7. These features help you save on energy bills while maintaining consistent and comfortable temperatures. The outdoor fan operates quietly at just 51.5 dB, ensuring minimal noise and disruption.
The system uses R-454B refrigerant, an environmentally friendly choice that delivers optimal performance while helping to reduce the system's carbon footprint.
In addition, the MRCOOL® OLYMPUS E-STAR® 24k Series is compatible with voice control through Amazon Alexa and Google Assistant, allowing you to adjust settings hands-free. The unit is backed by a 7-year compressor coverage and a 5-year parts warranty, ensuring durable performance, cutting-edge features, and lasting peace of mind.
Features
- Installation by a licensed professional required where applicable
- 7-Year Compresser, 5-Year Parts warranty when registered and installed by a licensed professional
- R-454B environmentally friendly friendly refrigerant
- Energy Star Certified
Additional specifications
| UPC | 840255587655 |
|---|---|
| Series | Olympus 4th Gen Single-Zone Condensers |
| Refrigerant charge (oz) | 63.49 |
| Heating capacity (BTU/h) | 29000 |
| HSPF2 (region V) | 9.8 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 24.9 |
| Max fuse / breaker (A) | 25 |
| Inverter | DC |
| Metering device | EXV + Throttle Valve |
| Max line set length (ft) | 164 |
| Line set fitting | Flare |
| Max coverage area | Up to 1050 |
| AHRI certified | Yes |
| ENERGY STAR certified | Yes |
| UL listed | Yes |
| ETL listed | Yes |
| Parts warranty (years) | 5-Year |
| Compressor warranty (yrs) | 7-Year |
| Shipping W x H x D (in) | 42.91 x 34.45 x 19.69 |
| Shipping weight (lbs) | 141.31 |
Documents
- Installation manual (PDF)
- Service manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Mini-Split |
|---|---|
| Capacity | 24000 BTU |
| Tonnage | 2 Ton |
| Compressor / Stages | Rotary |
| SEER2 | Up to 21 |
| EER2 | Up to 13 |
| HSPF2 | 13.5 |
| Sound Level | 61.5 dBA |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
| Connection Size | Liquid 3/8" / Suction 5/8" |
Physical & Certifications
| Dimensions (W x H x D) | 37.24 x 31.89 x 16.14 |
|---|---|
| Weight | 130.29 lb |
| Color / Finish | White |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
