MRCOOL

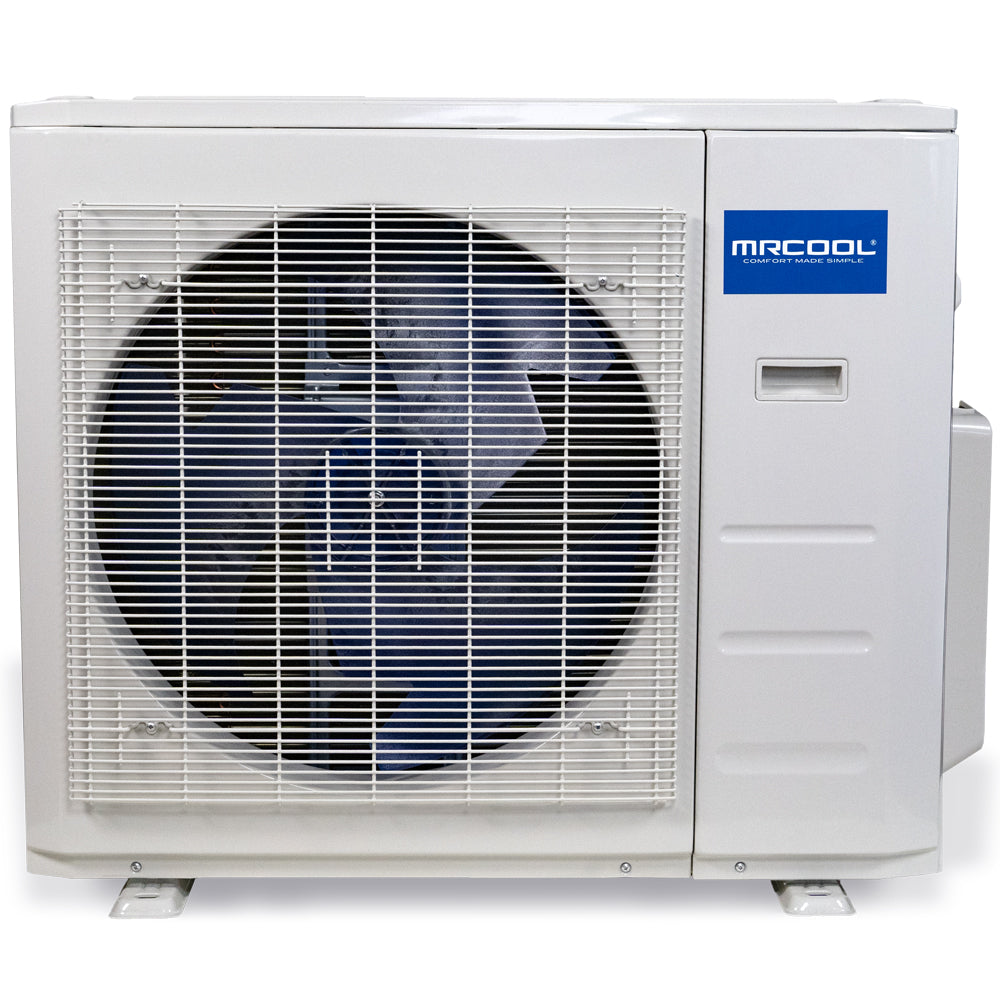

MRCOOL Olympus ENERGY STAR 24,000 BTU 2 Ton Ductless Mini Split Heat Pump Condenser- 230V/60Hz
2 Ton | SEER2 22 | R-410A | 208-230V
- 24000 BTU cooling capacity
- Up to 22 SEER2 rated efficiency
- Twin-ROTARY compressor
- Uses R-410A refrigerant
Key Specifications
Product Overview
The MrCool® Olympus Energy Star Series ductless heat pump now has efficiency ratings up to 22 SEER, so you can expect both effectiveness and efficiency. Designed to be installed by an HVAC professional, this heat pump utilizes eco-friendly R-410A refrigerant which is chlorine free. Look forward to the loads of features packed into this heat pump all at a competitive price point. This isn’t just a great value, it also features WiFi enabled control that makes setup a breeze, creates better functionality, and allows for control via Amazon Alexa, Google Assistant, or the SmartHVAC app on your Apple or Android device.
Additional specifications
| UPC | 840255521864 |
|---|---|
| Series | Olympus Energy Star Condenser |
| Refrigerant charge (oz) | 82.89 |
| Heating capacity (BTU/h) | 25000 |
| HSPF2 (region V) | 7.2 |
| SEER | Up To 22 |
| EER | Up To 14 |
| HSPF (region IV) | 12 |
| HSPF (region V) | 10 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 3 |
| Max fuse / breaker (A) | 30 |
| Filter type | Replaceable |
| Sound level low (dBA) | 34 |
| Sound level high (dBA) | 44 |
| Wi-Fi capable | Yes |
| Remote included | Yes |
| AHRI certified | Yes |
| ENERGY STAR certified | Yes |
Documents
Technical Specifications
Performance
| System Type | Mini-Split |
|---|---|
| Capacity | 24000 BTU |
| Tonnage | 2 Ton |
| Compressor / Stages | Twin-ROTARY |
| SEER2 | 22 |
| EER2 | 14 |
| HSPF2 | 10 |
| Sound Level | 39.5 dBA |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-410A |
| Connection Size | Liquid 3/8" / Suction 5/8" |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
