MRCOOL

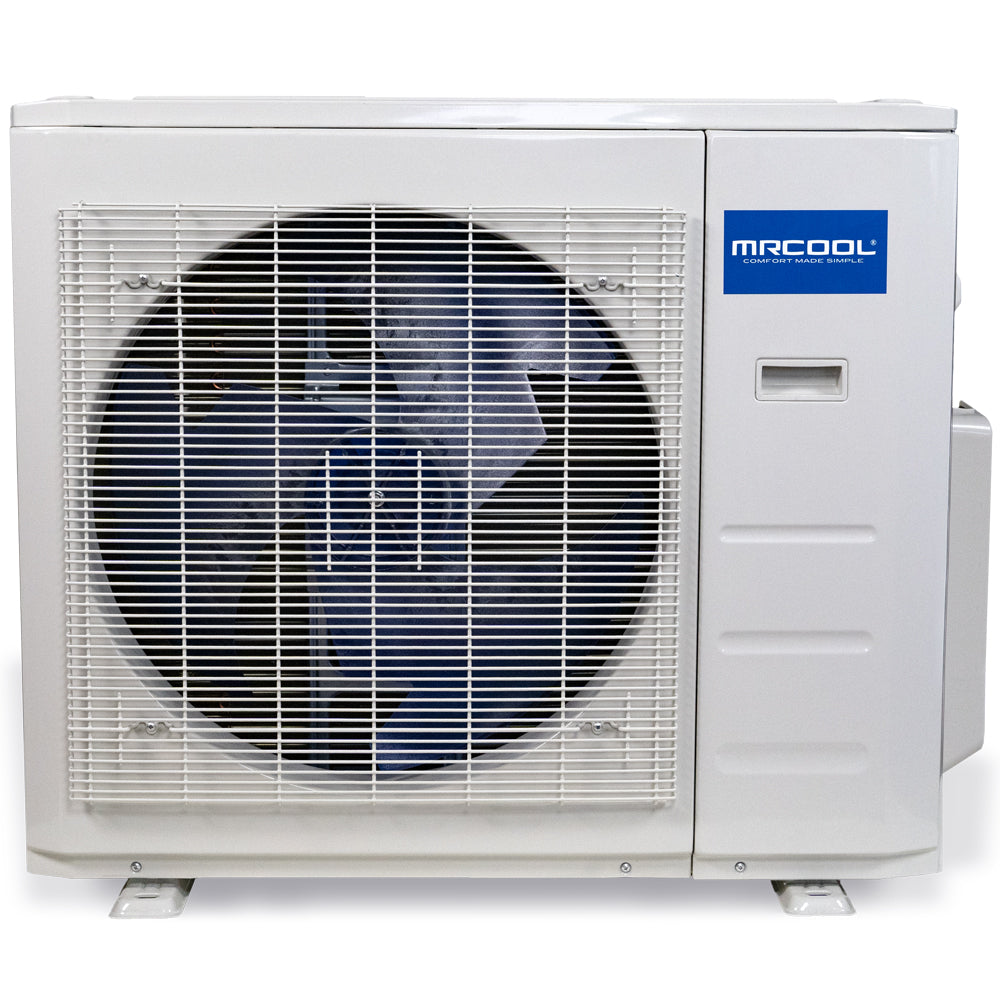

MRCOOL Olympus ENERGY STAR 18,000 BTU 1.5 Ton Ductless Mini Split Heat Pump Condenser - 230V/60Hz
1.5 Ton | SEER2 23.5 | R-410A | 208-230V
- 18000 BTU cooling capacity
- Up to 23.5 SEER2 rated efficiency
- ROTARY compressor
- Uses R-410A refrigerant
Key Specifications
Product Overview
Now featuring a SEER of 22.6, this MrCool® Olympus Energy Star Series ductless heat pump can efficiently and effectively provide comfort for a single zone in your home. Once installed by an HVAC professional, you can expect loads of features and high performance at a great price. Avoiding being harmful to the environment, this pump utilizes eco-friendly R-410A refrigerant which is chlorine-free. Not just efficient and effective, but this pump has WiFi capability that allows for easier setup, better functionality, and the ability to control the unit with your Amazon Alexa, Google Assistant, or the SmartHVAC app.
Additional specifications
| UPC | 840255521857 |
|---|---|
| Series | Olympus Energy Star Condenser |
| Refrigerant charge (oz) | 56.44 |
| Heating capacity (BTU/h) | 19000 |
| HSPF2 (region V) | 7.8 |
| SEER | Up To 22.6 |
| EER | Up To 12.5 |
| HSPF (region IV) | 12 |
| HSPF (region V) | 10 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 3 |
| Max fuse / breaker (A) | 30 |
| Filter type | Replaceable |
| Sound level low (dBA) | 32.5 |
| Sound level high (dBA) | 46.5 |
| Wi-Fi capable | Yes |
| Remote included | Yes |
| AHRI certified | Yes |
| ENERGY STAR certified | Yes |
Documents
Technical Specifications
Performance
| System Type | Mini-Split |
|---|---|
| Capacity | 18000 BTU |
| Tonnage | 1.5 Ton |
| Compressor / Stages | ROTARY |
| SEER2 | 23.5 |
| EER2 | 12.5 |
| HSPF2 | 10.8 |
| Sound Level | 43 dBA |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-410A |
| Connection Size | Liquid 1/4" / Suction 1/2" |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
