MRCOOL

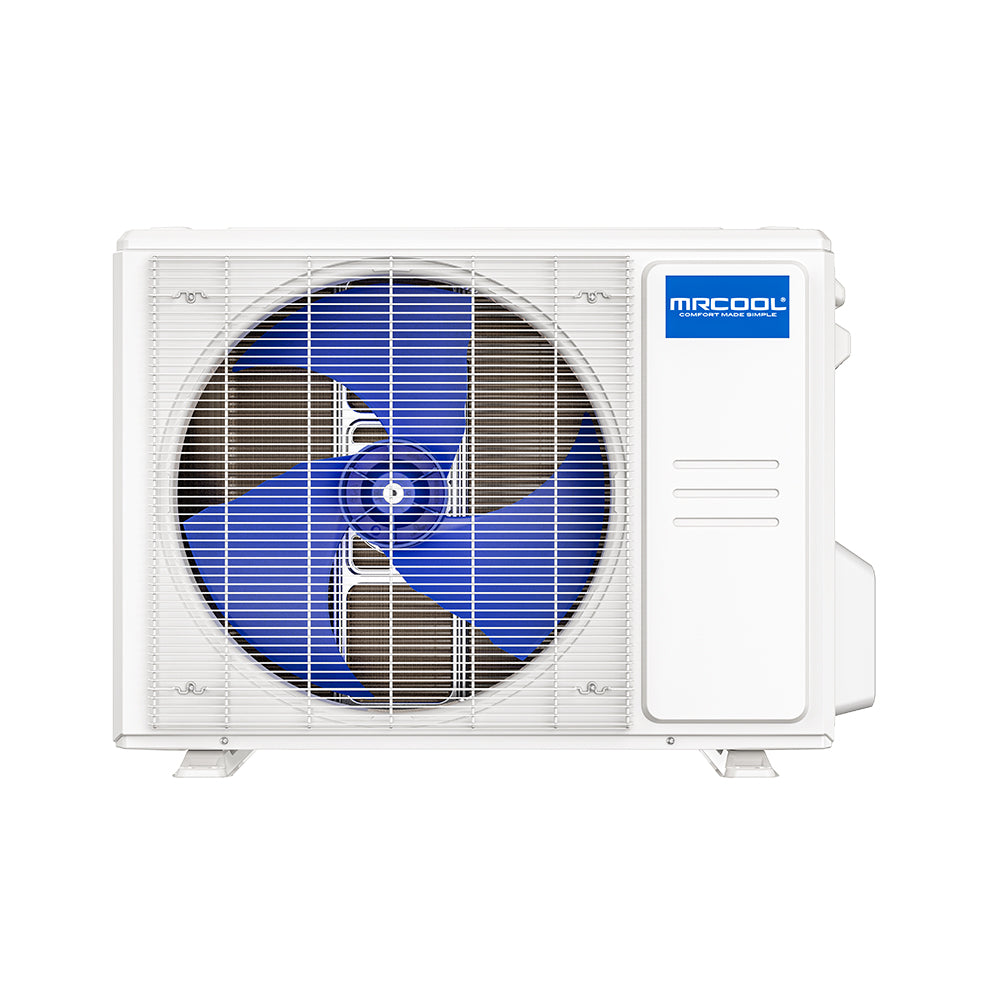

MRCOOL Olympus ENERGY STAR 12,000 BTU 1 Ton Mini-Split Heat Pump Condenser - 230V/60Hz
1 Ton | SEER2 Up to 25.4 | R-454B | 208/230V
- 12000 BTU cooling capacity
- Up to Up to 25.4 SEER2 rated efficiency
- Rotary compressor
- Uses R-454B refrigerant
Key Specifications
Product Overview
The MRCOOL® OLYMPUS E-STAR® 12k Series condenser provides dependable heating and cooling for spaces up to 550 square feet, making it perfect for bedrooms, home offices, garages, and other smaller areas. Its compact design ensures a hassle-free installation, even in tight or unconventional spaces.
With Wi-Fi capability and the MRCOOL® Smart HVAC app, you can conveniently adjust the system's temperature, fan speed, and settings from your smartphone or tablet, giving you full control no matter where you are. Prefer a more hands-on approach? The included remote control offers easy access to all the essential features.
Optimized for energy efficiency, the unit boasts impressive SEER2 and EER2 ratings of 25.5 and 13, respectively, along with a HSPF2-4 rating of 10.6, allowing you to reduce energy costs while enjoying ideal comfort. The outdoor fan operates at a quiet 56 dB, ensuring a peaceful environment without compromising performance.
The unit uses R-454B refrigerant, an eco-friendly solution that provides top-tier performance while being environmentally responsible.
For added convenience, the system is compatible with voice control through Amazon Alexa and Google Assistant, allowing for hands-free operation. The MRCOOL® OLYMPUS E-STAR® 12k Series also comes with a 7-year compressor coverage and a 5-year parts warranty, ensuring long-term reliability, cutting-edge technology, and peace of mind.
Features
- Installation by a licensed professional required where applicable
- 7-Year Compresser, 5-Year Parts warranty when registered and installed by a licensed professional
- R-454B environmentally friendly friendly refrigerant
- Energy Star Certified
Additional specifications
| UPC | 840255587631 |
|---|---|
| Series | Olympus 4th Gen Single-Zone Condensers |
| Refrigerant charge (oz) | 35.27 |
| Heating capacity (BTU/h) | 12000 |
| HSPF2 (region V) | 8 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 15 |
| Max fuse / breaker (A) | 15 |
| Inverter | DC |
| Metering device | EXV |
| Max line set length (ft) | 82 |
| Line set fitting | Flare |
| Max coverage area | Up to 550 |
| AHRI certified | Yes |
| ENERGY STAR certified | Yes |
| UL listed | Yes |
| ETL listed | Yes |
| Parts warranty (years) | 5-Year |
| Compressor warranty (yrs) | 7-Year |
| Shipping W x H x D (in) | 36.02 x 24.21 x 14.57 |
| Shipping weight (lbs) | 78.7 |
Documents
- Installation manual (PDF)
- Service manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Mini-Split |
|---|---|
| Capacity | 12000 BTU |
| Tonnage | 1 Ton |
| Compressor / Stages | Rotary |
| SEER2 | Up to 25.4 |
| EER2 | Up to 13.4 |
| HSPF2 | 10.5 |
| Sound Level | 56 dBA |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
| Connection Size | Liquid 1/4" / Suction 3/8" |
Physical & Certifications
| Dimensions (W x H x D) | 31.69 x 21.81 x 12.99 |
|---|---|
| Weight | 72.75 lb |
| Color / Finish | White |
