MRCOOL

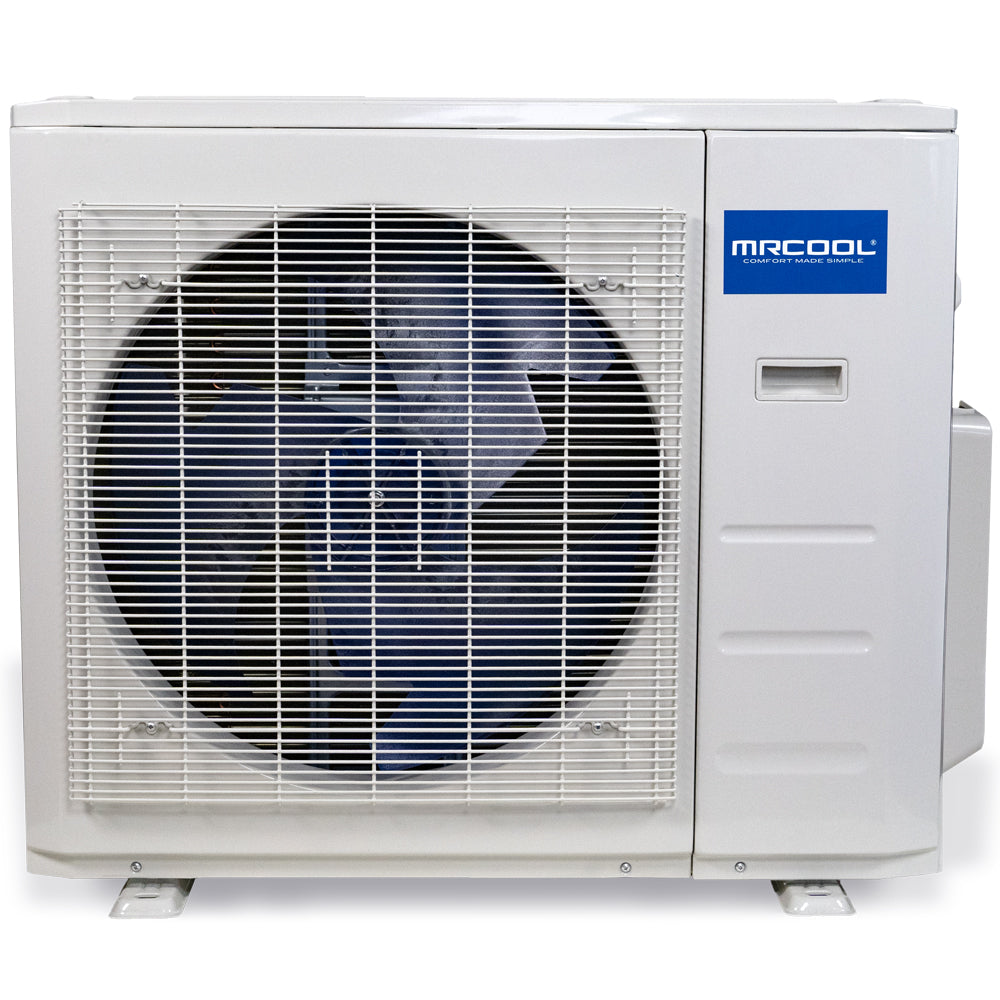

MRCOOL Olympus 27,000 BTU Ductless Mini-Split Condenser - 230V/60Hz
SEER2 24.6 | R-410A | 208-230V
- 28000 BTU cooling capacity
- Up to 24.6 SEER2 rated efficiency
- Twin-ROTARY compressor
- Uses R-410A refrigerant
Key Specifications
Product Overview
If you’re looking for efficiency and affordability, look no further than the MRCOOL® Olympus 27k Ductless Mini-Split Condenser. Pair it with an Olympus ceiling cassette or wall-mounted air handler, and you’ll experience superior performance without sacrificing efficiency. With a 23.8 SEER and 10.5 HSPF, you can count on this Energy Star certified condenser to help save money on your utility costs. This unit was designed to be installed by an HVAC professional, and once installed you can count on a 7-year compressor warranty, 5-year parts warranty, and 1-year remote warranty. The multi-zone technology gives you control and flexibility.
Features
- Installation by a licensed professional required where applicable
- 7-Year Compressor, 5-Year Parts and 1-Year Remote warranty when installed by a licensed professional
- R-410A environmentally friendly refrigerant
- Energy Star certified
Additional specifications
| UPC | 840255522007 |
|---|---|
| Series | Olympus Multi-Zone |
| Refrigerant charge (oz) | 91.7 |
| Heating capacity (BTU/h) | 28000 |
| HSPF2 (region V) | 7.1 |
| SEER | Up To 23.8 |
| EER | Up To 12.5 |
| HSPF (region IV) | 10.5 |
| HSPF (region V) | 8.8 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 24.5 |
| Max fuse / breaker (A) | 30 |
| AHRI certified | Yes |
| ENERGY STAR certified | Yes |
| Parts warranty (years) | 5 Year Parts |
| Compressor warranty (yrs) | 7 Years |
| Shipping W x H x D (in) | 42.91 x 34.84 x 19.69 |
| Shipping weight (lbs) | 151 |
Documents
Technical Specifications
Performance
| System Type | Mini-Split |
|---|---|
| Capacity | 28000 BTU |
| Compressor / Stages | Twin-ROTARY |
| SEER2 | 24.6 |
| EER2 | 12.7 |
| HSPF2 | 9.3 |
| Sound Level | 61 dBA |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-410A |
| Connection Size | Liquid 1/4" / Suction 3/8" |
Physical & Certifications
| Dimensions (W x H x D) | 37.24 x 31.89 x 16.14 |
|---|---|
| Weight | 139.77 lb |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
