MRCOOL

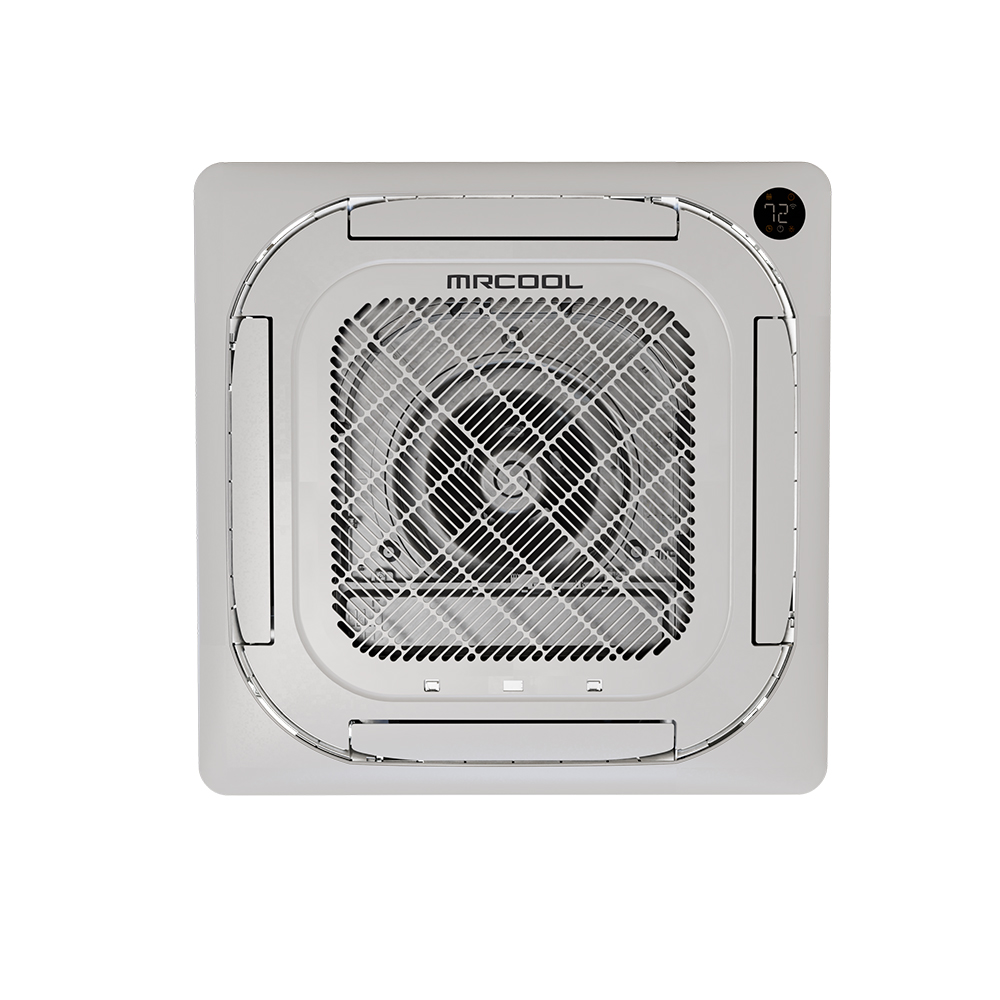

MRCOOL Olympus 24,000 BTU 2 Ton Ductless Mini-Split Ceiling Cassette with Panel - 230V/60Hz
2 Ton | R-454B | 208/230V
- 2 Ton capacity
- Uses R-454B refrigerant
- Runs on 208/230V power
Key Specifications
Product Overview
The MRCOOL® OLYMPUS 24K CASSETTE offers powerful heating and cooling for areas up to 1,050 square feet, making it a perfect solution for larger bedrooms, home offices, or smaller commercial spaces. Designed to mount seamlessly within the ceiling, this system integrates effortlessly into your environment, providing a modern and sophisticated aesthetic that complements any room’s décor. Its versatile design makes it a great option for both residential and business settings, optimizing space while delivering efficient climate control.
Operating at a quiet 48.5 dB, the indoor fan ensures a serene atmosphere without sacrificing performance. The minimal noise level allows for uninterrupted comfort, making it ideal for noise-sensitive areas like bedrooms, offices, or nurseries. The quiet operation promotes a peaceful setting that enhances relaxation and productivity.
The unit is equipped with R-454B refrigerant, an environmentally friendly choice that offers superior performance with a reduced environmental impact. With its low global warming potential, R-454B refrigerant not only minimizes the carbon footprint of your system but also maintains high energy efficiency. This makes it a great option for homeowners and businesses looking to reduce their environmental impact while enjoying reliable, energy-saving performance.
Backed by 7-year compressor coverage and a 5-year parts warranty, the MRCOOL® OLYMPUS 24K CASSETTE ensures long-lasting durability and cutting-edge technology. This unit is an ideal choice for those who seek a balance of efficiency, modern aesthetics, and exceptional comfort.
Additional specifications
| UPC | 840255588034 |
|---|---|
| Series | Olympus Cassette |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 3 |
| Max fuse / breaker (A) | 15 |
| Blower speeds | 765.2/706.3/635.7/547.4/547.4 |
| Line set fitting | Flare |
| Filter type | Reusable |
| Mount type | Ceiling |
| Max coverage area | Up to 1050 |
| Sound level low (dBA) | 33.5 |
| Sound level high (dBA) | 48.5 |
| Aux heater included | No |
| Aux heater available | No |
| Wi-Fi capable | Yes |
| Remote included | Yes |
| UL listed | Yes |
| ETL listed | Yes |
| Parts warranty (years) | 5-Year |
| Shipping weight (lbs) | 59.08 |
Documents
- Specification sheet (PDF)
- Installation manual (PDF)
- Service manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Mini-Split |
|---|---|
| Tonnage | 2 Ton |
| Sound Level | 48.5/45/42.5/33.5/33.5 dBA |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
| Connection Size | Liquid 3/8" / Suction 5/8" |
Physical & Certifications
| Dimensions (W x H x D) | 32.68 x 8.07 x 32.68 |
|---|---|
| Weight | 47.18 lb |
| Color / Finish | White |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
