MRCOOL

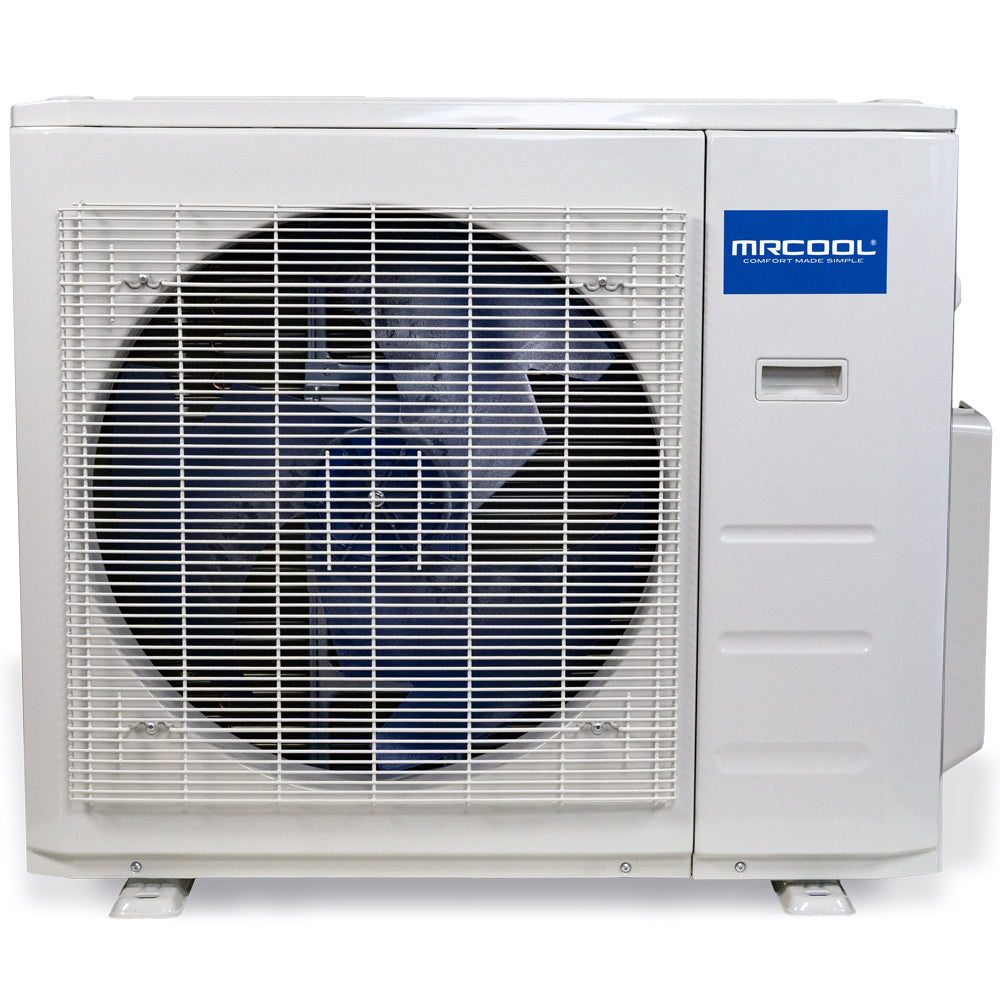

MRCOOL Olympus 18,000 BTU Ductless Mini-Split Condenser - 230V/60Hz
SEER2 22.9 | R-410A | 208-230V
- 18000 BTU cooling capacity
- Up to 22.9 SEER2 rated efficiency
- Twin-ROTARY compressor
- Uses R-410A refrigerant
Key Specifications
Product Overview
This MRCOOL® Olympus 18,000 BTU Ductless Mini-Split Condenser, when partnered with a wall-mounted or ceiling cassette air handler, is a cost-saving heating and cooling solution for your home. With a SEER of 22.5 and 10.6 HSPF, this is also an Energy-Star certified efficient unit that uses eco-friendly R-410A refrigerant. Designed to be installed by an HVAC professional, this condenser with multi-zone technology gives you flexibility and control. For peace of mind, rely on the 7-year compressor, 5-year parts, and 1-year remote warranty when you have it installed by a professional.
Features
- Installation by a licensed professional required where applicable
- 7-Year Compressor, 5-Year Parts and 1-Year Remote warranty when installed by a licensed professional
- R-410A environmentally friendly refrigerant
- Energy Star certified
Additional specifications
| UPC | 840255521994 |
|---|---|
| Series | Olympus Multi-Zone |
| Refrigerant charge (oz) | 65.26 |
| Heating capacity (BTU/h) | 19000 |
| HSPF2 (region V) | 8 |
| SEER | Up To 22.5 |
| EER | Up To 13.3 |
| HSPF (region IV) | 10.6 |
| HSPF (region V) | 8.5 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 18 |
| Max fuse / breaker (A) | 25 |
| AHRI certified | Yes |
| ENERGY STAR certified | Yes |
| Parts warranty (years) | 5 Year Parts |
| Compressor warranty (yrs) | 7 Years |
| Shipping W x H x D (in) | 40.55 x 29.53 x 17.24 |
| Shipping weight (lbs) | 109 |
Documents
Technical Specifications
Performance
| System Type | Mini-Split |
|---|---|
| Capacity | 18000 BTU |
| Compressor / Stages | Twin-ROTARY |
| SEER2 | 22.9 |
| EER2 | 13.9 |
| HSPF2 | 10.5 |
| Sound Level | 58.5 dBA |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-410A |
| Connection Size | Liquid 1/4" / Suction 3/8" |
Physical & Certifications
| Dimensions (W x H x D) | 35.04 x 26.50 x 13.46 |
|---|---|
| Weight | 100.31 lb |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
