MRCOOL

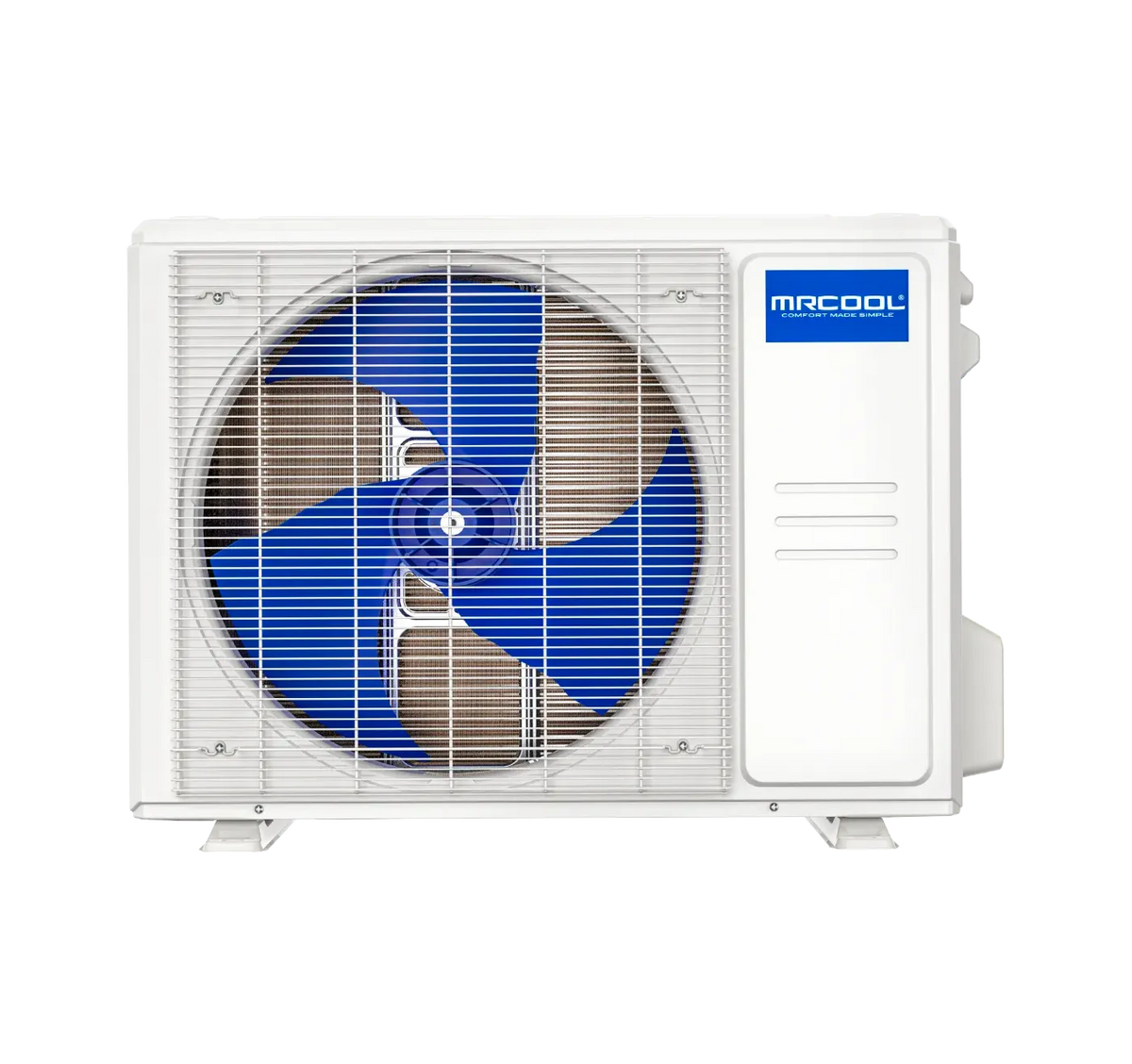

MRCOOL EasyPro 5th Generation 9k BTU 115V Condenser
0.75 Ton | SEER2 20.2 | R-454B | 115V
- 9000 BTU cooling capacity
- Up to 20.2 SEER2 rated efficiency
- Rotary compressor
- Uses R-454B refrigerant
Key Specifications
Product Overview
The MRCOOL® EASY Pro® Series 9k BTU Mini-Split Heat Pump Condenser is a budget friendly, convenient and impressive heating and cooling solution for spaces around 400 square feet. Due to the innovative nature of the unit’s do-it-yourself installation, you can have this system operating and bringing you comfort in no time.
This capable and durable 20.2 SEER2 and 9.2 HSPF2-4 condenser comes with a 16’ pre-charged Fast Connection® line set, enabling you to install this system in a matter of hours without the assistance of an HVAC professional. You can save time and money with this Easy Pro® condenser’s accommodating and ingenious design.
The Easy Pro® condenser comes with a variety of features that will help you make the comfort you experience from this system the best heating and air you’ve ever felt. You can connect your system to Wi-Fi, which lets you operate your system from your phone. The system also features an Auto Restart function, allowing you to get right back to enjoying the comfort you want after a power outage. This whisper-quiet unit will deliver comfort to your space without making a racket, as it only reaches 54 dB(A), and due to its Low Ambient Cooling feature, it can provide cooling even when it’s 5°F outside, making it perfect for use in a greenhouse or server room.
MRCOOL® has got your back with a 2-year compressor warranty and a 1-year parts warranty. For a system to enhance your comfort without breaking the bank, choose the MRCOOL® Easy Pro® condenser. Experience comfort made easy, anytime and anywhere!
Features
- Easy DIY installation
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Includes features such as timer mode, refrigerant leakage detection, and more
- Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
- The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
- R-454B refrigerant
- AHRI certified
- NEEP ccASHP Listed
- CEE Tier1 - North
Additional specifications
| UPC | 840255586726 |
|---|---|
| Series | EasyPro 5th Gen |
| Refrigerant charge (oz) | 17.28 |
| Heating capacity (BTU/h) | 10000 |
| HSPF2 (region V) | 7.1 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 17 |
| Max fuse / breaker (A) | 20 |
| Inverter | DC |
| Line set included (ft) | 16ft |
| Max line set length (ft) | 82 |
| Sound level high (dBA) | 54 |
| Min ambient cooling (F) | 5 |
| AHRI certified | Yes |
| UL listed | Yes |
| ETL listed | Yes |
| Parts warranty (years) | 1 Year |
| Compressor warranty (yrs) | 2 Years |
| Shipping W x H x D (in) | 32.87 x 21.26 x 10.63 |
| Shipping weight (lbs) | 66.58 |
Documents
- Specification sheet (PDF)
- Installation manual (PDF)
- Service manual (PDF)
- Remote manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Mini-Split |
|---|---|
| Capacity | 9000 BTU |
| Tonnage | 0.75 Ton |
| Compressor / Stages | Rotary |
| SEER2 | 20.2 |
| EER2 | 11.3 |
| HSPF2 | 9.2 |
| Sound Level | 54 dBA |
Electrical & Fuel
| Voltage | 115V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
| Connection Size | Liquid 1/4" / Suction 3/8" |
Physical & Certifications
| Dimensions (W x H x D) | 28.35 x 19.49 x 10.63 |
|---|---|
| Weight | 54.67 lb |
| Color / Finish | White |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
