MRCOOL

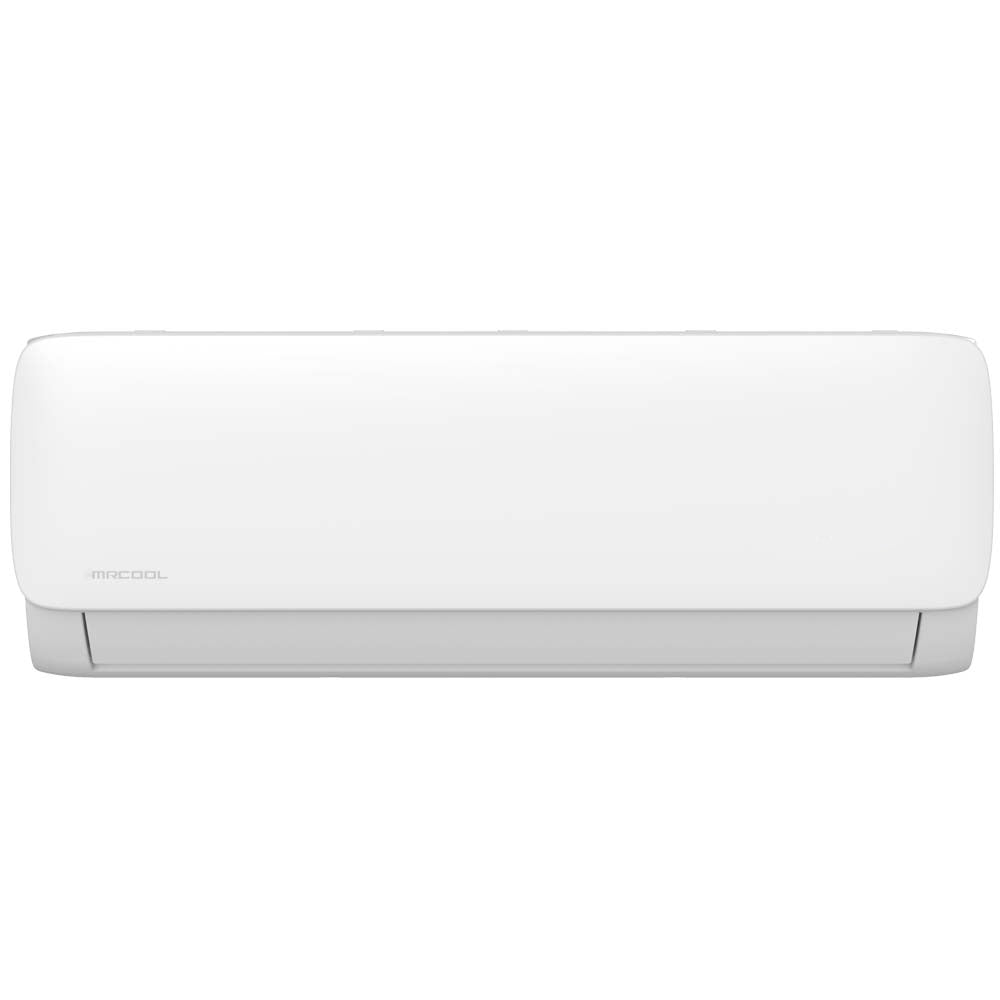

MRCOOL EasyPro 5th Generation 24k BTU 230V Air Handler
2 Ton | 208/230V
- 2 Ton capacity
- Runs on 208/230V power
Key Specifications
Product Overview
The MRCOOL® EASY PRO™ Mini-Split Air Handler is an affordable and user-friendly solution for heating and cooling spaces up to 1,050 square feet, making it perfect for larger rooms, open office areas, or versatile home applications. As MRCOOL’s most budget-friendly unit, the EASY PRO™ air handler is designed for easy, DIY installation without the need for professional assistance.
The EASY PRO™ air handler, which is a very efficient and convenient option, provides seamless and dependable operation. With WiFi connectivity, you can adjust and monitor temperature settings from your smartphone, while Active Clean Technology and simple-to-maintain filters help keep indoor air fresh. In the event of a power outage, the Auto Restart function restores operation automatically, and the Sleep Function adjusts temperature settings overnight to save energy while enhancing comfort.
Operating at a Whisper Quiet level, the EASY PRO™ is perfect for maintaining a tranquil environment, ideal for both home and work settings. Built to handle extreme conditions, it offers Low Ambient Cooling down to 5°F, making it suitable for spaces requiring year-round cooling, such as server rooms or greenhouses.
Backed by a 2-year compressor warranty and a 1-year parts warranty, the MRCOOL® EASY PRO™ air handler combines affordability, convenience, and reliability in an easy-to-install package. Experience comfort made easy, anytime and anywhere!
Features
- Easy DIY installation
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Includes features such as timer mode, refrigerant leakage detection, and more
- Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
- The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
- R-454B refrigerant
- AHRI certified
- NEEP ccASHP Listed
- CEE Tier1 - North
Additional specifications
| UPC | 840255586795 |
|---|---|
| Series | EasyPro 5th Gen |
| Airflow (CFM) | 729.9 / 547.4 / 400.2 / 329.6 / / |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 3 |
| Max fuse / breaker (A) | 15 |
| Blower speeds | 3 |
| Filter type | Reusable |
| Mount type | Wall |
| Max coverage area | 1050 sqft |
| Sound level low (dBA) | 21.5 |
| Sound level high (dBA) | 51.5 |
| Wi-Fi capable | Yes |
| Remote included | Yes |
| AHRI certified | Yes |
| UL listed | Yes |
| ETL listed | Yes |
| Parts warranty (years) | 1 Year |
| Compressor warranty (yrs) | 2 Years |
| Shipping W x H x D (in) | 45.47 x 12.4 x 16.34 |
| Shipping weight (lbs) | 49.6 |
Documents
- Specification sheet (PDF)
- Installation manual (PDF)
- Service manual (PDF)
- Remote manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Mini-Split |
|---|---|
| Tonnage | 2 Ton |
| Sound Level | 40 dBA |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Connection Size | Liquid 3/8" / Suction 5/8" |
Physical & Certifications
| Dimensions (W x H x D) | 42.6 x 13.27 x 9.21 |
|---|---|
| Weight | 35.49 lb |
| Color / Finish | White |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
