MRCOOL

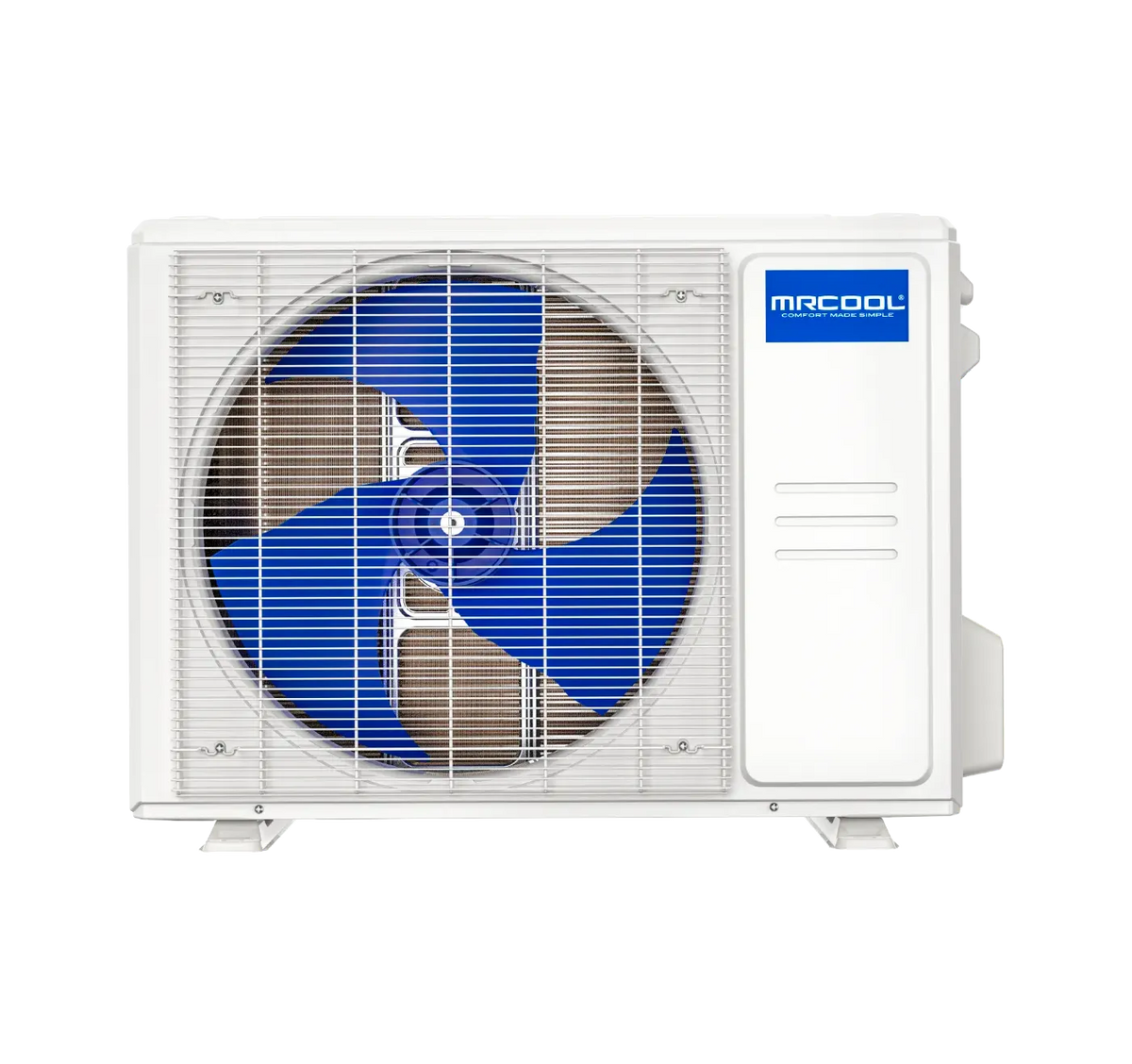

MRCOOL EasyPro 5th Generation 18k BTU 230V Condenser
1.5 Ton | SEER2 20 | R-454B | 208/230V
- 17000 BTU cooling capacity
- Up to 20 SEER2 rated efficiency
- Rotary compressor
- Uses R-454B refrigerant
Key Specifications
Product Overview
Treat yourself to perfect comfort at a price point that’ll make you happy with the MRCOOL® Easy Pro® Series 18k BTU Mini-Split Heat Pump Condenser! If you have a space that’s up to 800 square feet that you feel needs efficient heating and cooling, this is the unit for you. You’ll save money on top of its reasonable price point, because this unit has a do-it-yourself installation process, so you won’t need to hire anyone to install this unit for you.
The Easy Pro® condenser comes with a 16’ pre-charged Fast Connection® line set that you can easily link to the system to install without the services of an HVAC professional. This innovative design will save you a lot of time and money up front, and the SEER2 rating of 20 and HSPF2-4 rating of 8.5 will save your wallet in the long run.
You’ll be able to enjoy comfort exactly the way you want with the Easy Pro® condenser and its variety of features that improve user control, overall convenience, and general operation. The Wi-Fi connectivity of the unit allows you to operate your system with the touch of a button if you have a smart phone. The Auto Restart feature ensures you’ll be able to get right back to the comfort you deserve after a power outage or similar event, and when the system starts back up, you can be sure it won’t make a racket as it will only reach a volume of 55 dB(A). If you require year round cooling for a server room, greenhouse, or other similar space, you’re in luck as this unit features Low Ambient Cooling down to 5°F.
Enjoy worry-free heating and cooling all year long thanks to the unit’s warranties: a 2-year compressor warranty and a 1-year parts warranty. The MRCOOL® Easy Pro® condenser is the right choice for those who want comfort but don’t want to break the bank. Experience comfort made easy, anytime and anywhere!
Features
- Easy DIY installation
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Includes features such as timer mode, refrigerant leakage detection, and more
- Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
- The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
- R-454B refrigerant
- AHRI certified
- NEEP ccASHP Listed
- CEE Tier1 - North
Additional specifications
| UPC | 840255586740 |
|---|---|
| Series | EasyPro 5th Gen |
| Refrigerant charge (oz) | 34.92 |
| Heating capacity (BTU/h) | 18000 |
| HSPF2 (region V) | 6.6 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 15 |
| Max fuse / breaker (A) | 20 |
| Inverter | DC |
| Line set included (ft) | 16ft |
| Max line set length (ft) | 98.4 |
| Sound level high (dBA) | 55 |
| Min ambient cooling (F) | 5 |
| AHRI certified | Yes |
| UL listed | Yes |
| ETL listed | Yes |
| Parts warranty (years) | 1 Year |
| Compressor warranty (yrs) | 2 Years |
| Shipping W x H x D (in) | 34.92 x 24.02 x 13.27 |
| Shipping weight (lbs) | 82.23 |
Documents
- Specification sheet (PDF)
- Installation manual (PDF)
- Service manual (PDF)
- Remote manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Mini-Split |
|---|---|
| Capacity | 17000 BTU |
| Tonnage | 1.5 Ton |
| Compressor / Stages | Rotary |
| SEER2 | 20 |
| EER2 | 9.8 |
| HSPF2 | 8.5 |
| Sound Level | 55 dBA |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
| Connection Size | Liquid 1/4" / Suction 1/2" |
Physical & Certifications
| Dimensions (W x H x D) | 30.12 x 21.85 x 11.93 |
|---|---|
| Weight | 62.61 lb |
| Color / Finish | White |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
