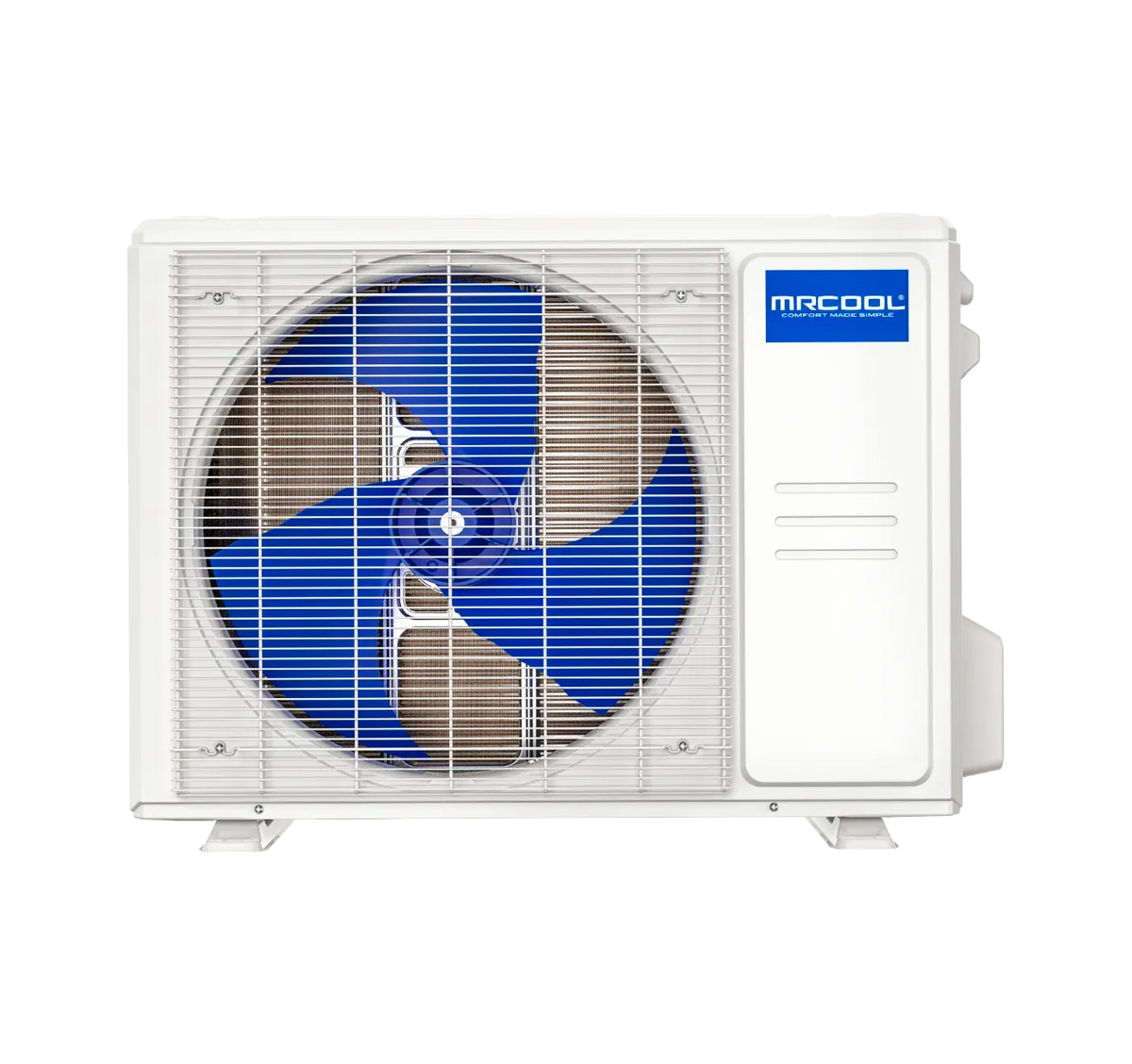

MRCOOL EasyPro 5th Generation 12k BTU 115V Condenser
1 Ton | SEER2 19.5 | R-454B | 115V
- 12000 BTU cooling capacity
- Up to 19.5 SEER2 rated efficiency
- Rotary compressor
- Uses R-454B refrigerant
Key Specifications
Product Overview
If you want easy comfort that won’t break the bank, you need the MRCOOL® Easy Pro® Series 12k BTU Mini-Split Heat Pump Condenser! This efficient system, designed to heat and cool spaces that are up to 550 square feet, is so easy to install, you don’t even need an HVAC professional!
This durable and capable condenser, which has a SEER2 of 19.5 and an HSPF2-4 of 9.3, can be installed by a homeowner due to the 16’ pre-charged Fast Connection® line set. This innovative line set essentially allows you to easily link the fittings to the condenser without needing professional assistance, saving you time and money thanks to the innovation of the Easy Pro® condenser.
If you want ultimate control over your comfort, look no further. You’ll be able to connect your system to Wi-Fi, opening a whole world of convenience, controls, and features with the touch of a button on your smart phone. You can also enjoy immediate comfort after a power outage or similar situation thanks to the system’s Auto Restart feature, and you’ll be able to rest easily no matter what due to the whisper-quiet operation of this system. This Easy Pro® condenser has a noise level of 54 dB(A), meaning that comfort won’t startle you or disrupt a conversation, and its Low Ambient cooling feature means that you can cool your greenhouse or server room or similar environment when it’s just 5°F outside.
MRCOOL® won’t leave you out in the cold thanks to the 2-year compressor warranty and a 1-year parts warranty. For ideal comfort at an ideal price, choose the MRCOOL® Easy Pro® condenser. Experience comfort made easy, anytime and anywhere!
Features
- Easy DIY installation
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Includes features such as timer mode, refrigerant leakage detection, and more
- Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
- The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
- R-454B refrigerant
- AHRI certified
- NEEP ccASHP Listed
- CEE Tier1 - North
Additional specifications
| UPC | 840255586733 |
|---|---|
| Series | EasyPro 5th Gen |
| Refrigerant charge (oz) | 21.52 |
| Heating capacity (BTU/h) | 12000 |
| HSPF2 (region V) | 7 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 19.5 |
| Max fuse / breaker (A) | 20 |
| Inverter | DC |
| Line set included (ft) | 16ft |
| Max line set length (ft) | 82 |
| Sound level high (dBA) | 54 |
| Min ambient cooling (F) | 5 |
| AHRI certified | Yes |
| UL listed | Yes |
| ETL listed | Yes |
| Parts warranty (years) | 1 Year |
| Compressor warranty (yrs) | 2 Years |
| Shipping W x H x D (in) | 32.87 x 21.26 x 10.63 |
| Shipping weight (lbs) | 67.24 |
Documents
- Specification sheet (PDF)
- Installation manual (PDF)
- Service manual (PDF)
- Remote manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Mini-Split |
|---|---|
| Capacity | 12000 BTU |
| Tonnage | 1 Ton |
| Compressor / Stages | Rotary |
| SEER2 | 19.5 |
| EER2 | 9 |
| HSPF2 | 9.3 |
| Sound Level | 54 dBA |
Electrical & Fuel
| Voltage | 115V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
| Connection Size | Liquid 1/4" / Suction 3/8" |
Physical & Certifications
| Dimensions (W x H x D) | 28.35 x 19.49 x 10.63 |
|---|---|
| Weight | 54.89 lb |
| Color / Finish | White |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
