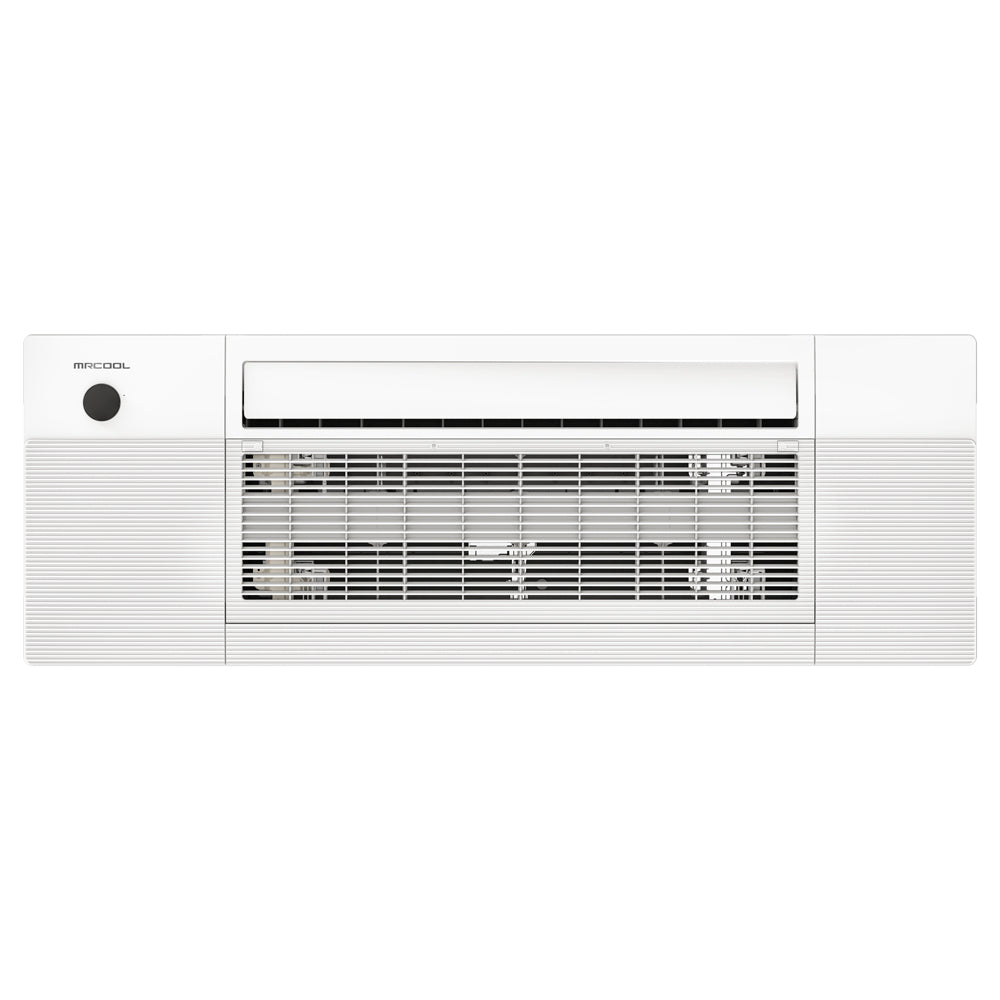

MRCOOL® DIY® Series 5th Gen OuttaSight® 9K BTU 230V One-Way Ceiling Cassette
R-454B | 208-230V
- Uses R-454B refrigerant
- Runs on 208-230V power
Key Specifications
Product Overview
The 5th Generation MRCOOL® DIY® Series Outtasight® 9K BTU 230V One-Way Ceiling Cassette provides a powerful and efficient climate control solution for areas up to 400 sq. ft. Designed for simple installation, this unit eliminates the need for specialized tools, making setup quick, cost-effective, and straightforward.
Made for multi-zone configurations, the cassette is engineered to fit seamlessly between 16” ceiling joists, including pre-manufactured I-joists, ensuring a discreet, flush-mounted appearance. Unlike conventional ceiling cassettes that require bulky ductwork or dedicated wall space, this unit offers versatile installation, making it a perfect choice for new construction or retrofit applications.
This cassette works effortlessly with the MRCOOL® DIY® Quick Connect® line set, which is pre-charged with R-454B refrigerant, an eco-friendly solution that removes the need for vacuuming. It features advanced filtration to improve indoor air quality, while the Elevation function makes filter maintenance easy by lowering the panel for hassle-free access.
With whisper-quiet operation and multiple control options—including a wireless remote, SmartHVAC app, and voice control via Amazon Alexa and Google Assistant—this system ensures customized comfort. Supported by a 7-year compressor/5-year parts warranty and eligibility for the MRCOOL® Care Program, the MRCOOL® Outtasight® Ceiling Cassette guarantees long-lasting performance, modern technology, and year-round climate control.
Features
- Low Profile Installation
- Fits between 16" Ceiling Joists
- Works with Multi and Single Zone Systems
- Two-Stage DC motor
- Quiet Operation
- Multiple Operating Modes
- Remote Included
- Advanced Filtration
- Swing Technology
Additional specifications
| UPC | 840255587501 |
|---|---|
| Series | DIY 5th Gen OuttaSight |
| Airflow (CFM) | 341 / 294 / 259 / 235 / 235 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 3 |
| Max fuse / breaker (A) | 15 |
| Filter type | Reusable |
| Mount type | Ceiling |
| Max coverage area | 400 |
| Sound level low (dBA) | 24 |
| Sound level high (dBA) | 38 |
| Wi-Fi capable | Yes |
| Remote included | Yes |
| Parts warranty (years) | 5 Years |
| Compressor warranty (yrs) | 7 Years |
| Shipping W x H x D (in) | 57.6 x 22.64 x 22.48 |
| Shipping weight (lbs) | 88 |
Documents
- Specification sheet (PDF)
- Installation manual (PDF)
- Service manual (PDF)
- Remote manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Mini-Split |
|---|---|
| Sound Level | 36 dBA |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
| Connection Size | Liquid 1/4" / Suction 3/8" |
Physical & Certifications
| Dimensions (W x H x D) | 50.31 x 8.98 x 13.19 |
|---|---|
| Weight | 45 lb |
| Color / Finish | White |
Shipping & Delivery
Installation video
Published by MRCOOL. Watch the full walkthrough before you start, and follow the installation manual for this model — the video is a guide, not a substitute for it.
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
