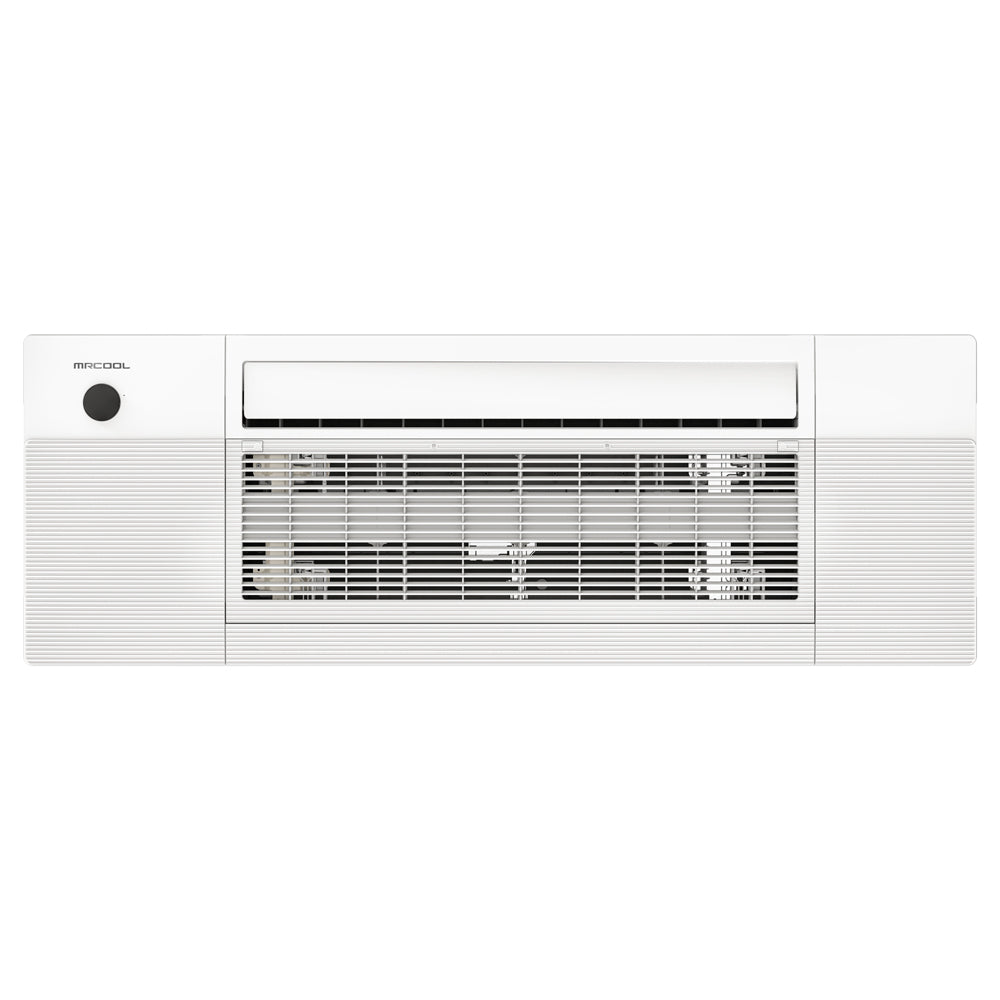

MRCOOL® DIY® Series 5th Gen OuttaSight® 6K BTU 230V One-Way Ceiling Cassette
R-454B | 208-230V
- Uses R-454B refrigerant
- Runs on 208-230V power
Key Specifications
Product Overview
The 5th Generation MRCOOL® DIY® Series Outtasight® 6K BTU 230V One-Way Ceiling Cassette is a powerful and efficient climate control solution for spaces up to 200 sq. ft. Engineered for easy DIY installation, this system eliminates the need for specialized tools, making setup simple, cost-effective, and hassle-free.
Designed to integrate seamlessly into multi-zone configurations, the cassette fits neatly between 16” ceiling joists, including pre-manufactured I-joists, for a clean, flush-mounted appearance. Unlike traditional ceiling cassettes that require extensive ductwork or inconvenient wall space, this unit offers a flexible installation ideal for both new builds and retrofit projects.
The cassette pairs effortlessly with the MRCOOL® DIY® Quick Connect® line set, which comes pre-charged with R-454B, an environmentally friendly refrigerant that eliminates the need for vacuuming. Advanced filtration enhances indoor air quality, while the Elevation function allows easy filter maintenance by lowering the panel for convenient access.
With quiet operation and multiple control options—including a wireless remote, SmartHVAC app, and voice commands via Amazon Alexa and Google Assistant—this system offers personalized comfort. Backed by a 7-year compressor and 5-year parts warranty, with eligibility for the MRCOOL® Care Program, the MRCOOL® DIY® Outtasight® Ceiling Cassette delivers long-term reliability, advanced technology, and year-round comfort.
Features
- Low Profile Installation
- Fits between 16" Ceiling Joists
- Works with Multi and Single Zone Systems
- Two-Stage DC motor
- Quiet Operation
- Multiple Operating Modes
- Remote Included
- Advanced Filtration
- Swing Technology
Additional specifications
| UPC | 840255587495 |
|---|---|
| Series | DIY 5th Gen OuttaSight |
| Airflow (CFM) | 341 / 294 / 259 / 235 / 235 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 3 |
| Max fuse / breaker (A) | 15 |
| Filter type | Reusable |
| Mount type | Ceiling |
| Max coverage area | 200 |
| Sound level low (dBA) | 23.5 |
| Sound level high (dBA) | 46.5 |
| Wi-Fi capable | Yes |
| Remote included | Yes |
| Parts warranty (years) | 5 Years |
| Compressor warranty (yrs) | 7 Years |
| Shipping W x H x D (in) | 57.6 x 22.64 x 22.48 |
| Shipping weight (lbs) | 88 |
Documents
- Specification sheet (PDF)
- Installation manual (PDF)
- Service manual (PDF)
- Remote manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Mini-Split |
|---|---|
| Sound Level | 35.5 dBA |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
| Connection Size | Liquid 1/4" / Suction 3/8" |
Physical & Certifications
| Dimensions (W x H x D) | 50.31 x 8.98 x 13.19 |
|---|---|
| Weight | 45 lb |
| Color / Finish | White |
Shipping & Delivery
Installation video
Published by MRCOOL. Watch the full walkthrough before you start, and follow the installation manual for this model — the video is a guide, not a substitute for it.
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
