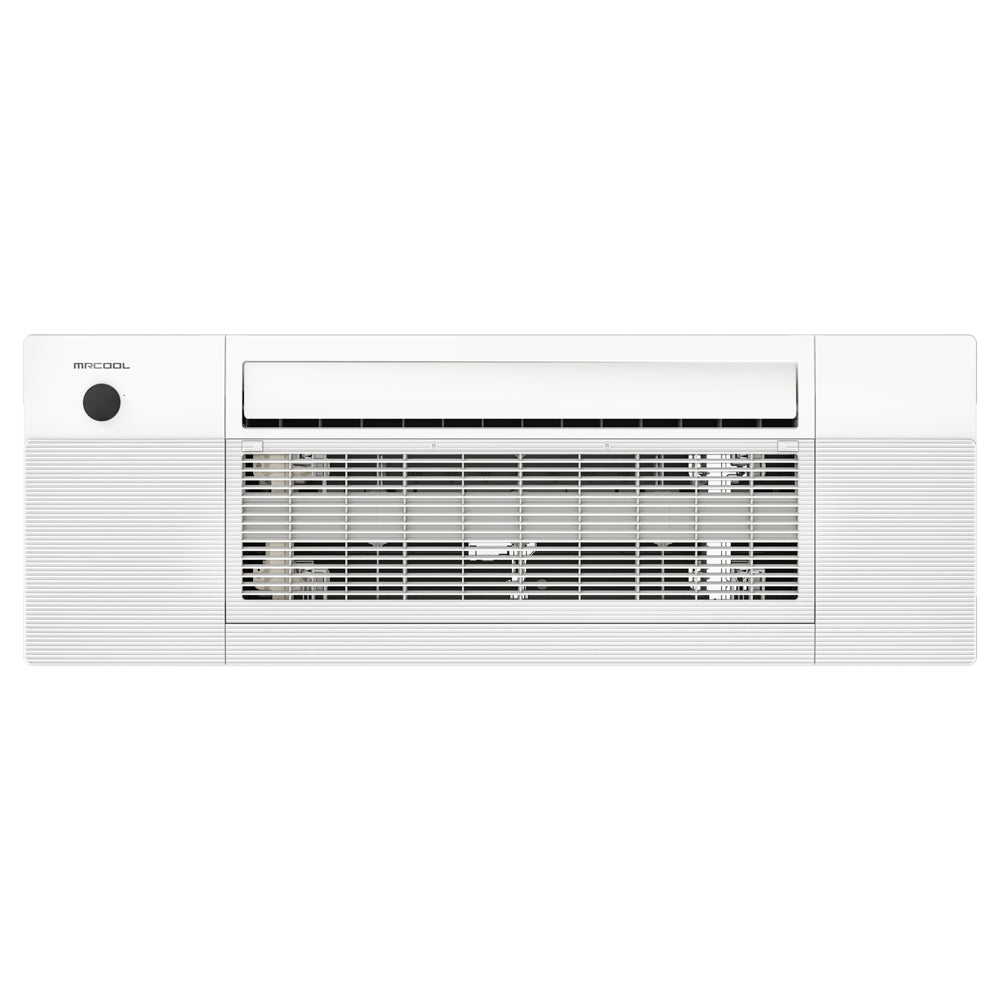

MRCOOL® DIY® Series 5th Gen OuttaSight® 12K BTU 230V One-Way Ceiling Cassette
R-454B | 208-230V
- Uses R-454B refrigerant
- Runs on 208-230V power
Key Specifications
Product Overview
The 5th Generation MRCOOL® DIY® Series Outtasight® 12K BTU 230V One-Way Ceiling Cassette is a sleek, efficient, and space-saving climate solution for areas up to 550 sq. ft. Engineered for easy installation, it seamlessly integrates into multi-zone systems, making it ideal for both new constructions and retrofit projects without requiring ductwork or wall space.
Designed for discreet placement, this cassette mounts flush between 16” ceiling joists, including pre-manufactured I-joists, providing a clean, modern appearance while maximizing room layout flexibility. It connects effortlessly to the MRCOOL® DIY® Quick Connect® line set, which comes pre-charged with R-454B, a more environmentally friendly refrigerant, eliminating the need for vacuuming and reducing installation time.
With advanced filtration technology, this unit enhances indoor air quality, while the Elevation function lowers the filter panel for easy maintenance and cleaning. It operates quietly, ensuring a comfortable and peaceful environment in any room.
The cassette is fully controllable through a wireless remote, SmartHVAC app, and voice commands via Amazon Alexa and Google Assistant, giving you ultimate convenience and customization. Backed by a 7-year compressor and 5-year parts warranty, with eligibility for the MRCOOL® Care Program, this system offers long-term dependability and year-round comfort.
Features
- Low Profile Installation
- Fits between 16" Ceiling Joists
- Works with Multi and Single Zone Systems
- Two-Stage DC motor
- Quiet Operation
- Multiple Operating Modes
- Remote Included
- Advanced Filtration
- Swing Technology
Additional specifications
| UPC | 840255587518 |
|---|---|
| Series | DIY 5th Gen OuttaSight |
| Airflow (CFM) | 353 / 312 / 283 / 247 / 177 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 3 |
| Max fuse / breaker (A) | 15 |
| Filter type | Reusable |
| Mount type | Ceiling |
| Max coverage area | 550 |
| Sound level low (dBA) | 24 |
| Sound level high (dBA) | 41 |
| Wi-Fi capable | Yes |
| Remote included | Yes |
| Parts warranty (years) | 5 Years |
| Compressor warranty (yrs) | 7 Years |
| Shipping W x H x D (in) | 57.6 x 22.64 x 22.48 |
| Shipping weight (lbs) | 88 |
Documents
- Specification sheet (PDF)
- Installation manual (PDF)
- Service manual (PDF)
- Remote manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Mini-Split |
|---|---|
| Sound Level | 37 dBA |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
| Connection Size | Liquid 1/4" / Suction 3/8" |
Physical & Certifications
| Dimensions (W x H x D) | 50.31 x 8.98 x 13.19 |
|---|---|
| Weight | 45 lb |
| Color / Finish | White |
Shipping & Delivery
Installation video
Published by MRCOOL. Watch the full walkthrough before you start, and follow the installation manual for this model — the video is a guide, not a substitute for it.
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
