MRCOOL

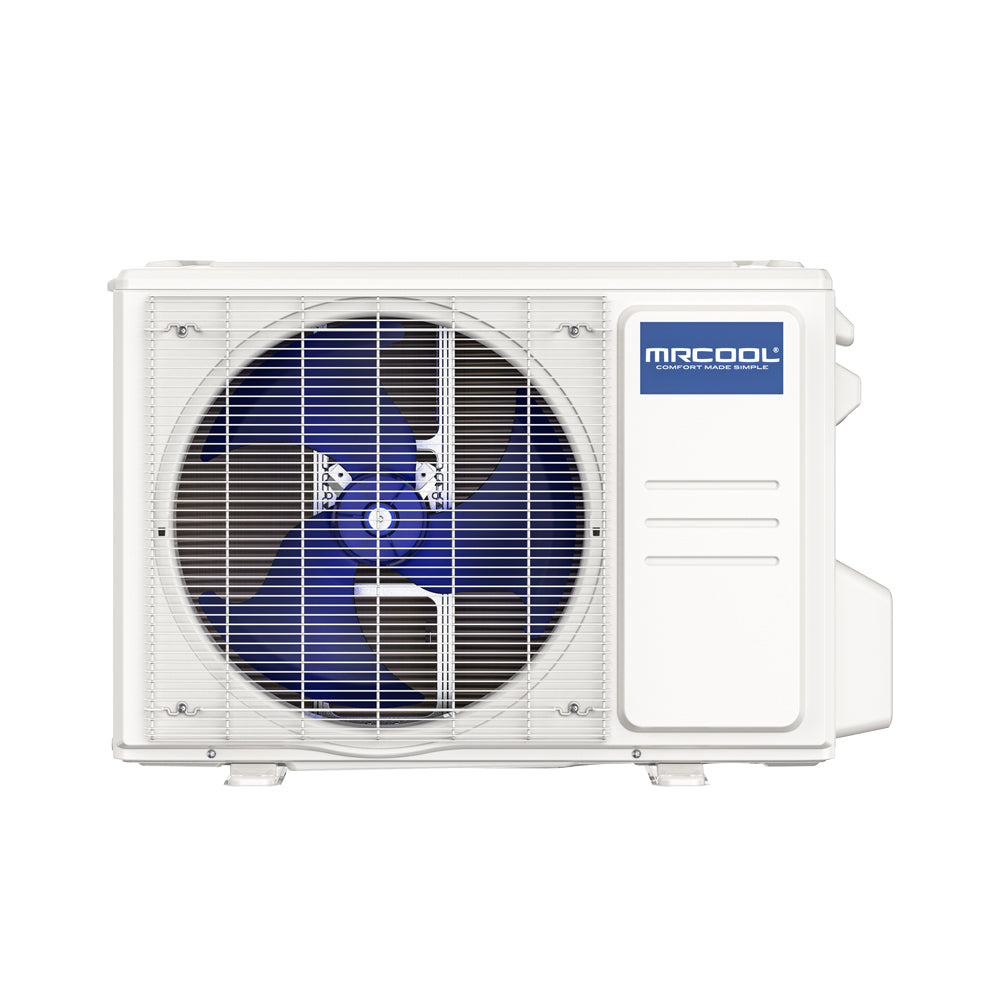

MRCOOL DIY Easy Pro® - R454B DIY 24K BTU Ductless Mini-Split Heat Pump Condenser, 230V, with 11.5 ft Install Kit
2 Ton | SEER2 18.9 | R-454B | 208/230V
- 24000 BTU cooling capacity
- Up to 18.9 SEER2 rated efficiency
- Rotary compressor
- Uses R-454B refrigerant
Key Specifications
Product Overview
The MRCOOL® EasyPro® 24K BTU 230V Ductless Heat Pump Single Zone Mini-Split Condenser is designed to make high-performance home comfort simple and affordable for everyday homeowners. Built for true do-it-yourself installation, it requires no special tools or HVAC experience, making it an ideal solution for living rooms, open layouts, large basements, and bonus rooms up to 1,050 square feet.
Despite its easy installation, the EasyPro® 24K delivers powerful, efficient performance. With an 18.9 SEER2 cooling rating and an 8.7 HSPF2-4 heating efficiency, it provides reliable year-round comfort while helping reduce energy use and lower monthly utility costs.
Installation is streamlined with the included 11.5-foot Quick Connect® line set, which arrives factory pre-charged with environmentally friendly R-454B refrigerant. This eliminates vacuum pumps and refrigerant handling, making setup faster, cleaner, and far less intimidating for first-time installers.
Daily operation is just as convenient. The included wireless remote and the MRCOOL® Comfort app let you adjust temperatures, create schedules, and monitor energy use from virtually anywhere. Amazon Alexa and Google Assistant compatibility adds hands-free control for extra convenience.
Features like Dry Mode, Sleep Mode, Auto Mode, and programmable scheduling automatically optimize comfort and efficiency, while a Gold Fin® condenser coating enhances durability in humid or coastal environments.
Backed by a 5-year compressor warranty and 3-year parts warranty, the MRCOOL® EasyPro® 24K Condenser delivers dependable comfort you can trust.
Additional specifications
| UPC | 840255595995 |
|---|---|
| Series | DIY EasyPro |
| Refrigerant charge (oz) | 50.44 |
| Heating capacity (BTU/h) | 25000 |
| HSPF2 (region V) | 6.9 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 19 |
| Max fuse / breaker (A) | 20 |
| Inverter | Yes |
| Metering device | EEV |
| Line set included (ft) | 11.5 ft. |
| Max line set length (ft) | 75 ft. |
| AHRI certified | Yes |
| ENERGY STAR certified | No |
| UL listed | Yes |
| ETL listed | Yes |
| Parts warranty (years) | 3 Year Parts |
| Compressor warranty (yrs) | 5 Year Compressor |
| Shipping W x H x D (in) | 39.17 x 29.13 x 15.67 |
| Shipping weight (lbs) | 117.73 |
Documents
- Installation manual (PDF)
- Service manual (PDF)
- Remote manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Mini Split Condenser |
|---|---|
| Capacity | 24000 BTU |
| Tonnage | 2 Ton |
| Compressor / Stages | Rotary |
| SEER2 | 18.9 |
| EER2 | 9.7 |
| HSPF2 | 8.7 |
| Sound Level | 61 dBA |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
| Connection Size | Liquid 3/8" / Suction 5/8" |
Physical & Certifications
| Dimensions (W x H x D) | 35.04 x 26.5 x 13.46 |
|---|---|
| Weight | 95.9 lb |
| Color / Finish | White |
Shipping & Delivery
Installation video
Published by MRCOOL. Watch the full walkthrough before you start, and follow the installation manual for this model — the video is a guide, not a substitute for it.
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
