MRCOOL® DIY 4th Gen Multi-Zone 3-Zone Condenser

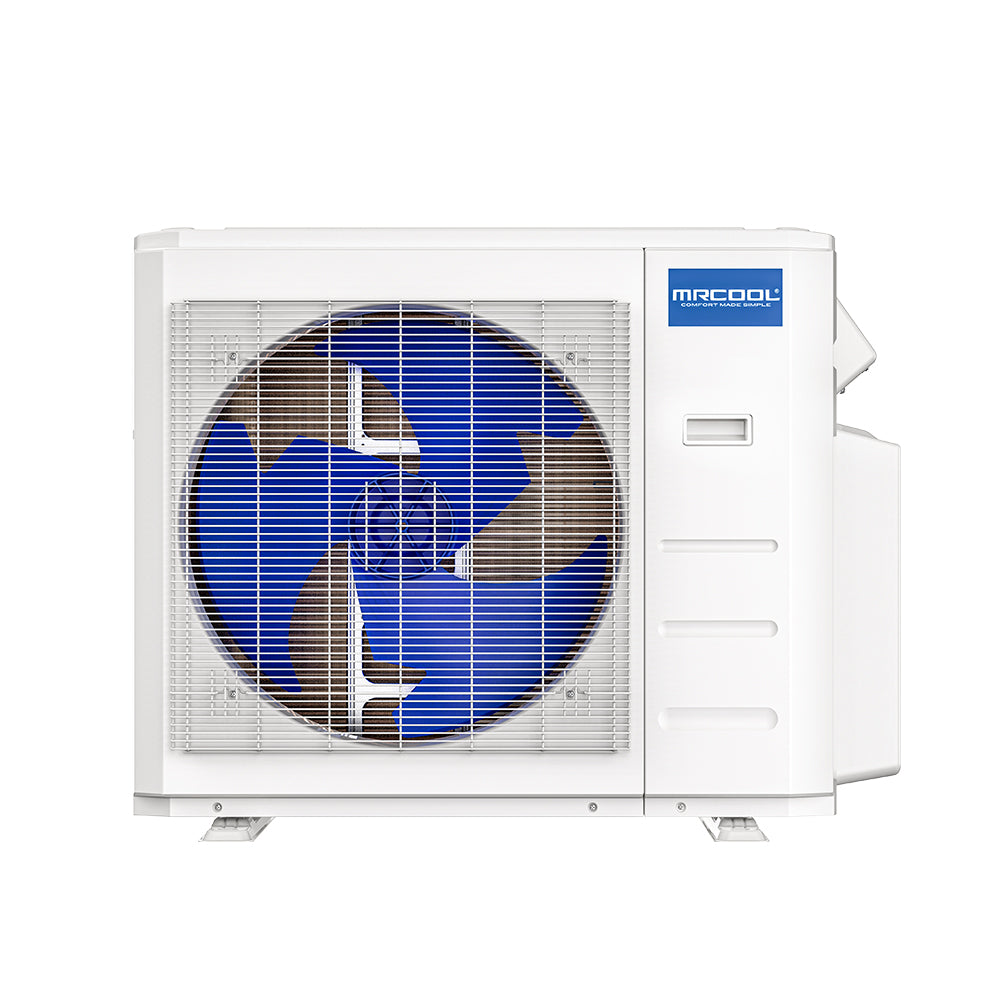

Introducing the 4th Generation MRCOOL® DIY® 27K BTU 3-Zone Ductless Heat Pump Condenser which is one of the most capable heat pumps on the market. When this 3-zone condenser is matched with select MRCOOL® air handlers, it can produce a highly effective 22 SEER efficiency rating. It can also provide heating performance all the way down to -13°F. With its Gold Fin® condenser coating, it is sure to withstand the seasons, enduring especially well in coastal or humid climates. The cornerstone of this heat pump is its ability to be a Do-It-Yourself project. When used with MRCOOL’s® patented Pre-Charged Quick Connect® Line Set, the refrigerant piping can be connected with simple hand tools and does not require the services of a certified technician. It comes pre-charged with the correct amount of R-410A refrigerant so, once installed, it does not require vacuuming. Built for reliability, the MRCOOL® DIY® 27K system is protected by a 7-year compressor warranty and 5-year parts coverage, with MRCOOL® Care Program eligibility.

Features

• Up to 22 SEER
• Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
• Energy Efficient DC Inverter
• R-410A environmentally friendly refrigerant
• Standard 7-year compressor/5-year parts warranty
• Line sizes 1/4”, 1/2” & 3/8”, 5/8”

Additional specifications

Documents

• Specification sheet (PDF)
• Installation manual (PDF)
• Owner's manual (PDF)
• Service manual (PDF)
• Remote manual (PDF)
• Technical manual (PDF)
• Brochure (PDF)
• AHRI certificate (PDF)
• EnergyGuide label (PDF)
