MRCOOL
MRCOOL® Advantage series 36K BTU Heat Pump Condenser 230 volt
SEER2 17.5 | R-410A | 208-230V
- 36000 BTU cooling capacity
- Up to 17.5 SEER2 rated efficiency
- Uses R-410A refrigerant
- Runs on 208-230V power
Key Specifications

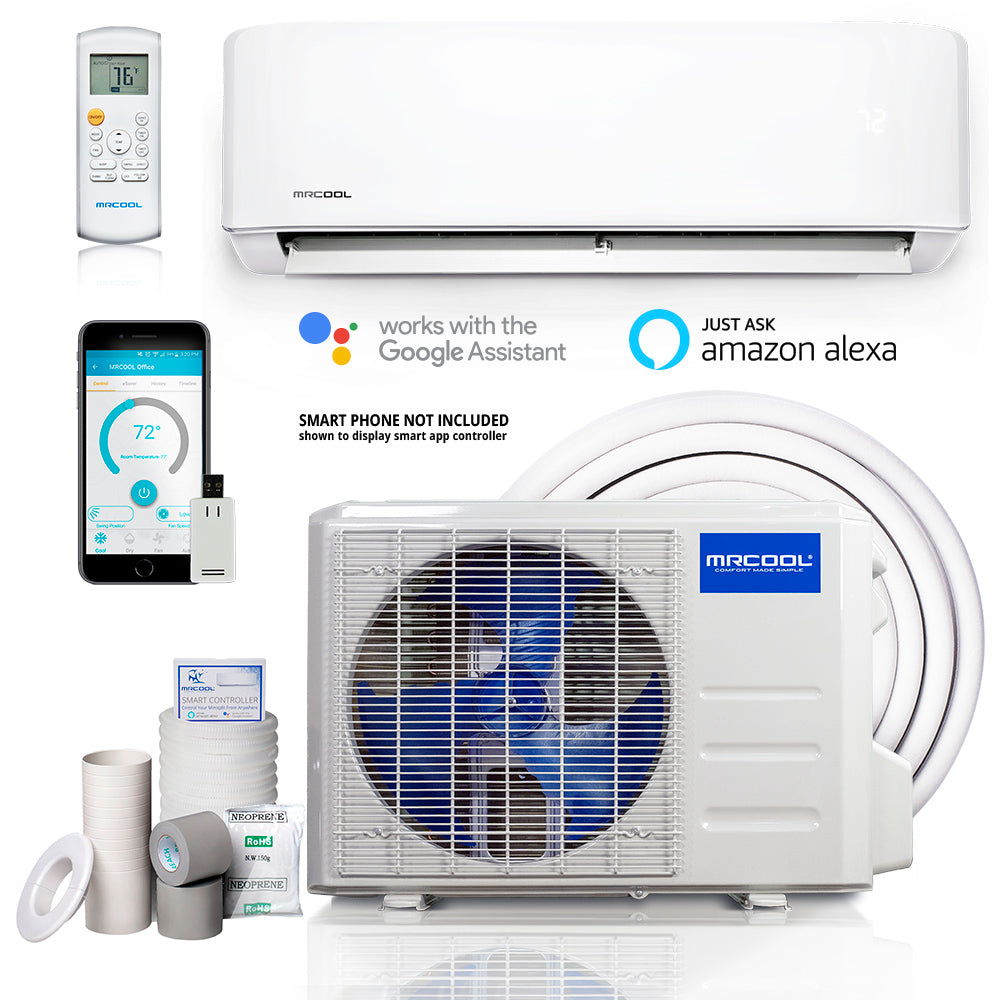

Designed to be installed by an HVAC technician, this 4th generation MRCOOL Advantage Series is now efficiently rated at 17.5 SEER. Immediately upon installation, this quality mini-split system provides high quality comfort with a price point that’s hard to beat. This combination air handler and condenser is great for those looking for quality, efficiency, quiet operation, and affordability. The high performance compressor features the eco-friendly refrigerant R-410A that is chlorine-free. This MRCOOL Advantage system incorporates both quality and superior technological control with its WiFi control module. It aids in easier setup and you’re able to control it with the SmartHVAC app, or your Amazon Alexa or Google Assistant.
Features
- Installation kit included
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- The new 4th generation Advantage systems include our SmartHVAC WiFi Control Module with improved setup and enhanced functionality for Apple and Android smart devices. Works with Amazon Alexa. Works with Google Assistant.
- Installation by a licensed professional required where applicable
- 1-Year Compressor, 2-Year Parts and 1-Year Remote Warranty when registered and when installed by a licensed professional
- R-410A environmentally friendly refrigerant
- Sleep mode, louver position memory, and auto restart functions
- Convenient for installation and maintenance, compact design of outdoor unit, totally enclosed, permanently lubricated condenser fan motor
Additional specifications
| UPC | 840255521666 |
|---|---|
| Series | Advantage Series 4th Gen Condenser |
| Refrigerant charge (oz) | 119.9 |
| Heating capacity (BTU/h) | 36000 |
| HSPF2 (region V) | 6.8 |
| SEER | 17.5 |
| EER | 8.5 |
| HSPF (region IV) | 12 |
| HSPF (region V) | 8 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 28 |
| Max fuse / breaker (A) | 35 |
| AHRI certified | Yes |
| ENERGY STAR certified | No |
| UL listed | Yes |
| ETL listed | Yes |
| Parts warranty (years) | None |
| Compressor warranty (yrs) | None |
| Shipping W x H x D (in) | 42.91 x 34.84 x 19.69 |
| Shipping weight (lbs) | 159 |
Documents
- Installation manual (PDF)
- Service manual (PDF)
- Remote manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical specifications
Performance
| System Type | Mini-Split |
|---|---|
| Capacity | 36000 BTU |
| SEER2 | 17.5 |
| EER2 | 8.5 |
| HSPF2 | 8.7 |
| Sound Level | 63.5 dBA |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-410A |
| Connection Size | Liquid 3/8" / Suction 5/8" |
Physical & Certifications
| Dimensions (W x H x D) | 37.24 x 31.89 x 16.14 |
|---|---|
| Weight | 150.13 lb |
| Color / Finish | White |
Manufacturer warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Shipping to your state
How your state compares
Shipping & delivery
Cancellations & returns
Cancel for a full refund any time before the order is submitted for fulfillment. After that, cancelling may carry carrier, return freight or restocking fees.
Returns must be requested within 30 days of delivery and approved in writing before anything is sent back. Items must be unused, never installed or powered on, and in the original packaging. A restocking fee of up to 25% may apply, and return shipping is the buyer’s cost unless the error was ours.
Inspect the delivery before you sign. Damage written on the delivery receipt is covered; damage found after a clean signature is very hard to claim.
Installed right, warranty intact
Have this installed by a licensed HVAC contractor. It keeps the install safe and to code, and most manufacturers require it for warranty coverage. If you don’t have one, we’ll find licensed installers near you.
-
Licensed HVAC installMost manufacturers require it for warranty coverage.
-
Dedicated circuitIts own breaker and a shutoff near the outdoor unit, to local code.
-
Keep the invoiceWarranty claims ask for proof of installation.
What happens next
-
Order confirmed
You get an email the same day with your order number and the model number of everything on the order.
-
Delivery booked
For freight items the carrier calls to arrange a window. Somebody needs to be there — curbside freight is not a doorstep drop.
-
Inspect, then sign
Walk the pallet before you sign. Note any damage on the delivery receipt — that receipt is what a freight claim rests on.
Not sure this is the right size?
Sizing equipment off square footage alone is how people end up with a unit that short-cycles. Tell us about the space and we will tell you honestly whether this is the one.
- Load and sizing check
- Line set length and lift
- What your permit will ask for
Other sizes in this line
Frequently asked
Can I install this myself?
It depends on the line. Pre-charged DIY systems are designed so the refrigerant connections are made by hand, with no brazing or vacuum pump. The electrical side — a dedicated circuit and disconnect — is licensed work in most jurisdictions whoever hangs the units. Everything else needs a licensed installer throughout.
Why is shipping not free on some items?
Anything that ships on a pallet goes LTL freight, and that cost varies by destination far more than parcel does. Where we hold a carrier quote we show you the real number for your state rather than burying an average in the price.
Does installing it myself void the warranty?
On the DIY lines, no — that is what they are built for. Registration inside the manufacturer's window is what matters. The warranty document for this model is in the Documents tab.
What if it turns up damaged?
Note it on the delivery receipt before you sign and photograph it at the curb, then call us. A signed-clean receipt makes a freight claim very difficult to win, so those two minutes matter.
Can you help me work out what I need?
Yes. Call or email before you order and we will go through capacity, line set run and what your inspector will want to see.
