MRCOOL

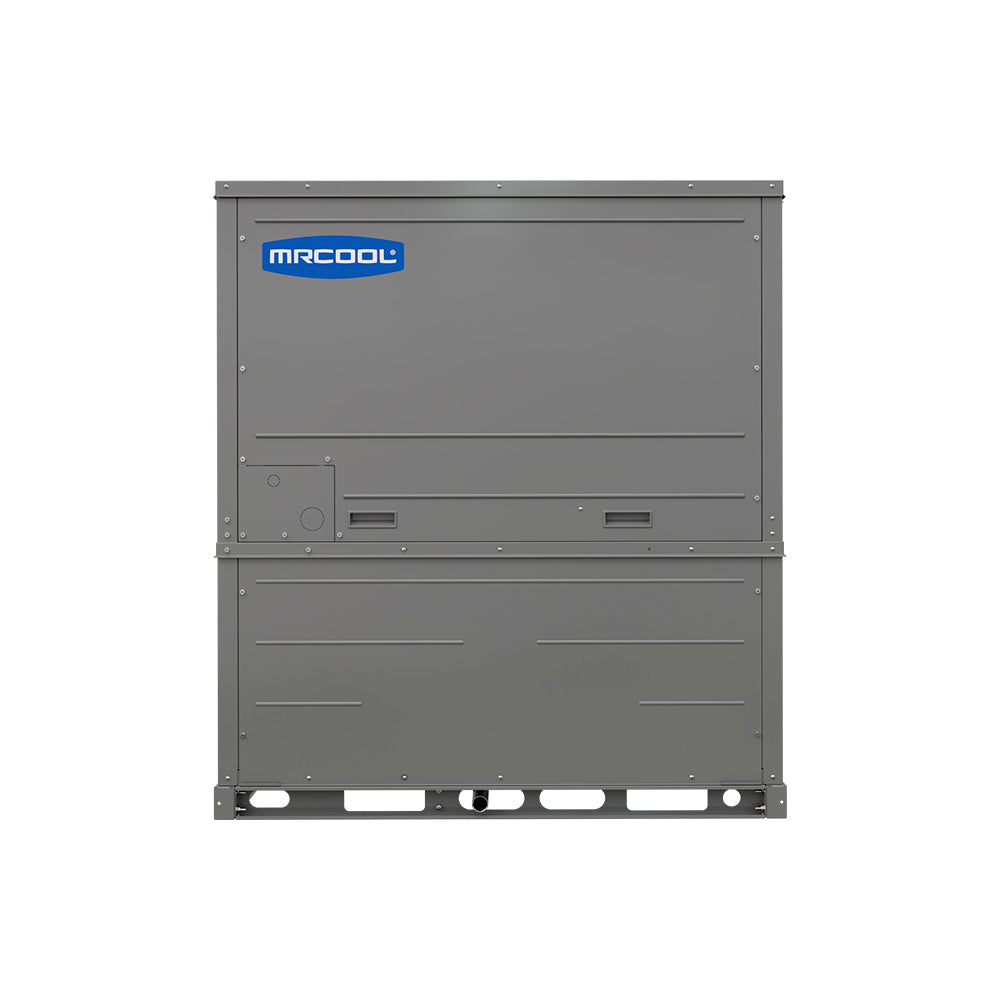

MRCOOL DC Inverter 60K BTU 5T, R32, 18 SEER2 Single Phase Packaged Heat Pump
5 Ton | SEER2 18 | R-32 | 208/230V
- 56000 BTU cooling capacity
- Up to 18 SEER2 rated efficiency
- Inverter Rotary compressor
- Uses R-32 refrigerant
Key Specifications
Product Overview
The MRCOOL® 2nd Generation Universal® Series 60K Inverter Packaged Heat Pump is an advanced all-in-one solution designed to provide reliable comfort, lower energy costs, and environmentally responsible performance.
With its inverter-driven compressor, the system operates at variable speeds, constantly adjusting to the heating and cooling demands of your home. This ensures steadier temperatures, reduced energy use, quieter operation, and less wear on the unit compared to traditional systems that frequently cycle on and off.
Rated at a SEER2 of 18, this heat pump significantly improves efficiency and helps cut monthly utility bills while maintaining strong performance and airflow. It is built for extreme weather, capable of heating in conditions as low as –22°F (–30°C) and cooling in temperatures as high as 125°F (52°C). This wide operating range makes it a dependable option in virtually any climate.
The system uses R-32 refrigerant, a modern, lower-GWP choice that reduces environmental impact while meeting today’s ecological standards. By selecting this refrigerant, MRCOOL® combines sustainability with the powerful performance homeowners expect.
Installation is simplified thanks to a flexible multi-position design that supports downflow and horizontal applications.
Engineered for durability and year-round operation, the Universal® 60K is backed by a 10-year parts and labor warranty, giving homeowners confidence in long-term reliability. It is an efficient, eco-friendly, and versatile investment in lasting comfort.
Features
- Inverter Technology
- Energy Efficient
- Flexible air return
- Fast heating & cooling
- Intelligent defrosting
- Energy Star Cold Climate Certified
- 10 year labor warranty included
Additional specifications
| UPC | 840255588843 |
|---|---|
| Series | Universal Package R32 |
| Refrigerant charge (oz) | 204.6 |
| Heating capacity (BTU/h) | 57,000 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 39.1 |
| Max fuse / breaker (A) | 45 |
| Inverter | Yes |
| Blower motor type | Direct Drive |
| Blower speeds | 9 |
| Metering device | EEV |
| Drain connection (in) | 3/4 |
| Min ambient cooling (F) | 23 |
| Min ambient heating (F) | -22 |
| Aux heater included | No |
| Aux heater available | Yes |
| Aux heater sizes (kW) | 6kW, 9kW, 12kW |
| Parts warranty (years) | 10 Year Parts |
| Shipping W x H x D (in) | 44.6 x 50.78 x 44.6 |
| Shipping weight (lbs) | 650 |
Documents
Technical Specifications
Performance
| System Type | Package Heat Pump |
|---|---|
| Capacity | 56000 BTU |
| Tonnage | 5 Ton |
| Compressor / Stages | Inverter Rotary |
| SEER2 | 18 |
| EER2 | 11.2 |
| HSPF2 | 8.3 |
| Sound Level | 68 dBA |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-32 |
Physical & Certifications
| Dimensions (W x H x D) | 44 x 49.25 x 44 |
|---|---|
| Weight | 628.3 lb |
| Color / Finish | Grey |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
