MRCOOL

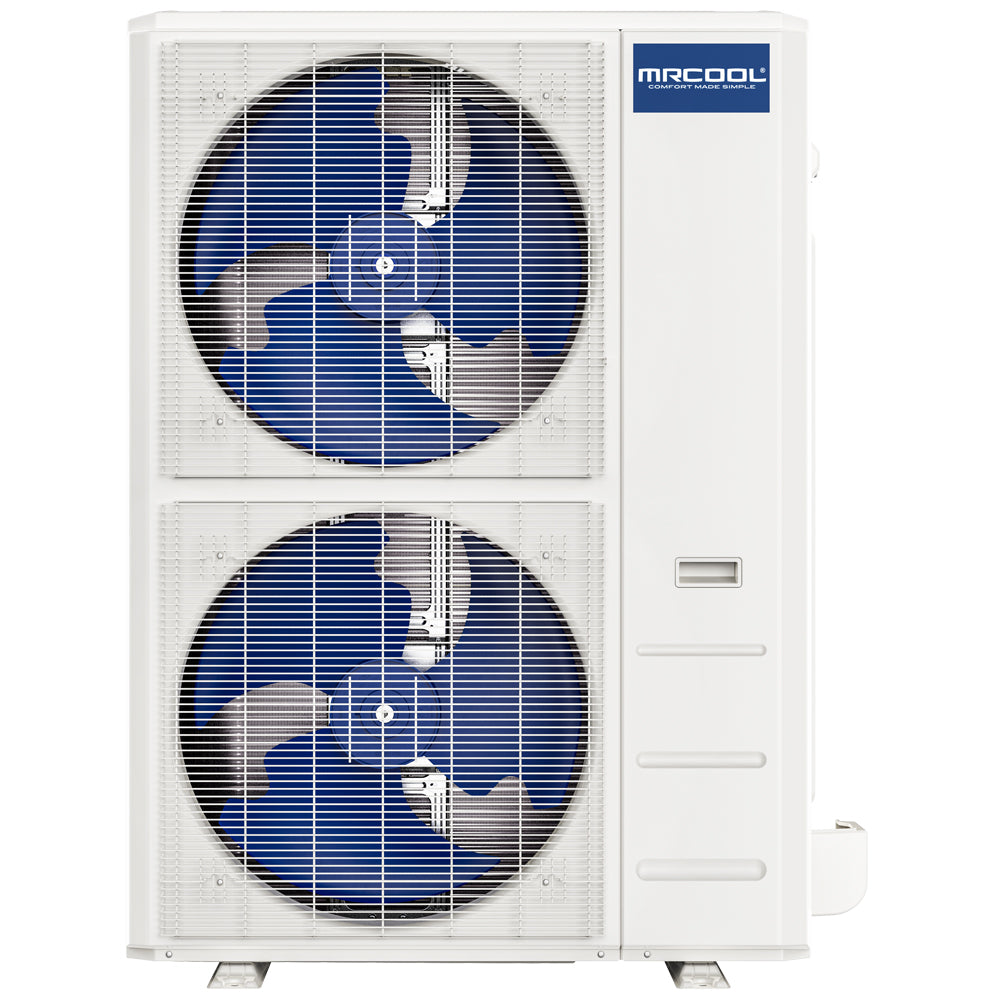

MRCOOL 60K MRCOOL® Hyper Heat Central Ducted Condenser
5 Ton | SEER2 16 | R454B | 208-230V
- 54000 BTU cooling capacity
- Up to 16 SEER2 rated efficiency
- Uses R454B refrigerant
- Runs on 208-230V power
Key Specifications
Product Overview
The 60K MRCOOL® Hyper Heat Central Ducted Condenser is built to perform exceptionally in all weather conditions, whether enduring the chill of winter or the heat of summer.
This advanced Hyper Heat system leverages DC Inverter technology and variable speed capabilities to ensure reliable and efficient operation. With a SEER2 rating of up to 16 and an HSPF2-4 rating of up to 9, it offers robust heating and cooling while optimizing energy usage. The included MRCOOL® Smart thermostat makes it easy to control your home’s climate.
The 60K MRCOOL® VersaPro® Central Ducted Air Handler pairs seamlessly with the 60K MRCOOL® Hyper Heat Central Ducted Condenser. Designed for versatility, the air handler supports a variety of installation options and can be paired with an optional heat kit to enhance functionality. It uses R-454B refrigerant, an eco-conscious choice that reduces environmental impact.
Durability is key to the outdoor heat pump, which is constructed with painted galvanized steel for lasting strength. The air handler is designed for convenience, featuring a compact size, slide-out blower, and a self-diagnostic panel to simplify maintenance and troubleshooting.
With a 10-year warranty covering the compressor, parts, and labor, you can enjoy peace of mind knowing your system is covered. Upgrade your home’s heating and cooling with the reliable, efficient 60K MRCOOL® Hyper Heat Central Ducted Condenser today!
Additional specifications
| UPC | 840255586542 |
|---|---|
| Series | Central Ducted Hyper Heat 2nd Gen |
| Refrigerant charge (oz) | 183.42 |
| Heating capacity (BTU/h) | 56000 |
| HSPF (region IV) | 9 |
| HSPF (region V) | 8 |
| Airflow (CFM) | 2648.6 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 40 |
| Max fuse / breaker (A) | 40 |
| Wi-Fi capable | Yes |
| AHRI certified | Yes |
| ENERGY STAR certified | Yes |
| Parts warranty (years) | 10 Years |
| Compressor warranty (yrs) | 10 Years |
| Shipping W x H x D (in) | 43.11 x 58.27 x 19.49 |
| Shipping weight (lbs) | 275.13 |
Documents
Technical Specifications
Performance
| System Type | Split System Heat Pump |
|---|---|
| Capacity | 54000 BTU |
| Tonnage | 5 Ton |
| SEER2 | 16 |
| EER2 | 10 |
| Sound Level | 65 dBA |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R454B |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 37.48 x 52.48 x 16.34 |
|---|---|
| Weight | 242.95 lb |
| Color / Finish | Gray |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
