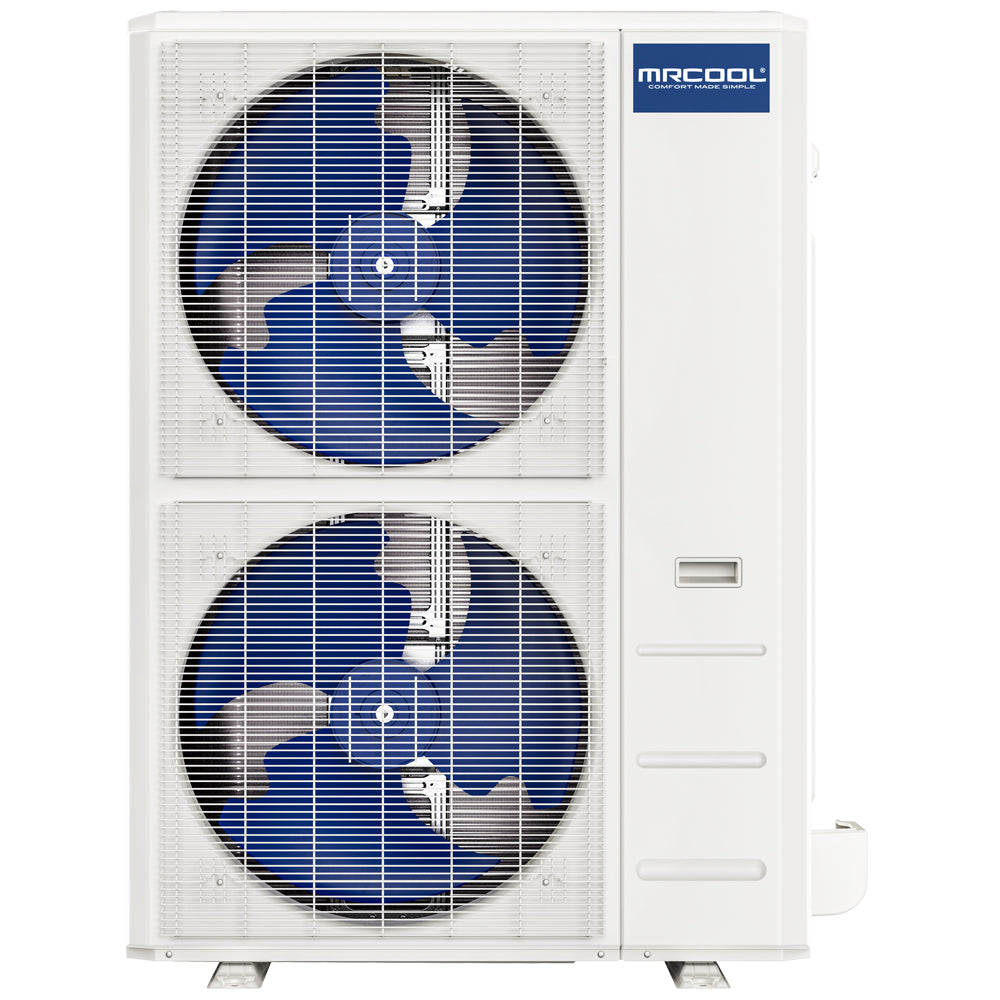

MRCOOL 60K BTU Hyper Heat Central Ducted Heat Pump Condenser
SEER2 15.3 | R-410A | 208-230V
- 55000 BTU cooling capacity
- Up to 15.3 SEER2 rated efficiency
- Uses R-410A refrigerant
- Runs on 208-230V power
Key Specifications
Product Overview
Introducing a cost-effective yet potent heating and cooling option: the 60K BTU MRCOOL® Hyper Heat Central Ducted Heat Pump Condenser, designed to reliably create a comfortable environment without straining your budget. Equipped with a DC Inverter and advanced variable speed technology, the unit achieves exceptional efficiency, resulting in significant utility cost reductions without compromising performance. It boasts an impressive SEER2 rating of up to 15.3 and an HSPF2-4 rating of up to 9.4, thanks to its superior heating capacity, maintaining indoor comfort even when outdoor temperatures fall to -22°F or soar to 122°F. For professional HVAC technicians, installation is simple using the compatible MRCOOL® No-Vac® Quick Connect® Line Set. This innovative line set eliminates the need for vacuuming or flare welding and is kink-resistant, accelerating the connection process and reducing installation costs. Additionally, the unit employs the eco-friendly R-410A refrigerant, ensuring no environmental harm. Constructed with high-quality materials like painted galvanized steel, this durable unit withstands damage from extreme weather, animals, or yard equipment, ensuring reliable performance for years to come. In the unlikely event of any issues, the unit is supported by a 10-year warranty covering the compressor, parts, and labor. Moreover, the labor warranty is automatically activated upon installation, eliminating the need for a time-consuming registration process.
Features
- Enhanced Heating Capacity
- Includes features such as timer mode, auto cool mode, fan only mode, and more
- Wired Thermostat Included (.78 in x 4.72 in x 4.72in)
- Multi-Position Installation
- Variable Speed
- Optional Heat Kit
- Compact, Side Discharge Design
- R-410A environmentally friendly refrigerant
- Follow Me™ Function
- Easy-Access Removable Filter
Additional specifications
| UPC | 840255553087 |
|---|---|
| Series | Central Ducted Hyper Heat |
| Refrigerant charge (oz) | 169.32 |
| Heating capacity (BTU/h) | 59000 |
| HSPF2 (region V) | 7.6 |
| Airflow (CFM) | 4500 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 44 |
| Max fuse / breaker (A) | 60 |
| Inverter | DC |
| Max line set length (ft) | 213.25 |
| Aux heater included | No |
| Aux heater available | Yes |
| AHRI certified | Yes |
| UL listed | Yes |
| Shipping W x H x D (in) | 43.11 x 57.48 x 19.49 |
| Shipping weight (lbs) | 272 |
Documents
- Specification sheet (PDF)
- Installation manual (PDF)
- Service manual (PDF)
- Remote manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Mini Split Condenser |
|---|---|
| Capacity | 55000 BTU |
| SEER2 | 15.3 |
| EER2 | 8.8 |
| HSPF2 | 9.4 |
| Sound Level | 63.5 dBA |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-410A |
| Connection Size | Liquid 3/8" / Suction 7/8" |
Physical & Certifications
| Dimensions (W x H x D) | 37.48 x 52.48 x 16.34 |
|---|---|
| Weight | 240.96 lb |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
