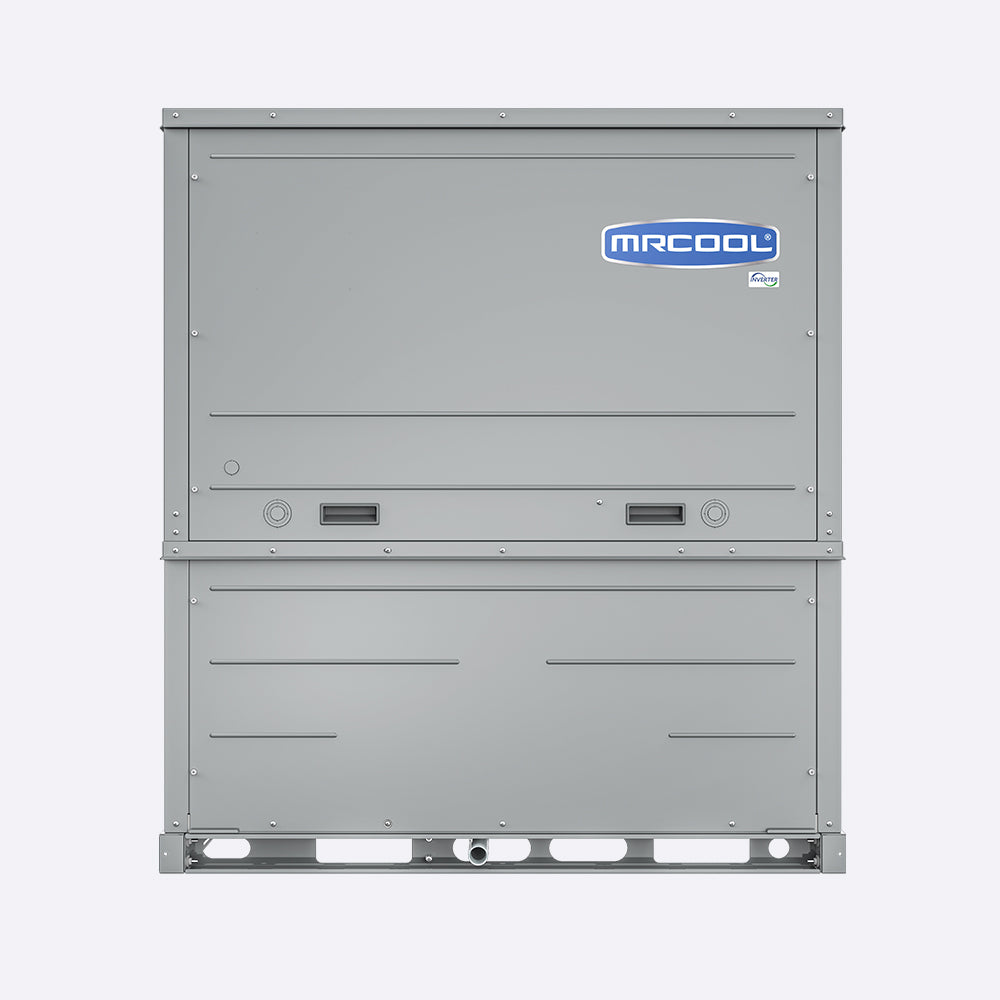

MRCOOL® 60k BTU 17 SEER2 Universal DC Inverter Packaged Heat Pump-R410A
5 Ton | SEER2 17 | R410A | 208-230V
- 56000 BTU cooling capacity
- Up to 17 SEER2 rated efficiency
- Inverter Rotary compressor
- Uses R410A refrigerant
Key Specifications
Experience top-tier heating and cooling efficiency while simultaneously reducing utility bills and lessening your environmental footprint with the MRCOOL® DC Inverter Package Heat Pump. This energy-efficient ducted system delivers comfort through a single, conveniently packaged outdoor unit, all without the need for fossil fuels. The root of its exceptional efficiency lies in the variable speed DC compressor, which minimizes power loss, ensuring the unit operates at a notably lower noise level. This translates into uninterrupted regulation of room temperature to cater to individual preferences. The compressor and DC motor's adjustable speeds provide a wide range of cooling and heating, spanning from -22°F to 125°F. The unit also offers versatile air return options from either the side or the bottom, accommodating both traditional and rooftop installations. For added flexibility, optional heat kits are available to suit specific requirements. What sets the MRCOOL® DC Inverter Package Heat Pump apart is its rapid response to indoor and outdoor temperature changes, efficiently adapting to load demands. Additionally, its intelligent defrosting technology enhances winter heating performance by assessing frost conditions. Rest assured in your investment with 10-year warranties covering labor, parts, and the compressor—all without the need for cumbersome registration processes. Elevate your comfort, energy efficiency, and peace of mind today with MRCOOL®
Features
- Wired thermostat included
- Inverter Technology
- Energy Efficient
- Flexible air return
- Fast heating & cooling
- Intelligent defrosting
- 10 year labor warranty included
- Conforms to UL Std. 60335-1, 60335-2-40
- Certified to CSA Std. C22.2 No. 60335-1, 60335-2-40
- Intertek #3097844
Additional specifications
| UPC | 840255578271 |
|---|---|
| Series | Universal Series Inverter Packaged Heat Pump |
| Refrigerant charge (oz) | 236.4 |
| Heating capacity (BTU/h) | 57000 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 39.1 |
| Max fuse / breaker (A) | 45 |
| Inverter | DC |
| Blower motor type | DC |
| Blower motor HP | 1 |
| Filter type | Washable Aluminum |
| Filter size | 29 5/16 x 13 1/4 x 3/5 in |
| Sound level high (dBA) | 78 |
| Min ambient cooling (F) | 23 ~ 125 |
| Min ambient heating (F) | -22~75.2 |
| Aux heater included | no |
| Aux heater available | yes |
| Aux heater sizes (kW) | 5kW, 10kW, 15kW, 20kW |
| Wi-Fi capable | no |
| AHRI certified | yes |
| ENERGY STAR certified | yes |
| ETL listed | yes |
| Parts warranty (years) | 10 years |
| Compressor warranty (yrs) | 10 years |
| Shipping W x H x D (in) | 44.63 x 50.81 x 44.63 |
| Shipping weight (lbs) | 650 |
Documents
Technical specifications
Performance
| System Type | Package Heat Pump |
|---|---|
| Capacity | 56000 BTU |
| Tonnage | 5 Ton |
| Compressor / Stages | Inverter Rotary |
| SEER2 | 17 |
| EER2 | 10.6 |
| HSPF2 | 8.3 |
| Sound Level | 68 dBA |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R410A |
Physical & Certifications
| Dimensions (W x H x D) | 44 x 49.25 x 44 |
|---|---|
| Weight | 628 lb |
Manufacturer warranty
