MRCOOL
MRCOOL 5 Ton MRCOOL® VersaPro® Central Ducted System
5 Ton | SEER2 15.2 | R454B | 208-230V
- 54000 BTU cooling capacity
- Up to 15.2 SEER2 rated efficiency
- Uses R454B refrigerant
- Runs on 208-230V power
Key Specifications
MRCOOL 5 Ton MRCOOL® VersaPro® Central Ducted System.
What this system is
- MVP-60-HP-C-230A00-O — 5 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser
- MVP-60-HP-MUAH-230A00-O — 5 Ton MRCOOL® VersaPro® Central Ducted Air Handler

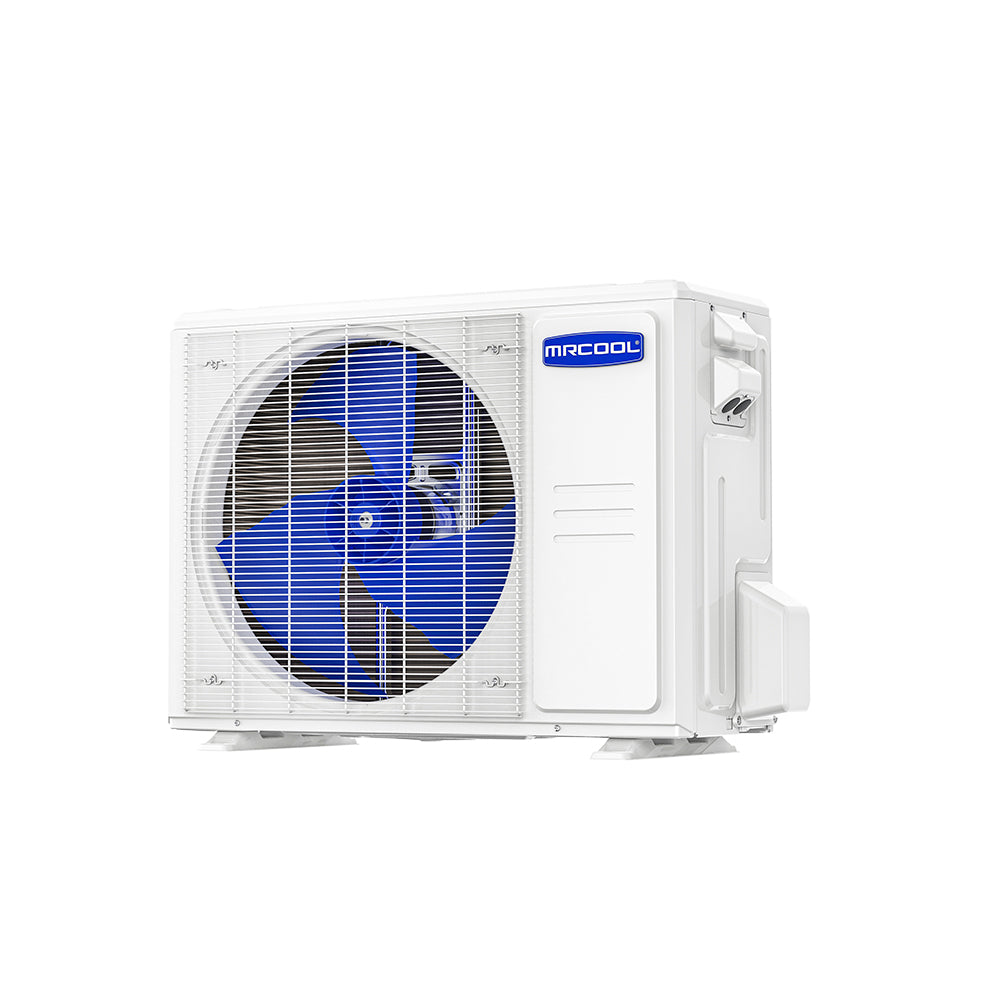

Outdoor condenser — MVP-60-HP-C-230A00-O
Designed for consistent heating and cooling, the 5 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser provides comfort and efficiency throughout every season. This advanced 60k variable-speed unit features a SEER2 rating of 15.2 and an HSPF4 rating of 8.4, delivering reliable heating and cooling without excessive energy use. Paired with the MRCOOL® Central Ducted Air Handler, it forms a high-quality system tailored to your home’s specific needs. The DC inverter technology ensures smooth, quiet operation while helping to control utility costs, making it an ideal upgrade for older systems. With the included MRCOOL® Smart thermostat and wireless remote, you can adjust the temperature effortlessly, right at your fingertips. The VersaPro® condenser also prioritizes sustainability with its use of eco-friendly R-454B refrigerant. Built to last, it features a durable painted galvanized steel construction and a compact side-discharge design that simplifies installation in smaller spaces. Maintenance is straightforward thanks to integrated self-diagnostics that help quickly identify issues. For added peace of mind, the 5 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser is backed by a 10-year warranty covering the compressor and parts. This ensures long-term reliability and protects your investment. Upgrade your HVAC system today and enjoy consistent, dependable comfort in every season.aDesigned for consistent heating and cooling, the 5 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser provides comfort and efficiency throughout every season.
This advanced 60k variable-speed unit features a SEER2 rating of 15.2 and an HSPF4 rating of 8.4, delivering reliable heating and cooling without excessive energy use. Paired with the MRCOOL® VersaPro® Central Ducted Air Handler, it forms a high-quality system tailored to your home’s specific needs. The DC inverter technology ensures smooth, quiet operation while helping to control utility costs, making it an ideal upgrade for older systems. With the included MRCOOL® Smart thermostat, you can adjust the temperature effortlessly, right at your fingertips.
The VersaPro® condenser also prioritizes sustainability with its use of eco-friendly R-454B refrigerant. Built to last, it features a durable painted galvanized steel construction and a compact side-discharge design that simplifies installation in smaller spaces. Maintenance is straightforward thanks to integrated self-diagnostics that help quickly identify issues.
For added peace of mind, the 5 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser is backed by a 10-year warranty covering the compressor and parts. This ensures long-term reliability and protects your investment. Upgrade your HVAC system today and enjoy consistent, dependable comfort in every season.
| Model number | MVP-60-HP-C-230A00-O |
|---|---|
| UPC | 840255586436 |
| Series | VersaPro® Central Ducted Condenser |
| Unit type | Split System Heat Pump |
| Equipment type | Condenser |
| Refrigerant | R454B |
| Refrigerant charge (oz) | 134.04 |
| Nominal tonnage | 5 |
| Cooling capacity (BTU/h) | 54000 |
| Heating capacity (BTU/h) | 54000 |
| SEER2 | 15.2 |
| EER2 | 8.6 |
| HSPF (region IV) | 8.4 |
| HSPF (region V) | 6.8 |
| Airflow (CFM) | 3037.1 |
| Voltage | 208-230 |
| Phase | 1 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 39 |
| Max fuse / breaker (A) | 40 |
| Liquid line size (in) | 3/8 |
| Suction line size (in) | 3/4 |
| Sound level (dBA) | 65 |
| Colour | Gray |
| Wi-Fi capable | Yes |
| AHRI certified | Yes |
| ENERGY STAR certified | Yes |
| Parts warranty (years) | 10 Years |
| Compressor warranty (yrs) | 10 Years |
| Net W x H x D (in) | 38.58 x 38.39 x 16.34 |
| Net weight (lbs) | 192.9 |
| Shipping W x H x D (in) | 45.08 x 42.52 x 19.68 |
| Shipping weight (lbs) | 224.21 |
Indoor unit — MVP-60-HP-MUAH-230A00-O
The 5 Ton MRCOOL® VersaPro® Central Ducted Air Handler is a reliable and efficient solution for year-round heating and cooling in spaces up to 2,500 square feet. With a SEER2 rating of up to 16, it offers energy-efficient climate control for your home. This air handler is designed to withstand everyday use and is built with durable, painted galvanized steel. It includes a self-diagnostics panel that helps quickly identify and resolve any issues, making maintenance straightforward.
This unit provides flexible installation options, including upflow, downflow, and horizontal left or right configurations, ensuring it fits various room layouts. It uses R-454B refrigerant, which is eco-friendly and reduces environmental impact. For those needing extra warmth, an optional heat kit can be added to expand the unit's capabilities.
The included MRCOOL® Smart Thermostat provides accurate and dependable temperature control, ensuring optimal comfort in your home. It is also compatible with the MRCOOL® SmartHVAC app, allowing for convenient remote access and control.
This air handler is fully compatible with our Central Ducted Hyper Heat Condenser. With a 10-year warranty, the 5 Ton MRCOOL® VersaPro® Central Ducted Air Handler is a dependable and efficient option to enhance your home's comfort. This user-friendly system is built to last and provides effective climate control throughout the year.
| Model number | MVP-60-HP-MUAH-230A00-O |
|---|---|
| UPC | 840255586498 |
| Series | VersaPro® Central Ducted Air Handler |
| Unit type | Split System Heat Pump |
| Equipment type | Air Handler |
| Nominal tonnage | 5 |
| Airflow (CFM) | 1807.00/1583.33/1359.67/1136.00 |
| Voltage | 115/208-230 |
| Phase | 1 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 14.5/11.0 |
| Max fuse / breaker (A) | 15 |
| Liquid line size (in) | 3/8 |
| Suction line size (in) | 3/4 |
| Max line set length (ft) | 246 ft |
| Filter type | Replaceable |
| Filter size | 23x20x1 |
| Sound level low (dBA) | 34.5 |
| Sound level high (dBA) | 56 |
| Colour | Gray |
| Aux heater included | No |
| Aux heater available | Yes |
| Aux heater sizes (kW) | 10kW/15kW/20kW |
| Wi-Fi capable | Yes |
| AHRI certified | Yes |
| ENERGY STAR certified | Yes |
| Parts warranty (years) | 10 Years |
| Compressor warranty (yrs) | 10 Years |
| Net W x H x D (in) | 24.49 x 52.99 x 21.02 |
| Net weight (lbs) | 162.92 |
| Shipping W x H x D (in) | 26.77 x 56.5 x 27.95 |
| Shipping weight (lbs) | 190.92 |
Documents
- Specification sheet (MVP-60-HP-C-230A00-O) (PDF)
- Installation manual (MVP-60-HP-C-230A00-O) (PDF)
- Service manual (MVP-60-HP-C-230A00-O) (PDF)
- Brochure (MVP-60-HP-C-230A00-O) (PDF)
- Warranty (MVP-60-HP-C-230A00-O) (PDF)
- AHRI certificate (MVP-60-HP-C-230A00-O) (PDF)
- EnergyGuide label (MVP-60-HP-C-230A00-O) (PDF)
- Service manual (MVP-60-HP-MUAH-230A00-O) (PDF)
Technical specifications
Performance
| System Type | Split System Heat Pump |
|---|---|
| Capacity | 54000 BTU |
| Tonnage | 5 Ton |
| SEER2 | 15.2 |
| EER2 | 8.6 |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R454B |
