MRCOOL

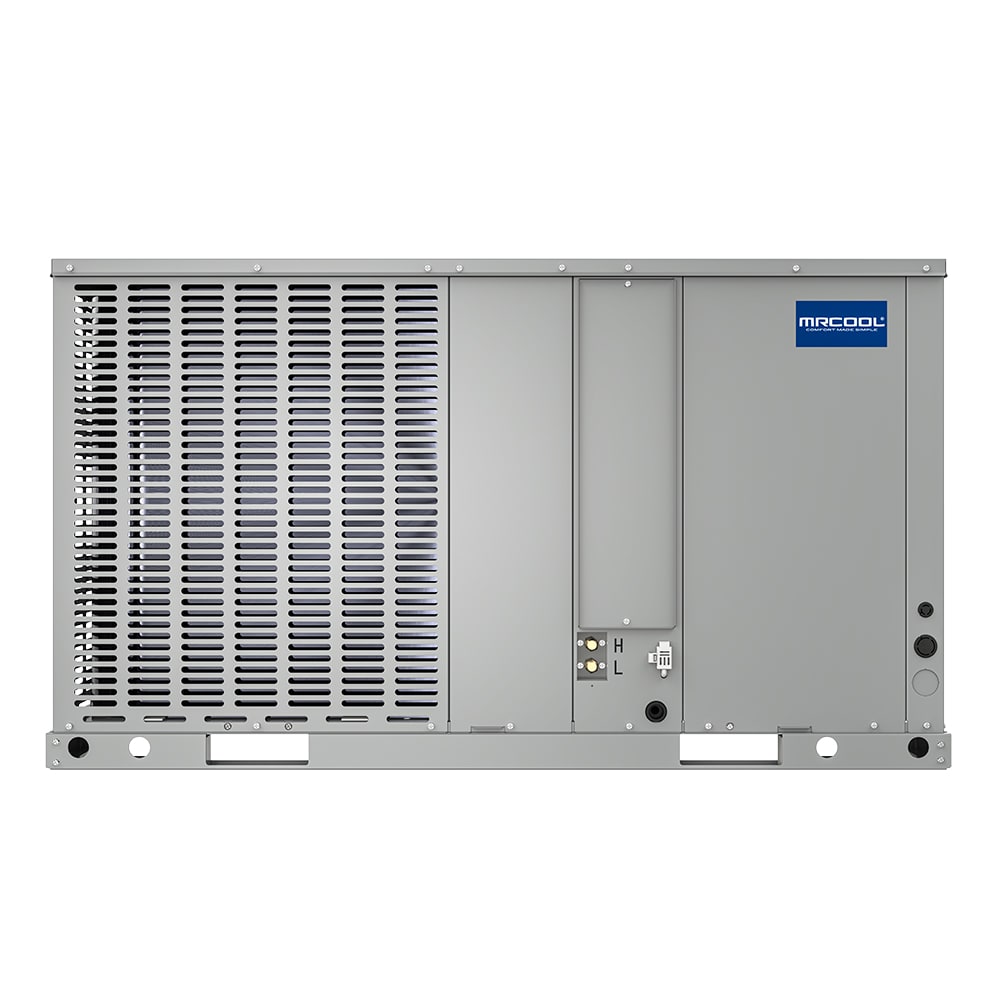

MRCOOL 5 Ton Horizontal VersaPro® Package Heat Pump - R454B
5 Ton | SEER2 13.4 | R-454B | 208/230V
- 56500 BTU cooling capacity
- Up to 13.4 SEER2 rated efficiency
- Scroll compressor
- Uses R-454B refrigerant
Key Specifications
Product Overview
The MRCOOL® VersaPro® Series 60K Package Heat Pump is built to deliver reliable, year-round comfort through a compact, all-in-one system. Built for maximum performance in all seasons, it’s an excellent choice for large homes or demanding applications requiring year-round reliability.
With a 13.4 SEER2 efficiency rating, the VersaPro® 60K helps reduce energy consumption, lowering monthly utility costs while minimizing environmental impact. It uses R-454B refrigerant, a next-generation solution with a much lower global warming potential than older refrigerants, supporting eco-conscious upgrades without sacrificing performance.
Designed for durability, the system features a power-painted galvanized steel cabinet for protection against harsh weather and corrosion. Its horizontal discharge design ensures quiet operation, while aluminum tubing and fin coils improve heat transfer and resist corrosion better than copper—extending service life and reducing long-term maintenance needs.
A high-efficiency full series compressor works alongside an ECM blower motor to deliver precise airflow, consistent comfort, and lower operating costs. Built-in safeguards protect the system from abnormal pressure or coil temperature conditions, ensuring your safety as well as that of your unit.
Backed by a 10-year limited parts warranty and 10-year compressor warranty, the MRCOOL® VersaPro® 60K Package Heat Pump is a dependable investment in year-round comfort, energy savings, and peace of mind.
Additional specifications
| UPC | 840255588706 |
|---|---|
| Series | VersaPro® R-454B Package Heat Pump |
| Refrigerant charge (oz) | 95 |
| Heating capacity (BTU/h) | 56,000 |
| Airflow (CFM) | 1750 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 48.6 |
| Max fuse / breaker (A) | 60 |
| Inverter | No |
| Blower motor type | ECM |
| Blower motor HP | 3/4 |
| Blower speeds | 3 |
| Metering device | Piston |
| Drain connection (in) | 3/4 |
| Min ambient cooling (F) | 32 |
| Min ambient heating (F) | -0.4 |
| Aux heater included | No |
| Aux heater available | Yes |
| Aux heater sizes (kW) | 5 KW / 7.5 KW / 10 KW / 15 KW / 20 KW |
| AHRI certified | Yes |
| UL listed | Yes |
| ETL listed | Yes |
| Parts warranty (years) | 10 Years |
| Compressor warranty (yrs) | 10 Years |
| Shipping W x H x D (in) | 42.24 x 34.07 x 59.25 |
| Shipping weight (lbs) | 467 |
Documents
- Specification sheet (PDF)
- Installation manual (PDF)
- Service manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Packaged Heat Pump |
|---|---|
| Capacity | 56500 BTU |
| Tonnage | 5 Ton |
| Compressor / Stages | Scroll |
| SEER2 | 13.4 |
| EER2 | 11 |
| HSPF2 | 6.7 |
| Sound Level | 81 dBA |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
Physical & Certifications
| Dimensions (W x H x D) | 42.06 x 33.06 x 58.5 |
|---|---|
| Weight | 450 lb |
| Color / Finish | Grey |
