MRCOOL

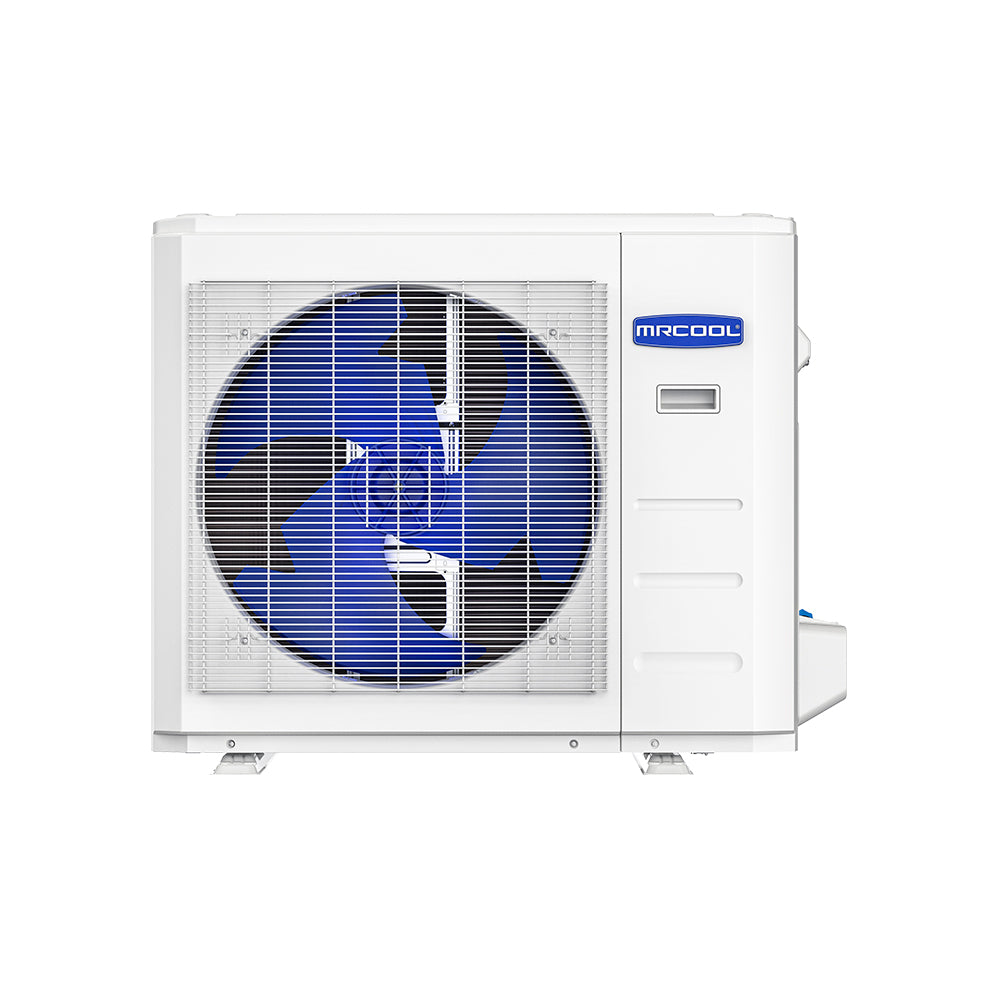

MRCOOL 48K MRCOOL® Hyper Heat Central Ducted Condenser
4 Ton | SEER2 16.5 | R454B | 208-230V
- 48000 BTU cooling capacity
- Up to 16.5 SEER2 rated efficiency
- Uses R454B refrigerant
- Runs on 208-230V power
Key Specifications
Product Overview
The 48K MRCOOL® Hyper Heat Central Ducted Condenser is crafted to provide outstanding performance in even the most extreme climates, from icy winters to scorching summers.
This Hyper Heat system utilizes DC Inverter technology and variable speed functionality to deliver consistent, high-quality operation. With a SEER2 rating of up to 16.5 and an HSPF2-4 rating of up to 9.5, it offers powerful heating and cooling while maximizing energy efficiency. A MRCOOL® Smart thermostat is included, giving you complete control over your indoor environment with ease.
The 48K MRCOOL® Hyper Heat Central Ducted Condenser is compatible with the 48K MRCOOL® VersaPro® Central Ducted Air Handler. The air handler is built for flexibility, supports various installation options, and is compatible with an optional heat kit for added capability. The system features R-454B refrigerant, a sustainable choice that minimizes its impact on the environment.
Durability is a hallmark of the outdoor heat pump, constructed with a painted galvanized steel exterior for long-term resilience. The air handler is thoughtfully designed with a compact form, slide-out blower, and self-diagnostic panel to streamline maintenance and troubleshooting.
Enjoy peace of mind with the system’s 10-year warranty, covering the compressor, parts, and labor. Enhance your home’s comfort with the efficient and reliable 48K MRCOOL® Hyper Heat Central Ducted Condenser today!
Additional specifications
| UPC | 840255586535 |
|---|---|
| Series | Central Ducted Hyper Heat 2nd Gen |
| Refrigerant charge (oz) | 134.04 |
| Heating capacity (BTU/h) | 50000 |
| HSPF (region IV) | 9.5 |
| HSPF (region V) | 8 |
| Airflow (CFM) | 3037.1 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 38 |
| Max fuse / breaker (A) | 40 |
| Wi-Fi capable | Yes |
| AHRI certified | Yes |
| ENERGY STAR certified | Yes |
| Parts warranty (years) | 10 Years |
| Compressor warranty (yrs) | 10 Years |
| Shipping W x H x D (in) | 45.08 x 42.52 x 19.68 |
| Shipping weight (lbs) | 232.36 |
Documents
Technical Specifications
Performance
| System Type | Split System Heat Pump |
|---|---|
| Capacity | 48000 BTU |
| Tonnage | 4 Ton |
| SEER2 | 16.5 |
| EER2 | 10.5 |
| Sound Level | 65 dBA |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R454B |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 38.58 x 38.39 x 16.34 |
|---|---|
| Weight | 201.06 lb |
| Color / Finish | Gray |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
