MRCOOL

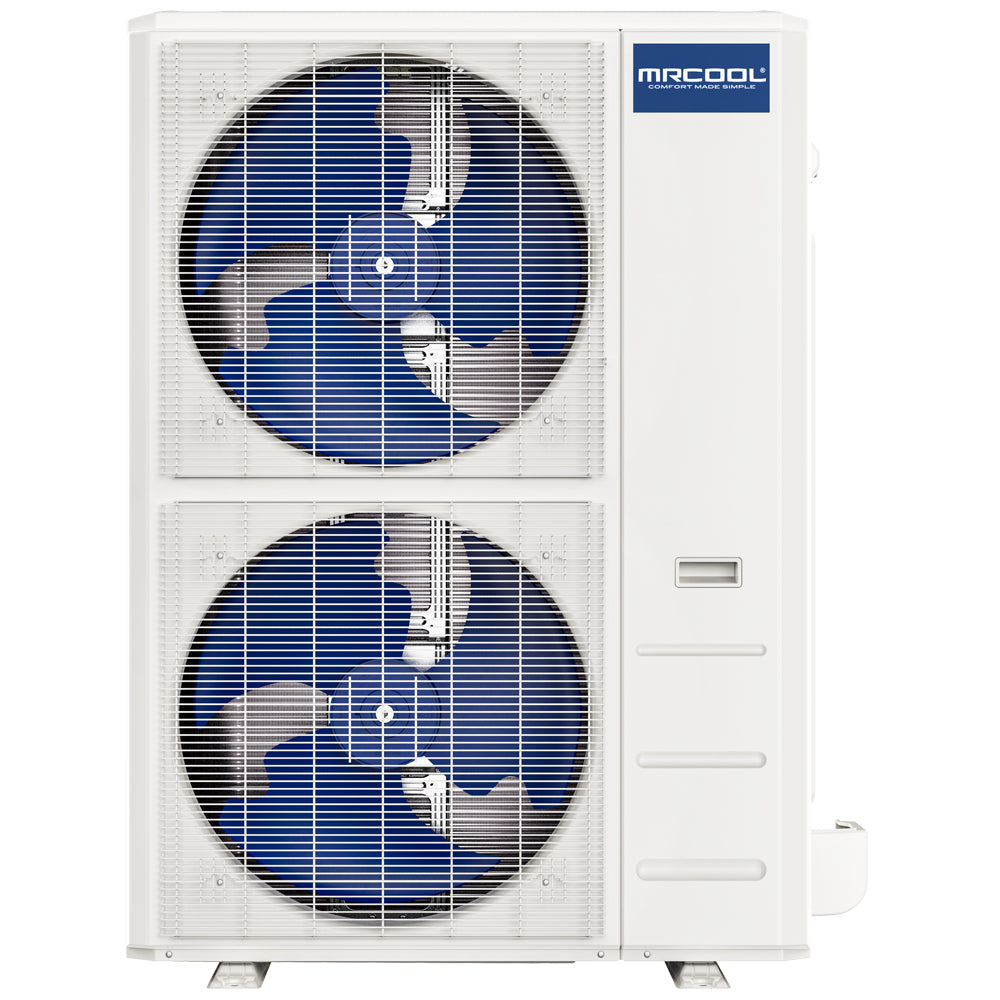

MRCOOL 48K BTU Hyper Heat Central Ducted Heat Pump Condenser
SEER2 15.6 | R-410A | 208-230V
- 47000 BTU cooling capacity
- Up to 15.6 SEER2 rated efficiency
- Uses R-410A refrigerant
- Runs on 208-230V power
Key Specifications
Product Overview
A superb option to replace your outdated, cumbersome heating and cooling system, the 48K BTU MRCOOL® Hyper Heat Central Ducted Heat Pump Condenser delivers reliable climate control without straining your budget. Equipped with a DC Inverter and advanced variable speed technology, this unit boasts exceptional efficiency, leading to significant utility cost reductions without compromising performance. It features an impressive SEER2 rating of up to 15.6 and an HSPF2-4 rating of up to 9.4, thanks to its superior heating capacity. It ensures indoor comfort even when outdoor temperatures plunge to -22°F or climb to 122°F. Installation is a cinch for professional HVAC technicians using the compatible MRCOOL® No-Vac® Quick Connect® Line Set. This distinctive line set eliminates the need for vacuuming or flare welding and is kink-resistant, streamlining the connection process and lowering installation expenses. In addition, the unit utilizes the eco-friendly R-410A refrigerant, causing no harm to the environment. Constructed with premium materials like painted galvanized steel, this durable unit resists damage from severe weather, animals, or yard equipment, ensuring reliable performance for years to come. In the rare event of any issues, a 10-year warranty covering the compressor, parts, and labor backs the unit. What's more, the labor warranty is automatically activated upon installation, removing the need for a lengthy registration process.
Features
- Enhanced Heating Capacity
- Includes features such as timer mode, auto cool mode, fan only mode, and more
- Wired Thermostat Included (.78 in x 4.72 in x 4.72in)
- Multi-Position Installation
- Variable Speed
- Optional Heat Kit
- Compact, Side Discharge Design
- R-410A environmentally friendly refrigerant
- Follow Me™ Function
- Easy-Access Removable Filter
Additional specifications
| UPC | 840255553070 |
|---|---|
| Series | Central Ducted Hyper Heat |
| Refrigerant charge (oz) | 169.32 |
| Heating capacity (BTU/h) | 50000 |
| HSPF2 (region V) | 7.7 |
| Airflow (CFM) | 4411.76 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 42 |
| Max fuse / breaker (A) | 50 |
| Inverter | DC |
| Max line set length (ft) | 213.25 |
| Aux heater included | No |
| Aux heater available | Yes |
| AHRI certified | Yes |
| UL listed | Yes |
| Shipping W x H x D (in) | 43.11 x 57.48 x 19.49 |
| Shipping weight (lbs) | 249 |
Documents
- Specification sheet (PDF)
- Installation manual (PDF)
- Service manual (PDF)
- Remote manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Mini Split Condenser |
|---|---|
| Capacity | 47000 BTU |
| SEER2 | 15.6 |
| EER2 | 8.2 |
| HSPF2 | 9.4 |
| Sound Level | 64 dBA |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-410A |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 37.48 x 52.48 x 16.34 |
|---|---|
| Weight | 220.24 lb |
