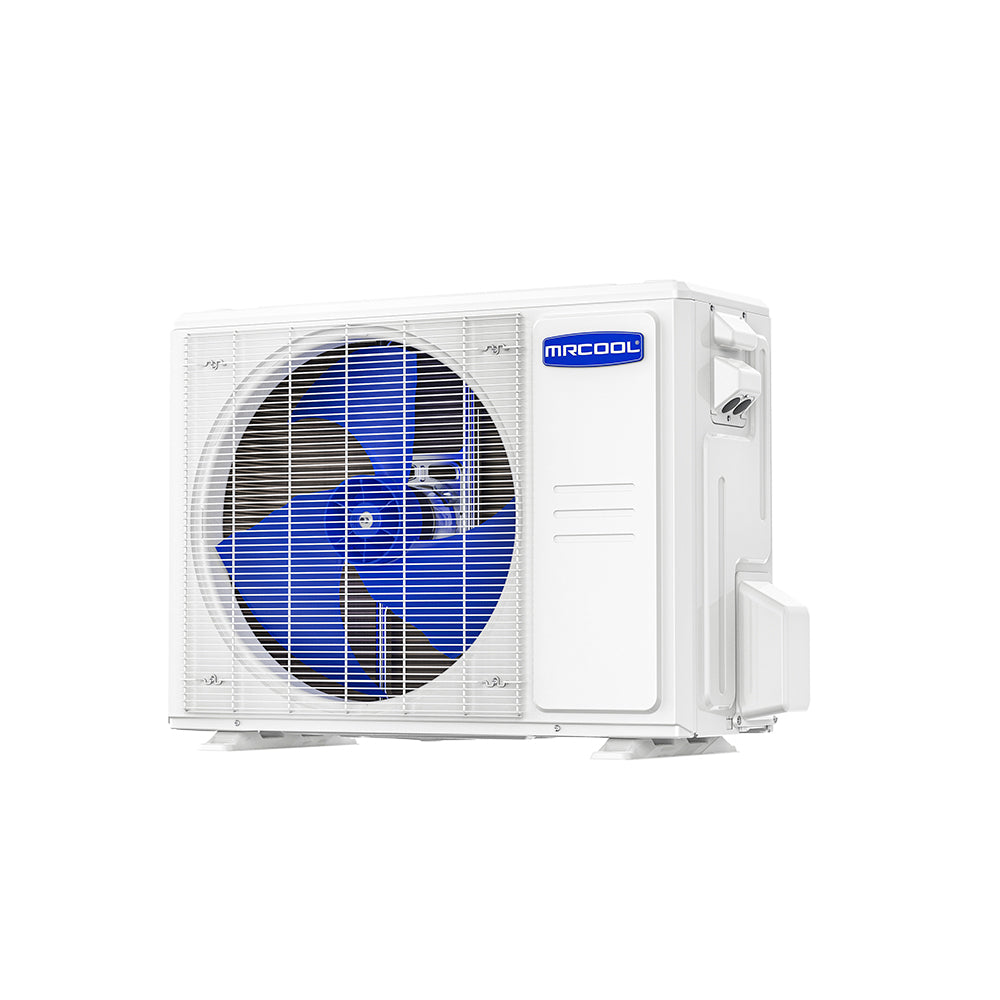

MRCOOL 4 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser
4 Ton | SEER2 16 | R454B | 208-230V
- 48000 BTU cooling capacity
- Up to 16 SEER2 rated efficiency
- Uses R454B refrigerant
- Runs on 208-230V power
Key Specifications
Product Overview
The 4 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser offers a dependable and efficient solution for year-round heating and cooling. Designed with durability and modern technology, this unit provides consistent comfort in all seasons.
With a variable-speed 48k capacity, the VersaPro® achieves a SEER2 rating of 16 and an HSPF4 rating of 8.5. Paired with the MRCOOL® VersaPro® Central Ducted Air Handler, it creates a complete and reliable system tailored to your home’s needs. The DC inverter technology ensures quiet operation and optimized energy use, making it an excellent upgrade from older, less efficient systems. You’ll also receive the MRCOOL® Smart thermostat, giving you complete control over your home’s temperature with ease.
The VersaPro® condenser utilizes R-454B refrigerant, a more environmentally friendly alternative to traditional refrigerants. Its durable painted galvanized steel construction is built to withstand the elements, while the compact side-discharge design makes installation easier in tight spaces. Maintenance is simplified with the built-in self-diagnostics system, which helps identify issues quickly and reduce service calls.
To ensure peace of mind, the VersaPro® comes with a 10-year warranty covering the compressor and parts. This long-term protection ensures reliable performance and safeguards your investment. Choose the 4 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser for an efficient, reliable way to maintain home comfort.
Additional specifications
| UPC | 840255586429 |
|---|---|
| Series | VersaPro® Central Ducted Condenser |
| Refrigerant charge (oz) | 134.04 |
| Heating capacity (BTU/h) | 48000 |
| HSPF (region IV) | 8.5 |
| HSPF (region V) | 7.2 |
| Airflow (CFM) | 3037.1 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 36 |
| Max fuse / breaker (A) | 40 |
| Wi-Fi capable | Yes |
| AHRI certified | Yes |
| ENERGY STAR certified | Yes |
| Parts warranty (years) | 10 Years |
| Compressor warranty (yrs) | 10 Years |
| Shipping W x H x D (in) | 45.08 x 42.52 x 19.68 |
| Shipping weight (lbs) | 224.21 |
Documents
Technical Specifications
Performance
| System Type | Split System Heat Pump |
|---|---|
| Capacity | 48000 BTU |
| Tonnage | 4 Ton |
| SEER2 | 16 |
| EER2 | 10 |
| Sound Level | 65 dBA |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R454B |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 38.58 x 38.39 x 16.34 |
|---|---|
| Weight | 192.9 lb |
| Color / Finish | Gray |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
