MRCOOL

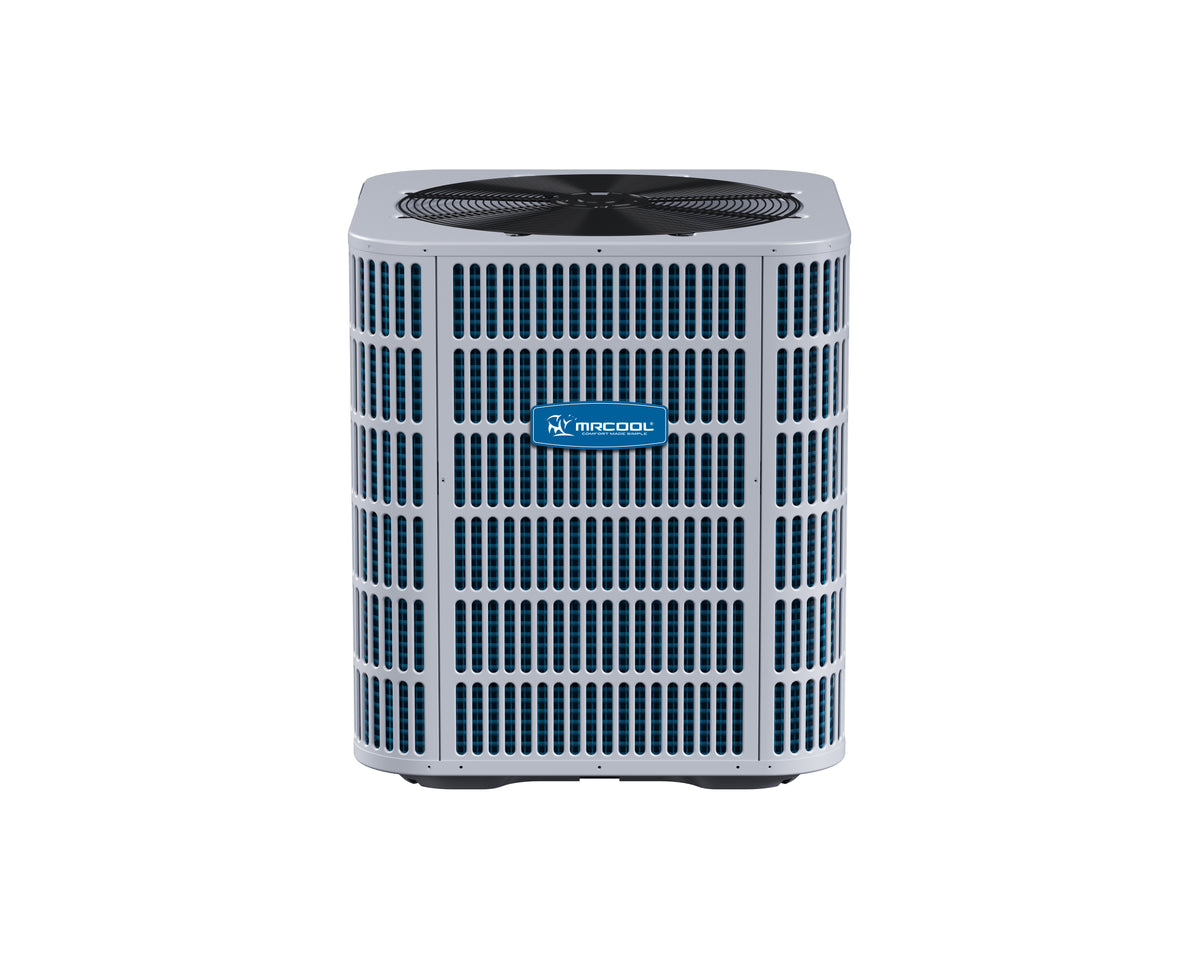

MRCOOL 4 Ton 15 SEER2 PRODIRECT Series Heat Pump Condeners
SEER2 15.2 | R410A | 208/230V
- 48000 BTU cooling capacity
- Up to 15.2 SEER2 rated efficiency
- Scroll compressor
- Uses R410A refrigerant
Key Specifications
Product Overview
The 4 Ton PRODIRECT™ Series Heat Pump is a dependable option for homeowners seeking efficiency and performance. It boasts a SEER2 rating of up to 15.2 and uses R410A, a chlorine-free refrigerant, alongside an energy-efficient compressor to provide excellent cooling and heating. This system features a condenser with inner-groove copper tubes and aluminum fins. Additionally, it includes service valves for sweat connections and easy-access gauge ports for simplified maintenance. The 48K PRODIRECT™ Heat Pump is designed with safety in mind, incorporating built-in high and low-pressure switches for secure operation. Its sound-control top design helps to minimize noise levels to a low 76 decibels, comparable to the hum of a dishwasher, ensuring a peaceful environment in your home. The compact design allows for easy installation and transport, while the wire fan discharge grille and steel louver coil guard provide additional protection. An optional drier filter can be added for those looking to enhance efficiency. This heat pump is AHRI-certified and ETL-listed, demonstrating compliance with industry standards. MRCOOL® offers a standard 5-year warranty, plus an additional 5-year extended parts and compressor warranty upon registration. With reliable performance and long-term peace of mind, the 4 Ton PRODIRECT™ Series Heat Pump is an excellent choice for homeowners.
Features
- R410A chlorine-free refrigerant
- Energy-efficient compressor
- Internal protection against high temperature motor overload conditions
- AHRI certified and ETL listed
- Unique sound control top design
- Compact design, easy installation and transportation
- High quality condenser with inner-groove copper tube and aluminum fins
- Wire fan discharge grille
Additional specifications
| UPC | 840255585637 |
|---|---|
| Series | PRODIRECT Series 15 SEER2 Heat Pump Condenser |
| Refrigerant charge (oz) | 135 |
| Heating capacity (BTU/h) | 48000 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 29.6 |
| Max fuse / breaker (A) | 50 |
Documents
Technical Specifications
Performance
| System Type | Split System Heat Pump |
|---|---|
| Capacity | 48000 BTU |
| Compressor / Stages | Scroll |
| SEER2 | 15.2 |
| Sound Level | 76 dBA |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R410A |
| Connection Size | Liquid 3/8" / Suction 11/8" |
Physical & Certifications
| Dimensions (W x H x D) | 29 1/8 x 33 3/16 x 29 1/8 |
|---|---|
| Weight | 201 lb |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
