MRCOOL

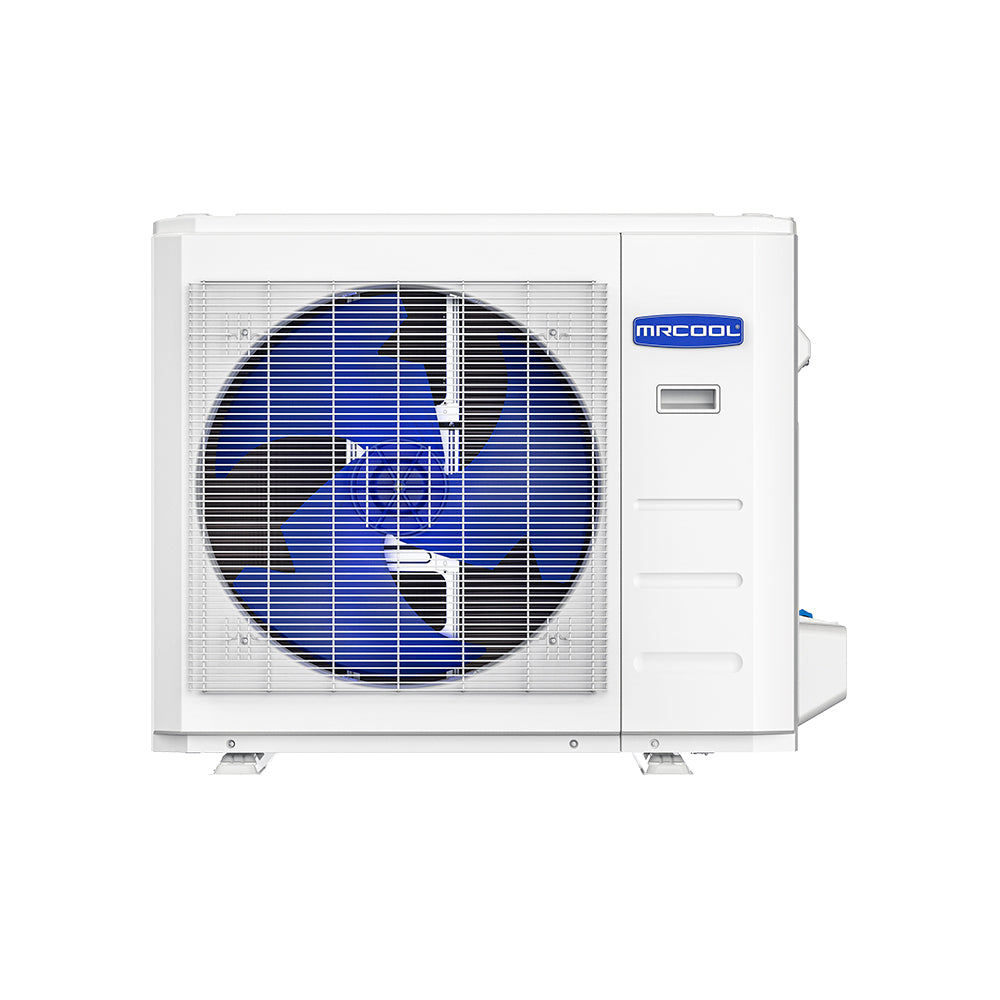

MRCOOL 36K MRCOOL® Hyper Heat Central Ducted Condenser
3 Ton | SEER2 17.4 | R454B | 208-230V
- 36000 BTU cooling capacity
- Up to 17.4 SEER2 rated efficiency
- Uses R454B refrigerant
- Runs on 208-230V power
Key Specifications
Product Overview
The 36K MRCOOL® Hyper Heat Central Ducted Condenser is specifically designed to deliver exceptional performance in extreme weather conditions, from freezing winters to sweltering summers.
This high-performance system is engineered for efficiency, integrating DC Inverter and variable speed technology for reliable operation. With a SEER2 rating of up to 17.4 and an HSPF2-4 rating of up to 10.2, it effectively balances powerful heating and cooling while optimizing energy use. The system comes with the MRCOOL® Smart thermostat, allowing you to control your indoor climate easily.
The 36K MRCOOL® Hyper Heat Central Ducted Condenser and the 36K MRCOOL® VersaPro® Central Ducted Air Handler are designed to work together seamlessly. The air handler is versatile, accommodating multiple installation configurations and supports an optional heat kit for enhanced functionality. The system uses R-454B refrigerant to reduce environmental impact, an eco-friendly choice that aligns with sustainable practices.
The outdoor condenser is made with a painted galvanized steel exterior, while the air handler boasts a compact design, a slide-out blower, and a self-diagnostic panel for simplified maintenance and troubleshooting.
This system is backed by a comprehensive 10-year warranty covering the compressor, parts, and labor, providing lasting reliability and peace of mind. Upgrade your home's heating and cooling system with the dependable and efficient 36K MRCOOL® Hyper Heat Central Ducted Condenser today!
Additional specifications
| UPC | 840255586528 |
|---|---|
| Series | Central Ducted Hyper Heat 2nd Gen |
| Refrigerant charge (oz) | 126.99 |
| Heating capacity (BTU/h) | 37000 |
| HSPF (region IV) | 10.2 |
| HSPF (region V) | 8.6 |
| Airflow (CFM) | 3001.8 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 29 |
| Max fuse / breaker (A) | 30 |
| Wi-Fi capable | Yes |
| AHRI certified | Yes |
| ENERGY STAR certified | Yes |
| Parts warranty (years) | 10 Years |
| Compressor warranty (yrs) | 10 Years |
| Shipping W x H x D (in) | 45.08 x 42.52 x 19.68 |
| Shipping weight (lbs) | 253.23 |
Documents
Technical Specifications
Performance
| System Type | Split System Heat Pump |
|---|---|
| Capacity | 36000 BTU |
| Tonnage | 3 Ton |
| SEER2 | 17.4 |
| EER2 | 11.7 |
| Sound Level | 62.5 dBA |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R454B |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 38.58 x 38.39 x 16.34 |
|---|---|
| Weight | 204.15 lb |
| Color / Finish | Gray |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
