MRCOOL

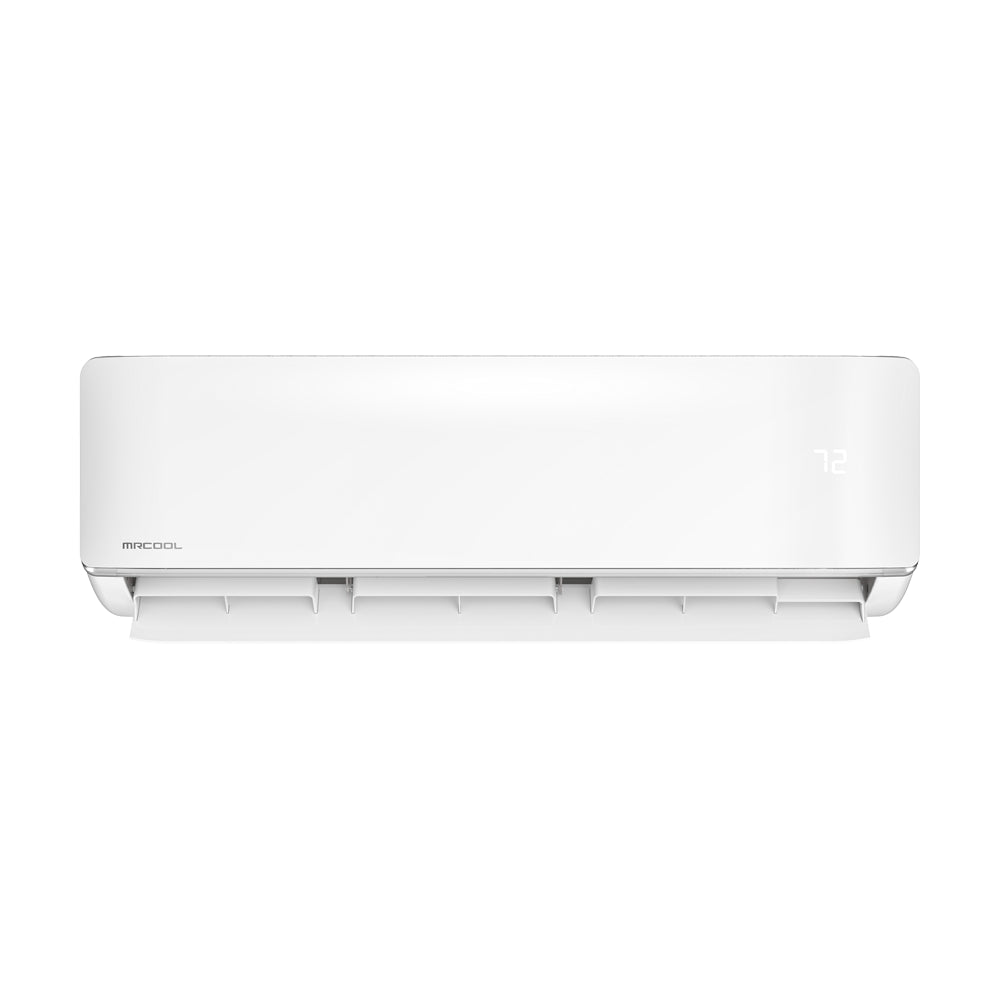

MRCOOL® 36k DIY 5th Generation Mini-split Air Handler 230v
3 Ton | 208/230V
- 3 Ton capacity
- Runs on 208/230V power
Key Specifications
Product Overview
The 5th Generation MRCOOL® DIY® 36k BTU Ductless Mini-Split Heat Pump is a powerful and efficient option for heating and cooling spaces up to 1,550 sq. ft. Perfect for large rooms or open areas, this system is designed for true DIY installation—no special tools or professional assistance required. It’s a fast, affordable way to upgrade your home’s comfort.
The included DIYPRO® cable makes installation even easier by eliminating the need for electrical conduit, while offering added protection against outdoor elements and wildlife damage.
Controlling your comfort is simple and flexible. Use the included wireless remote, connect through the SmartHVAC app on iOS or Android, or manage the system hands-free with Amazon Alexa or Google Assistant. With the Follow Me® feature, the system senses the temperature around the remote and adjusts accordingly, providing more precise and even comfort. Dry Mode also helps by reducing humidity and improving indoor air quality.
The outdoor unit includes a corrosion-resistant Gold Fin® condenser coating, ideal for homes in coastal or humid environments.
For further peace of mind, you’ll receive a 7-year compressor warranty and 5-year parts warranty. This system is also eligible for the MRCOOL® Care Program. Enjoy smart control, dependable performance, and easy installation with MRCOOL® DIY®.
Features
- NEEP ccASHP Listed
- Intertek listed 5031495
- Easy DIY installation
- Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
- Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
- The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
Additional specifications
| UPC | 840255587068 |
|---|---|
| Series | DIY 5th gen Single-Zone Mini-splits |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 3 |
| Max fuse / breaker (A) | 15 |
| Filter type | Reusable |
| Mount type | Wall |
| Max coverage area | 1550 sqft |
| Sound level low (dBA) | 27.5 |
| Sound level high (dBA) | 55.5 |
| Aux heater included | No |
| Aux heater available | No |
| Wi-Fi capable | Yes |
| Remote included | Yes |
| AHRI certified | Yes |
| UL listed | Yes |
| ETL listed | Yes |
| Parts warranty (years) | 5 |
| Compressor warranty (yrs) | 7 |
| Shipping W x H x D (in) | 53.94 x 16.57 x 18.74 |
| Shipping weight (lbs) | 67.9 |
Documents
- Installation manual (PDF)
- Owner's manual (PDF)
- Service manual (PDF)
- Remote manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Mini Split Air Handler |
|---|---|
| Tonnage | 3 Ton |
| Sound Level | 27.5-55.5 dBA |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Connection Size | Liquid 3/8" / Suction 5/8" |
Physical & Certifications
| Dimensions (W x H x D) | 49.57 x 14.25 x 11.1 |
|---|---|
| Weight | 48.72 lb |
| Color / Finish | White |
Shipping & Delivery
Installation video
Published by MRCOOL. Watch the full walkthrough before you start, and follow the installation manual for this model — the video is a guide, not a substitute for it.
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
