MRCOOL

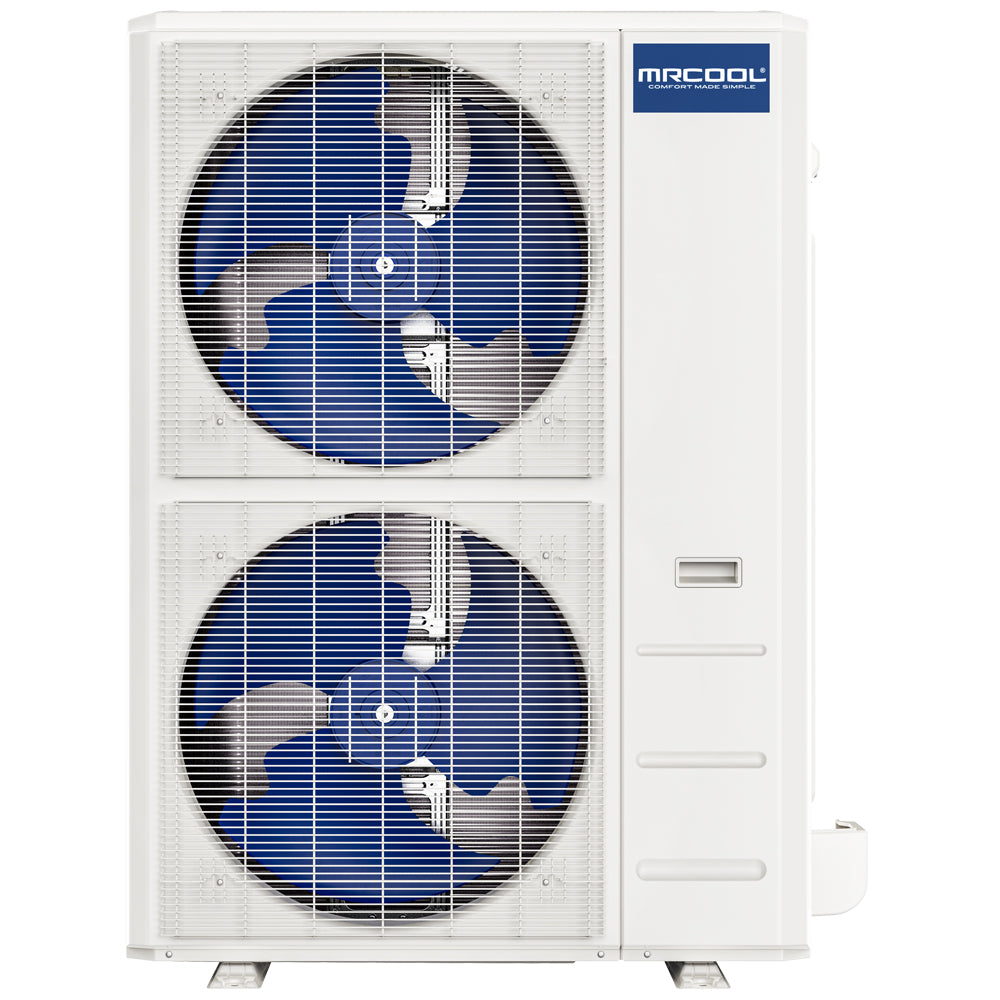

MRCOOL 36K BTU Hyper Heat Central Ducted Heat Pump Condenser
SEER2 16 | R-410A | 208-230V
- 36000 BTU cooling capacity
- Up to 16 SEER2 rated efficiency
- Uses R-410A refrigerant
- Runs on 208-230V power
Key Specifications
Product Overview
The 36K BTU MRCOOL® Hyper Heat Central Ducted Heat Pump Condenser offers a dependable solution for coping with the harshest winters and summers. Utilizing a DC Inverter and cutting-edge variable speed technology, the unit delivers remarkable efficiency, leading to significant utility cost savings without compromising performance. Boasting an impressive SEER2 rating of up to 16 and an HSPF2-4 rating of up to 9.5, its superior heating capacity ensures indoor comfort even when outdoor temperatures plummet to -22°F or soar to 122°F. Installation is effortless for professional HVAC technicians utilizing the compatible MRCOOL® No-Vac® Quick Connect® Line Set. This distinctive line set eliminates the need for vacuuming or flare welding and is kink-resistant, expediting the connection process and lowering installation costs. Furthermore, the unit employs the environmentally friendly R-410A refrigerant, ensuring no harm to the environment. Constructed with top-quality materials like painted galvanized steel, the unit is built to last and withstand damage from extreme weather, animals, or yard equipment. In the unlikely event of any issues, a 10-year warranty covering the compressor, parts, and labor supports the unit. As an added bonus, the labor warranty is automatically activated upon installation, removing the need for a time-consuming registration process.
Features
- Enhanced Heating Capacity
- Includes features such as timer mode, auto cool mode, fan only mode, and more
- Wired Thermostat Included (.78 in x 4.72 in x 4.72in)
- Multi-Position Installation
- Variable Speed
- Optional Heat Kit
- Compact, Side Discharge Design
- R-410A environmentally friendly refrigerant
- Follow Me™ Function
- Easy-Access Removable Filter
Additional specifications
| UPC | 840255553063 |
|---|---|
| Series | Central Ducted Hyper Heat |
| Refrigerant charge (oz) | 165.79 |
| Heating capacity (BTU/h) | 40000 |
| HSPF2 (region V) | 8 |
| Airflow (CFM) | 4500 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 41 |
| Max fuse / breaker (A) | 50 |
| Inverter | DC |
| Max line set length (ft) | 213.25 |
| Aux heater included | No |
| Aux heater available | Yes |
| AHRI certified | Yes |
| UL listed | Yes |
| Shipping W x H x D (in) | 43.11 x 57.48 x 19.49 |
| Shipping weight (lbs) | 256 |
Documents
- Specification sheet (PDF)
- Installation manual (PDF)
- Service manual (PDF)
- Remote manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Mini Split Condenser |
|---|---|
| Capacity | 36000 BTU |
| SEER2 | 16 |
| EER2 | 10 |
| HSPF2 | 9.5 |
| Sound Level | 64 dBA |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-410A |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 37.48 x 52.48 x 16.34 |
|---|---|
| Weight | 227.07 lb |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
