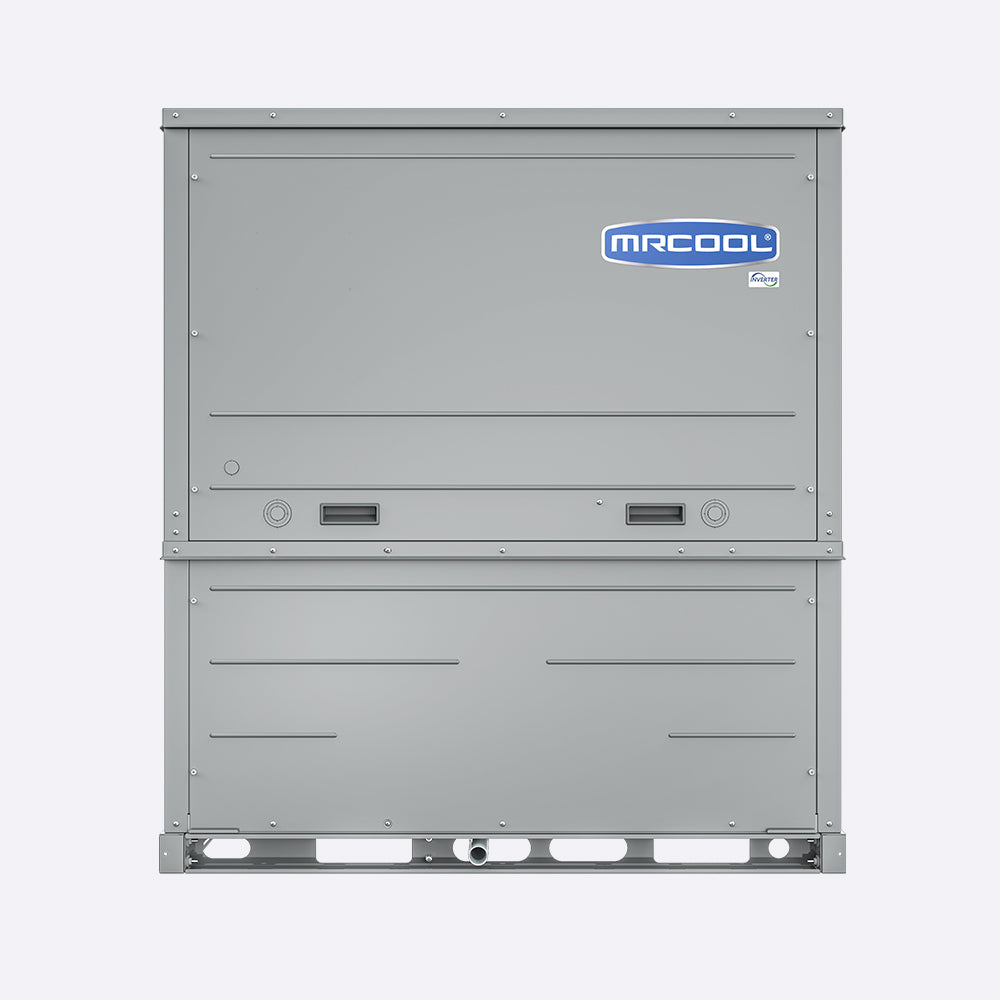

MRCOOL® 36k BTU 18 SEER2 DC Inverter Packaged Heat Pump-R410A
3 Ton | SEER2 17.8 | R410A | 208-230V
- 34400 BTU cooling capacity
- Up to 17.8 SEER2 rated efficiency
- Inverter Rotary compressor
- Uses R410A refrigerant
Key Specifications
Product Overview
Experience the pinnacle of heating and cooling efficiency while simultaneously reducing utility expenses and minimizing your environmental footprint with the MRCOOL® DC Inverter Package Heat Pump. This innovative ducted system offers unparalleled comfort and convenience, all contained within a single outdoor unit, without the reliance on fossil fuels. The secret to its outstanding efficiency lies in the variable speed DC compressor, which minimizes power loss, ensuring that the unit operates at a remarkably low noise level. This translates into a continuously regulated room temperature to meet individual preferences. The versatility of the compressor and DC motor allows for a broad range of cooling and heating operation, spanning from -22°F to 125°F. The unit's flexible air return, which can be configured from either the side or the bottom, provides installation flexibility—whether you choose a traditional method or opt for rooftop placement. Additionally, optional heat kits are available to cater to specific needs. The MRCOOL® DC Inverter Package Heat Pump quickly adapts to indoor and outdoor temperature changes, responding to load demands efficiently. It also incorporates intelligent defrosting technology, enhancing heating performance in winter by assessing frost conditions. Moreover, you can invest in this system with confidence, as it comes with 10-year warranties for labor, parts, and the compressor—all without the hassle of tedious registration processes..
Features
- Wired thermostat included
- Inverter Technology
- Energy Efficient
- Flexible air return
- Fast heating & cooling
- Intelligent defrosting
- 10 year labor warranty included
- Conforms to UL Std. 60335-1, 60335-2-40
- Certified to CSA Std. C22.2 No. 60335-1, 60335-2-40
- Intertek #3097844
Additional specifications
| UPC | 840255582292 |
|---|---|
| Series | Universal Series Inverter Packaged Heat Pump |
| Refrigerant charge (oz) | 176.4 |
| Heating capacity (BTU/h) | 36000 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 35 |
| Max fuse / breaker (A) | 40 |
| Inverter | DC |
| Filter type | Washable Aluminum |
| Filter size | 28x9x3/5 in |
| Sound level high (dBA) | 73 |
| Min ambient cooling (F) | 23 ~ 125 |
| Min ambient heating (F) | -22~75.2 |
| Aux heater included | no |
| Aux heater available | yes |
| Wi-Fi capable | no |
| AHRI certified | yes |
| ENERGY STAR certified | yes |
| ETL listed | yes |
| Parts warranty (years) | 10 years |
| Compressor warranty (yrs) | 10 years |
| Shipping W x H x D (in) | 35.94 x 50.81 x 44.63 |
| Shipping weight (lbs) | 545 |
Documents
Technical Specifications
Performance
| System Type | Package Heat Pump |
|---|---|
| Capacity | 34400 BTU |
| Tonnage | 3 Ton |
| Compressor / Stages | Inverter Rotary |
| SEER2 | 17.8 |
| EER2 | 11 |
| HSPF2 | 8.8 |
| Sound Level | 63 dBA |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R410A |
Physical & Certifications
| Dimensions (W x H x D) | 44 x 49.25 x 35.43 |
|---|---|
| Weight | 523 lb |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
