MRCOOL

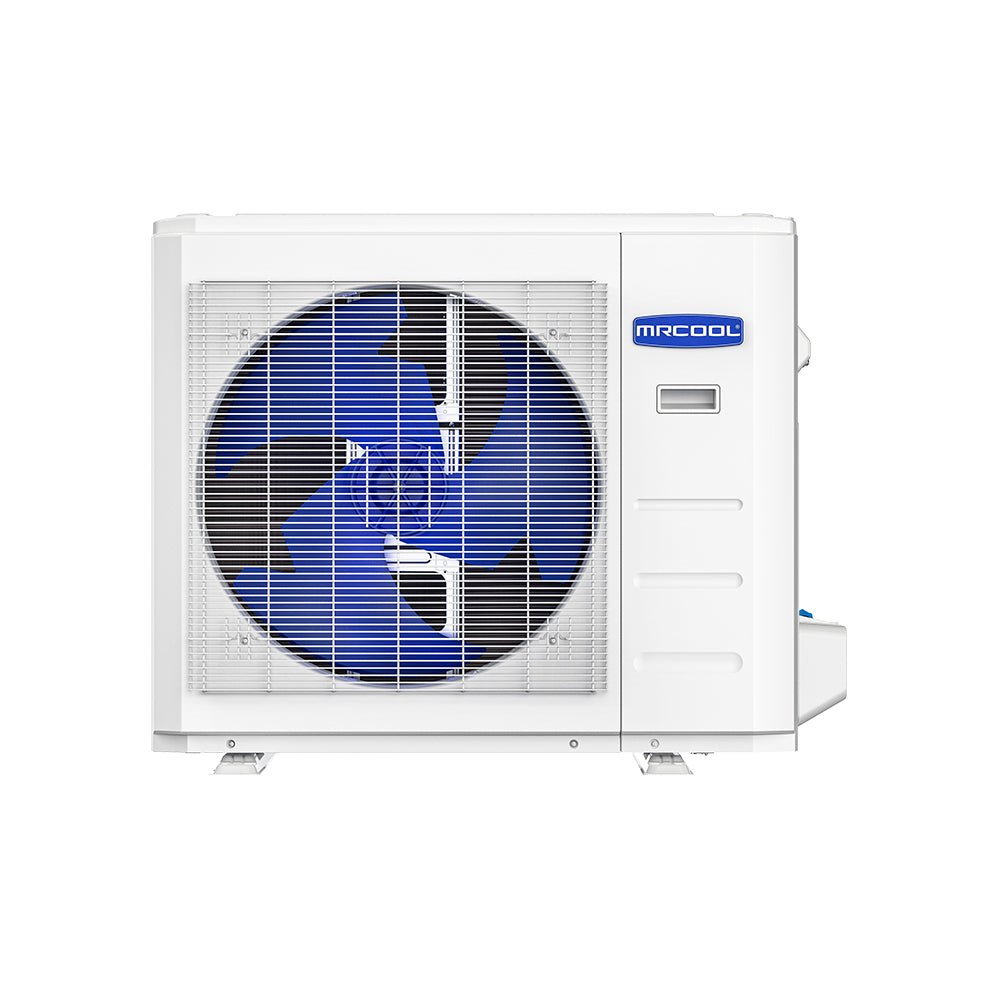

MRCOOL 30K MRCOOL® Hyper Heat Central Ducted Condenser
2.5 Ton | SEER2 16.8 | R454B | 208-230V
- 30000 BTU cooling capacity
- Up to 16.8 SEER2 rated efficiency
- Uses R454B refrigerant
- Runs on 208-230V power
Key Specifications
Product Overview
Elevate your home into a haven of comfort with the 30K MRCOOL® Hyper Heat Central Ducted Condenser, crafted to excel in harsh winters and sweltering summers.
This advanced unit combines robust performance with energy efficiency, featuring a DC Inverter and variable speed technology. With a SEER2 rating of up to 16.8 and an HSPF2-4 rating of up to 10, it provides dependable operation while helping to reduce your home's energy costs. The included MRCOOL® Smart thermostat ensures effortless temperature control for your convenience.
The 30K MRCOOL® Hyper Heat Central Ducted Condenser is compatible with the 30K MRCOOL® VersaPro® Central Ducted Air Handler. Designed with flexibility in mind, the air handler supports multiple installation configurations and offers the option to add a heat kit for enhanced versatility. The system utilizes R-454B refrigerant, reflecting a forward-thinking approach to environmental sustainability.
The outdoor heat pump is designed for durability and features a sturdy painted galvanized steel exterior. The air handler has a compact design that simplifies maintenance and includes a slide-out blower and a self-diagnostic panel.
For ultimate peace of mind, the 30K MRCOOL® Hyper Heat Central Ducted Condenser is backed by a 10-year warranty covering the compressor, parts, and labor. The labor warranty activates automatically upon installation, offering hassle-free protection. Upgrade your home's climate control with this reliable, energy-efficient system today!
Additional specifications
| UPC | 840255586511 |
|---|---|
| Series | Central Ducted Hyper Heat 2nd Gen |
| Refrigerant charge (oz) | 105.82 |
| Heating capacity (BTU/h) | 34000 |
| HSPF (region IV) | 10 |
| HSPF (region V) | 8.3 |
| Airflow (CFM) | 3001.8 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 29.5 |
| Max fuse / breaker (A) | 30 |
| Wi-Fi capable | Yes |
| AHRI certified | Yes |
| ENERGY STAR certified | Yes |
| Parts warranty (years) | 10 Years |
| Compressor warranty (yrs) | 10 Years |
| Shipping W x H x D (in) | 42.91 x 34.84 x 19.68 |
| Shipping weight (lbs) | 174.6 |
Documents
Technical Specifications
Performance
| System Type | Split System Heat Pump |
|---|---|
| Capacity | 30000 BTU |
| Tonnage | 2.5 Ton |
| SEER2 | 16.8 |
| EER2 | 11.7 |
| Sound Level | 60.5 dBA |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R454B |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 37.24 x 31.89 x 16.14 |
|---|---|
| Weight | 164.02 lb |
| Color / Finish | Gray |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
