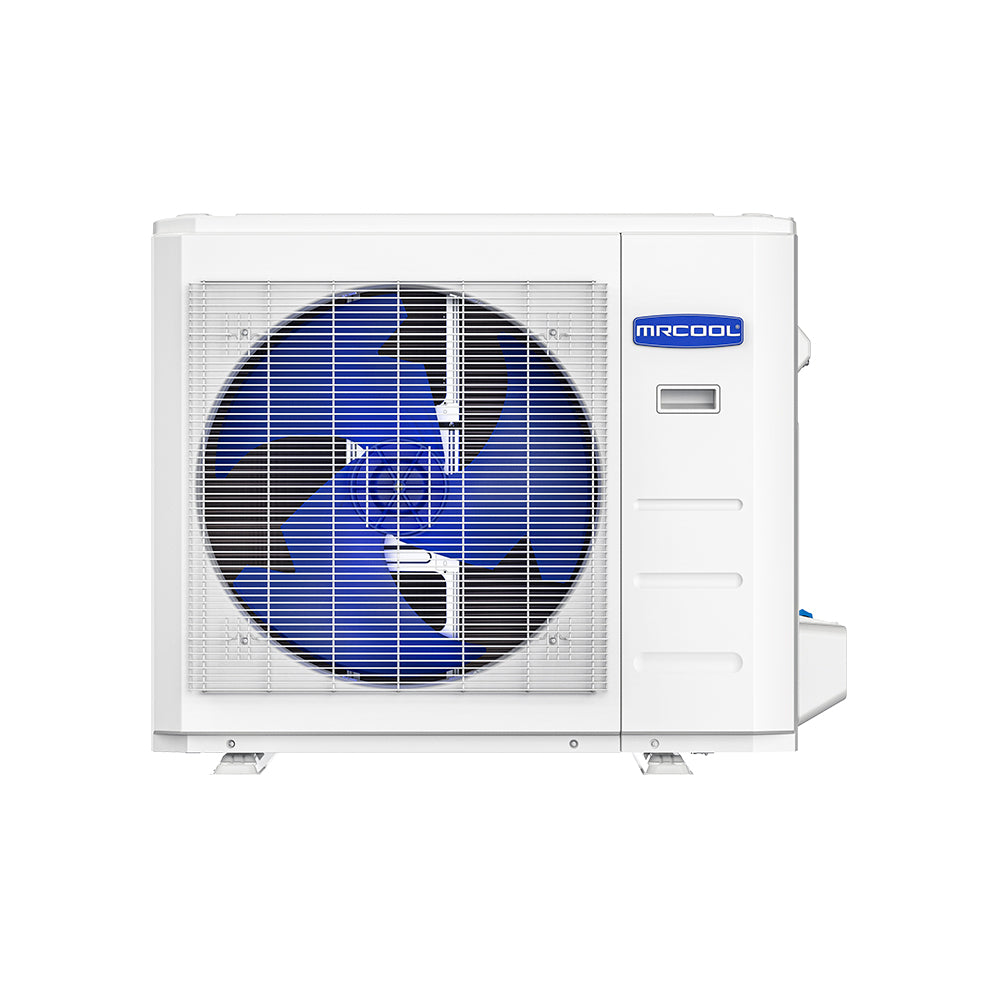

MRCOOL 3 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser
3 Ton | SEER2 16.1 | R454B | 208-230V
- 36000 BTU cooling capacity
- Up to 16.1 SEER2 rated efficiency
- Uses R454B refrigerant
- Runs on 208-230V power
Key Specifications
Product Overview
The 3 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser offers a reliable and cost-effective solution for heating and cooling your home throughout the year. This unit is built for durability and efficiency, providing dependable comfort in any season.
With a variable-speed 36k capacity, the VersaPro® delivers solid performance with a SEER2 rating of 16.1 and an HSPF4 rating of 8.7. These efficiency levels ensure effective heating and cooling while keeping energy costs manageable. When paired with the MRCOOL® VersaPro® Central Ducted Air Handler, it forms a well-rounded system suited to your home’s needs. DC inverter technology ensures smooth operation and energy savings, making it a great choice for replacing older, less efficient systems. Included with the system is the MRCOOL® Smart thermostat,allowing for effortless temperature adjustments.
The VersaPro® condenser uses R-454B refrigerant, an eco-friendly option that helps reduce its environmental impact. Its durable painted galvanized steel construction is designed to last, while the compact side-discharge design simplifies installation in tighter spaces. The self-diagnostic system makes maintenance easier, helping to reduce the need for service calls.
For added peace of mind, the 3 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser comes with a 10-year warranty that covers the compressor and parts. This warranty ensures long-term reliability and protection for your investment.
Additional specifications
| UPC | 840255582711 |
|---|---|
| Series | VersaPro® Central Ducted Condenser |
| Refrigerant charge (oz) | 116.4 |
| Heating capacity (BTU/h) | 36000 |
| HSPF (region IV) | 8.7 |
| HSPF (region V) | 7 |
| Airflow (CFM) | 2413.2 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 24 |
| Max fuse / breaker (A) | 30 |
| Wi-Fi capable | Yes |
| AHRI certified | Yes |
| ENERGY STAR certified | Yes |
| Parts warranty (years) | 10 Years |
| Compressor warranty (yrs) | 10 Years |
| Shipping W x H x D (in) | 42.91 x 34.84 x 19.68 |
| Shipping weight (lbs) | 163.58 |
Documents
Technical Specifications
Performance
| System Type | Split System Heat Pump |
|---|---|
| Capacity | 36000 BTU |
| Tonnage | 3 Ton |
| SEER2 | 16.1 |
| EER2 | 10 |
| Sound Level | 63 dBA |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R454B |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 37.24 x 31.89 x 16.14 |
|---|---|
| Weight | 153.22 lb |
| Color / Finish | Gray |
