MRCOOL

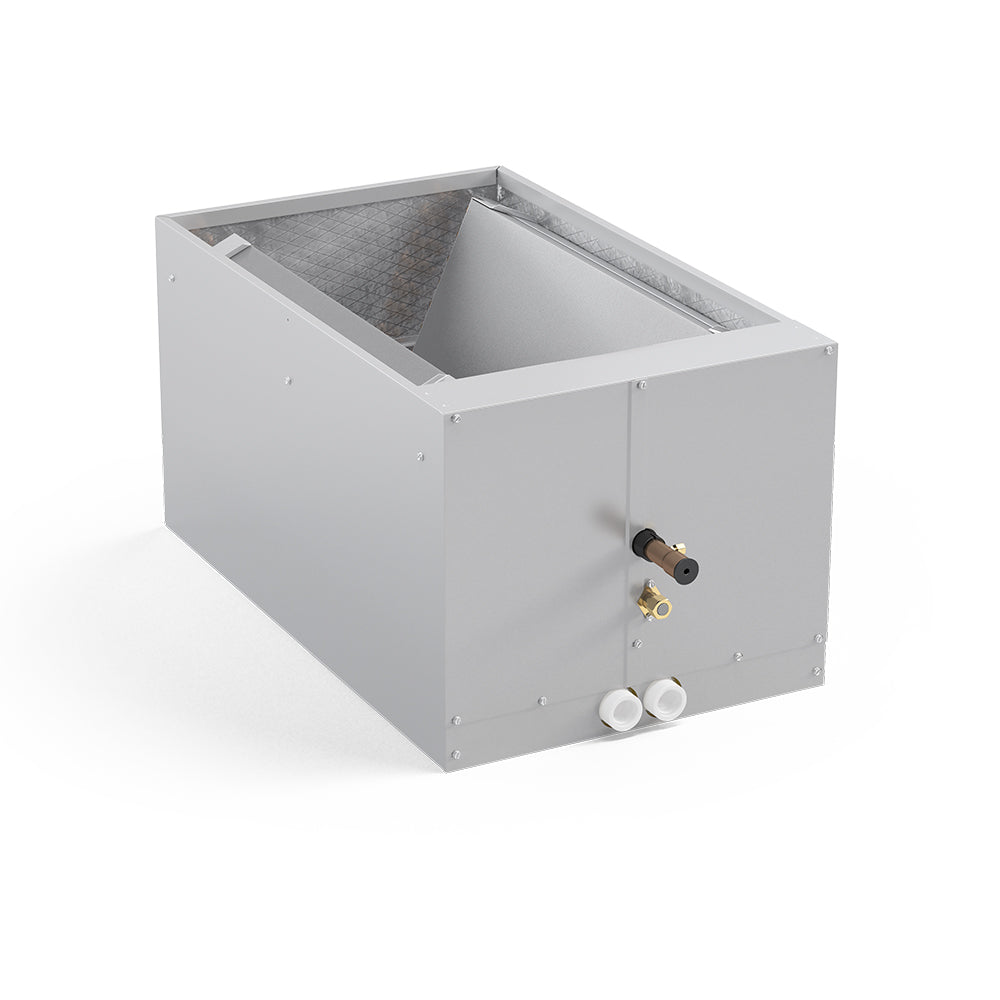

MRCOOL 3 Ton BTU R-410A Downflow Cased Evaporator Coil
3 Ton | R-410A
- 36000 BTU cooling capacity
- Uses R-410A refrigerant
Key Specifications
Product Overview
This is a brand new 3 ton, R-410A refrigerant, downflow cased Evaporator Coil. This efficient and durable coil is the solution for heat pumps and air conditioners for fast, flexible application. This Signature Series coil, when appropriately paired with a MRCOOL Signature Series condenser and gas furnace or modular blower, can achieve efficiency ratings of up to 16 SEER.
Features
- Interlocking door assemblies and snug line sealgrommets to minimize air leakage
- All units UL Listed and AHRI Certified
- One of the lowest water retention drain pans in the industry to minimize mold and mildew growth
- Heavy-gauge steel constructed cabinet for optimal support of the furnace, no need for additional bracing or structure.
- Foil-face insulation for easy cleaning
- All drain pans are compatible with UV lights
- Removable Cabinet panels for easy coil service
- Superior service access to components, withtubing located at door split and foil-face insulation
- 10-Year Parts Limited Warranty
- Aluminum tubing, hairpins, distributors and header tubes. Copper refrigerant connections for easy brazing to both liquid and suction lines.
- Tubing located at door split for easy coil service or cleaning
Additional specifications
| UPC | 810512034451 |
|---|---|
| Series | Signature Downflow Coil |
| Configuration | Downflow |
| Line set included (ft) | 15, 25, 35, 50 |
| Max line set length (ft) | 50 |
| Line set fitting | Sweat |
| Drain connection (in) | 3/4 |
| AHRI certified | Yes |
| ENERGY STAR certified | No |
| UL listed | Yes |
| Parts warranty (years) | 5 Year Parts Warranty |
| Shipping weight (lbs) | 60 |
| Country of origin | USA |
Documents
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Evaporator Coils |
|---|---|
| Capacity | 36000 BTU |
| Tonnage | 3 Ton |
Electrical & Fuel
| Refrigerant | R-410A |
|---|---|
| Connection Size | Liquid 3/8" / Suction 7/8" |
Physical & Certifications
| Dimensions (W x H x D) | 26.13 x 21.00 x 16.13 |
|---|---|
| Weight | 60.00 lb |
| Color / Finish | Gray |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
