MRCOOL

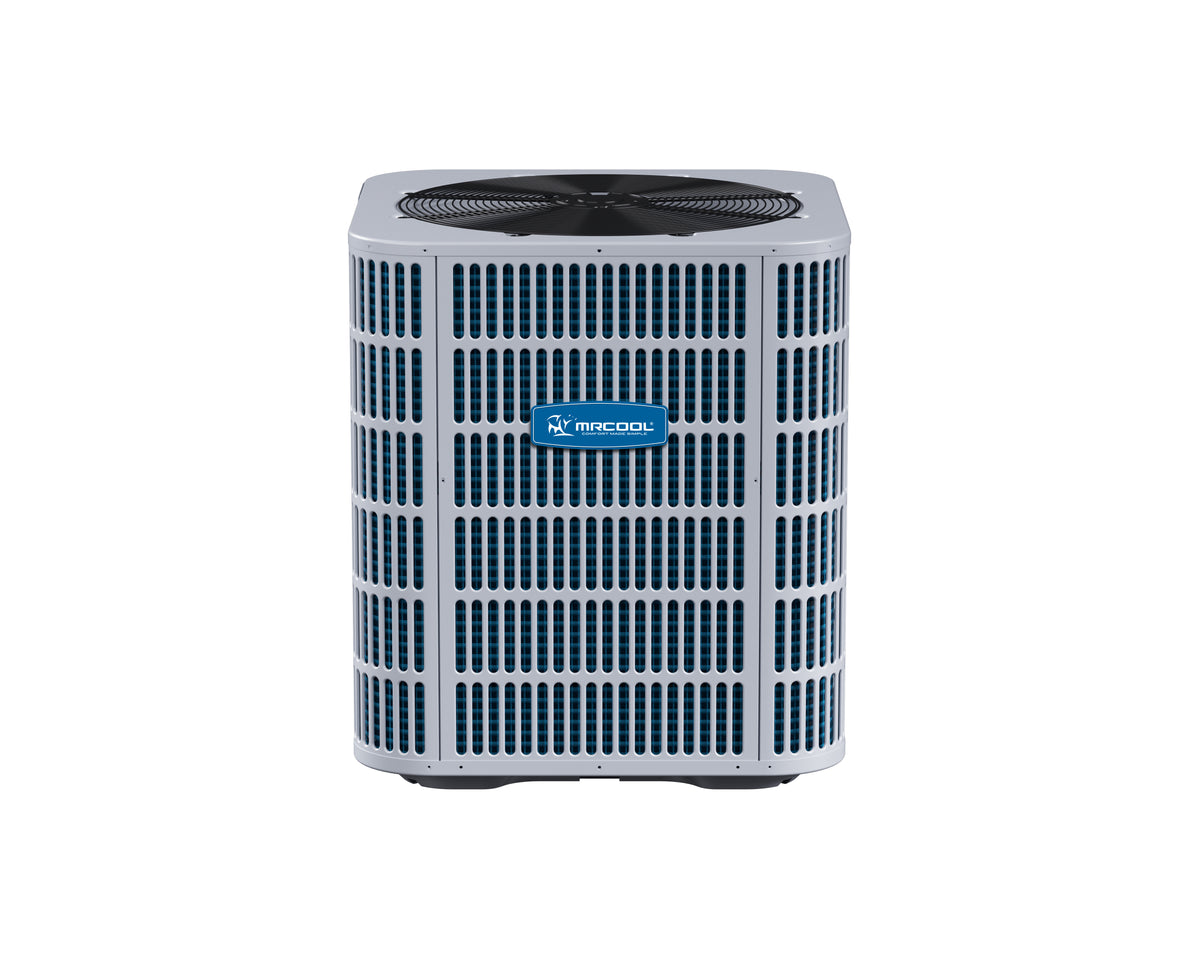

MRCOOL 3 Ton 15 SEER2 PRODIRECT Series Heat Pump Condeners
SEER2 15.2 | R410A | 208/230V
- 36000 BTU cooling capacity
- Up to 15.2 SEER2 rated efficiency
- Scroll compressor
- Uses R410A refrigerant
Key Specifications
Product Overview
The 3 Ton PRODIRECT™ Series Heat Pump is a reliable heating and cooling solution for homeowners prioritizing efficiency and performance. It boasts a SEER2 rating of up to 15.2 and uses R410A, a chlorine-free refrigerant. The energy-efficient compressor ensures optimal operation. This system is designed for durability and includes a high-quality condenser with inner-groove copper tubes and aluminum fins. It features service valves for sweat connections and easy-access gauge ports to simplify maintenance tasks. The 36K PRODIRECT™ heat pump is equipped with high and low-pressure switches for secure operation. With a sound control top design, it operates at a low noise level of 73 decibels, similar to that of a dishwasher, creating a peaceful environment in your home. The compact design makes installation straightforward and transportation easy. The wire fan discharge grille and steel louver coil guard also provide added durability. Homeowners have the option to include an additional drier filter as an accessory. The unit is AHRI-certified and ETL-listed, guaranteeing it meets rigorous industry standards. MRCOOL® offers a standard 5-year warranty, with an additional 5-year extended parts and compressor warranty available upon registration. Overall, the 3 Ton PRODIRECT™ Series Heat Pump is a dependable choice for long-term comfort and peace of mind.
Features
- R410A chlorine-free refrigerant
- Energy-efficient compressor
- Internal protection against high temperature motor overload conditions
- AHRI certified and ETL listed
- Unique sound control top design
- Compact design, easy installation and transportation
- High quality condenser with inner-groove copper tube and aluminum fins
- Wire fan discharge grille
Additional specifications
| UPC | 840255585613 |
|---|---|
| Series | PRODIRECT Series 15 SEER2 Heat Pump Condenser |
| Refrigerant charge (oz) | 114 |
| Heating capacity (BTU/h) | 36000 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 23 |
| Max fuse / breaker (A) | 40 |
Documents
Technical Specifications
Performance
| System Type | Split System Heat Pump |
|---|---|
| Capacity | 36000 BTU |
| Compressor / Stages | Scroll |
| SEER2 | 15.2 |
| Sound Level | 73 dBA |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R410A |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 28 x 33 3/16 x 28 |
|---|---|
| Weight | 179 lb |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
